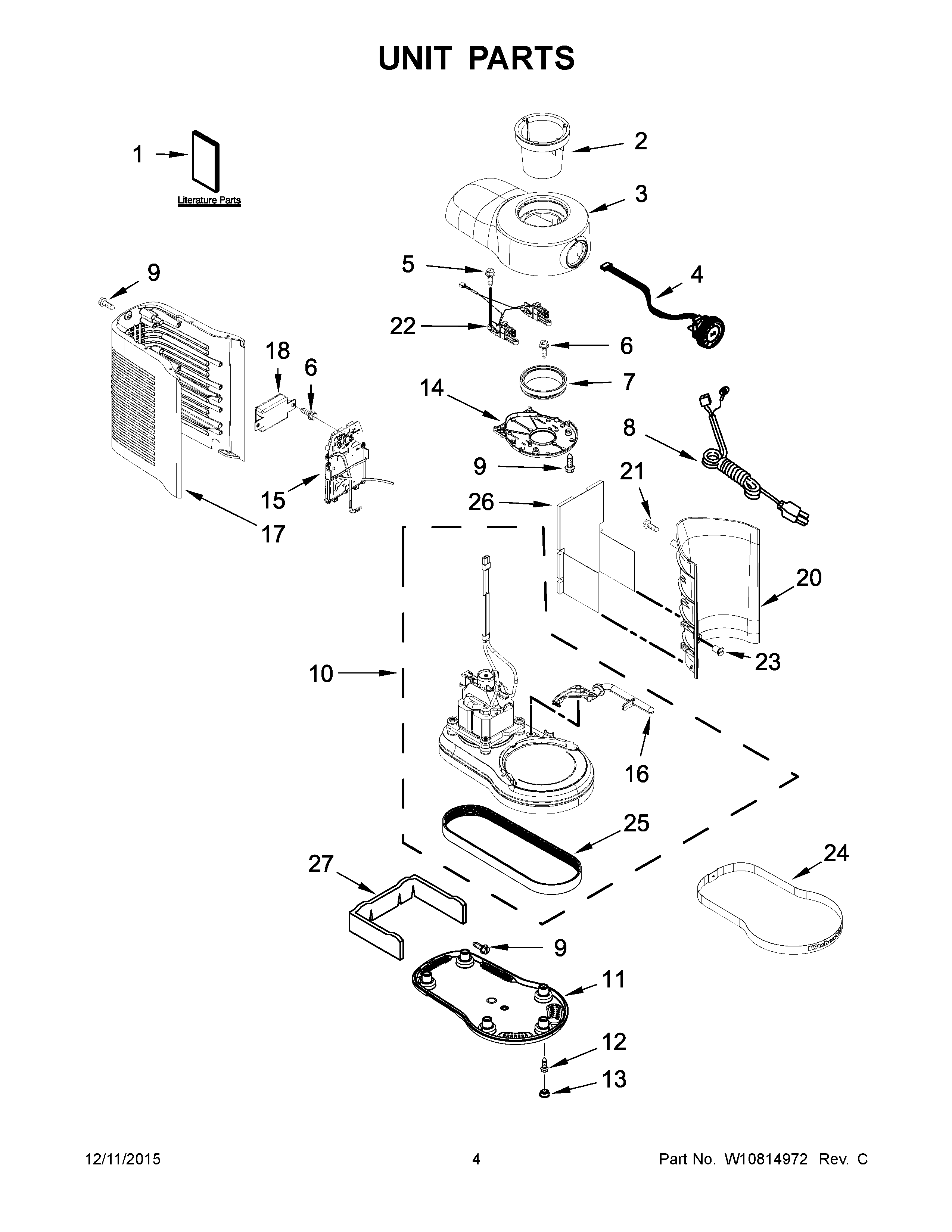

KSB5010CA0 03 – UNIT PARTS

KSB5010CA0 03 – UNIT PARTS

Written by

in

KSB5010CA0 03 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2W10801981 Whirlpool Collar
3AHOUSING, UPPER (FROSTED PEARL)
3BHOUSING, UPPER (ONYX BLACK)
3HOUSING, UPPER (CANDY APPLE)
3CHOUSING, UPPER (SUGAR PEARL)
3DHOUSING, UPPER (SLATE)
4W10625896 Whirlpool Control
5W10853069 Whirlpool Screw
6WPW10068250 Whirlpool Dishwasher Screw
7W11087498 Whirlpool O Ring
8W10643543 Whirlpool Power Cord
9WP3400814 Whirlpool Screw
10CHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (SUGAR PEARL)
10BHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (ONYX BLACK)
10HOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (CANDY APPLE)
10AHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (FROSTED PEARL)
10DHOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (SLATE)
11BASE, BLENDER
12W11164114 Whirlpool Screw
13WPW10524701 Whirlpool Foot Assembly
14BWPL W10707878
14DCOVER, UPPER HOUSING (SLATE)
14COVER, UPPER HOUSING (CANDY APPLE)
14AWPL W10707886
14CW10706406 Whirlpool Housing
15W10625893 Whirlpool Control Board
16W10769702 Whirlpool Lever
17DHOUSING, SURROUND (SLATE)
17AWPL W10707884
17BWPL W10707876
17HOUSING, SURROUND (CANDY APPLE)
17CW10706404 Whirlpool Housing
18W11123146 Whirlpool Speaker
20HOUSING, FRONT
21SCREW
22SWITCH ASSEMBLY, INTERLOCK
23W10768470 Whirlpool Bumper
24W10629023 Whirlpool Trim Band
25W11123130 Whirlpool Belt
26INSULATION, SOUND (FRONT HOUSING)
27W11688428 Whirlpool Insulation
