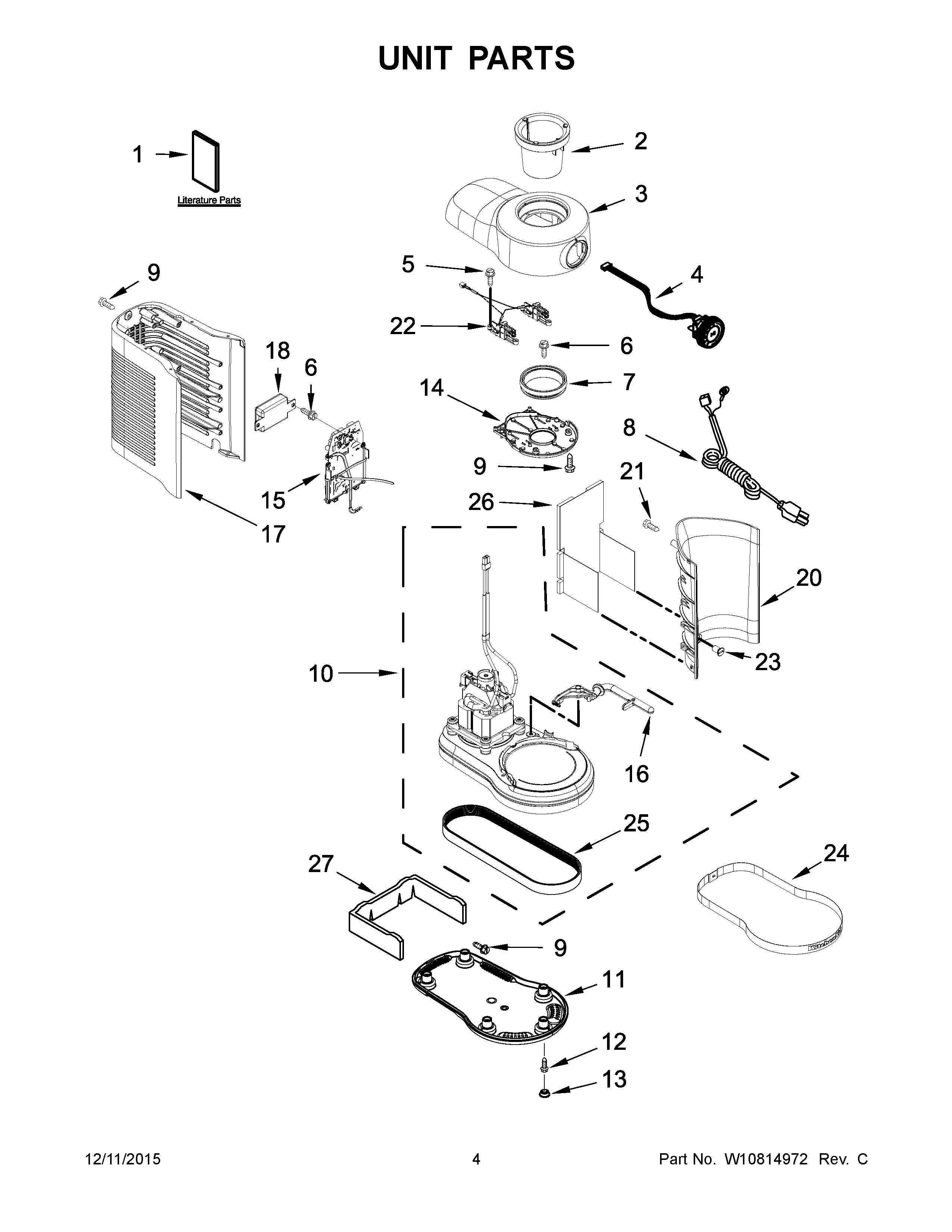

KSB5010SZ0 03 – UNIT PARTSadmin2025-04-26T12:29:41+00:00KSB5010SZ0 03 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | USE & CARE GUIDE |
| 2 | W10801981 Whirlpool Collar |
| 3A | HOUSING, UPPER (FROSTED PEARL) |
| 3B | HOUSING, UPPER (ONYX BLACK) |
| 3 | HOUSING, UPPER (CANDY APPLE) |
| 3C | HOUSING, UPPER (SUGAR PEARL) |
| 3D | HOUSING, UPPER (SLATE) |
| 4 | W10625896 Whirlpool Control |
| 5 | W10853069 Whirlpool Screw |
| 6 | WPW10068250 Whirlpool Dishwasher Screw |
| 7 | W11087498 Whirlpool O Ring |
| 8 | W10643543 Whirlpool Power Cord |
| 9 | WP3400814 Whirlpool Screw |
| 10C | HOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (SUGAR PEARL) |
| 10B | HOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (ONYX BLACK) |
| 10 | HOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (CANDY APPLE) |
| 10A | HOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (FROSTED PEARL) |
| 10D | HOUSING ASSEMBLY, LOWER (INCLUDES 230V MOTOR AND BELT) (SLATE) |
| 11 | BASE, BLENDER |
| 12 | W11164114 Whirlpool Screw |
| 13 | WPW10524701 Whirlpool Foot Assembly |
| 14B | WPL W10707878 |
| 14D | COVER, UPPER HOUSING (SLATE) |
| 14 | COVER, UPPER HOUSING (CANDY APPLE) |
| 14A | WPL W10707886 |
| 14C | W10706406 Whirlpool Housing |
| 15 | W10625893 Whirlpool Control Board |
| 16 | W10769702 Whirlpool Lever |
| 17D | HOUSING, SURROUND (SLATE) |
| 17A | WPL W10707884 |
| 17B | WPL W10707876 |
| 17 | HOUSING, SURROUND (CANDY APPLE) |
| 17C | W10706404 Whirlpool Housing |
| 18 | W11123146 Whirlpool Speaker |
| 20 | HOUSING, FRONT |
| 21 | SCREW |
| 22 | SWITCH ASSEMBLY, INTERLOCK |
| 23 | W10768470 Whirlpool Bumper |
| 24 | W10629023 Whirlpool Trim Band |
| 25 | W11123130 Whirlpool Belt |
| 26 | INSULATION, SOUND (FRONT HOUSING) |
| 27 | W11688428 Whirlpool Insulation |
