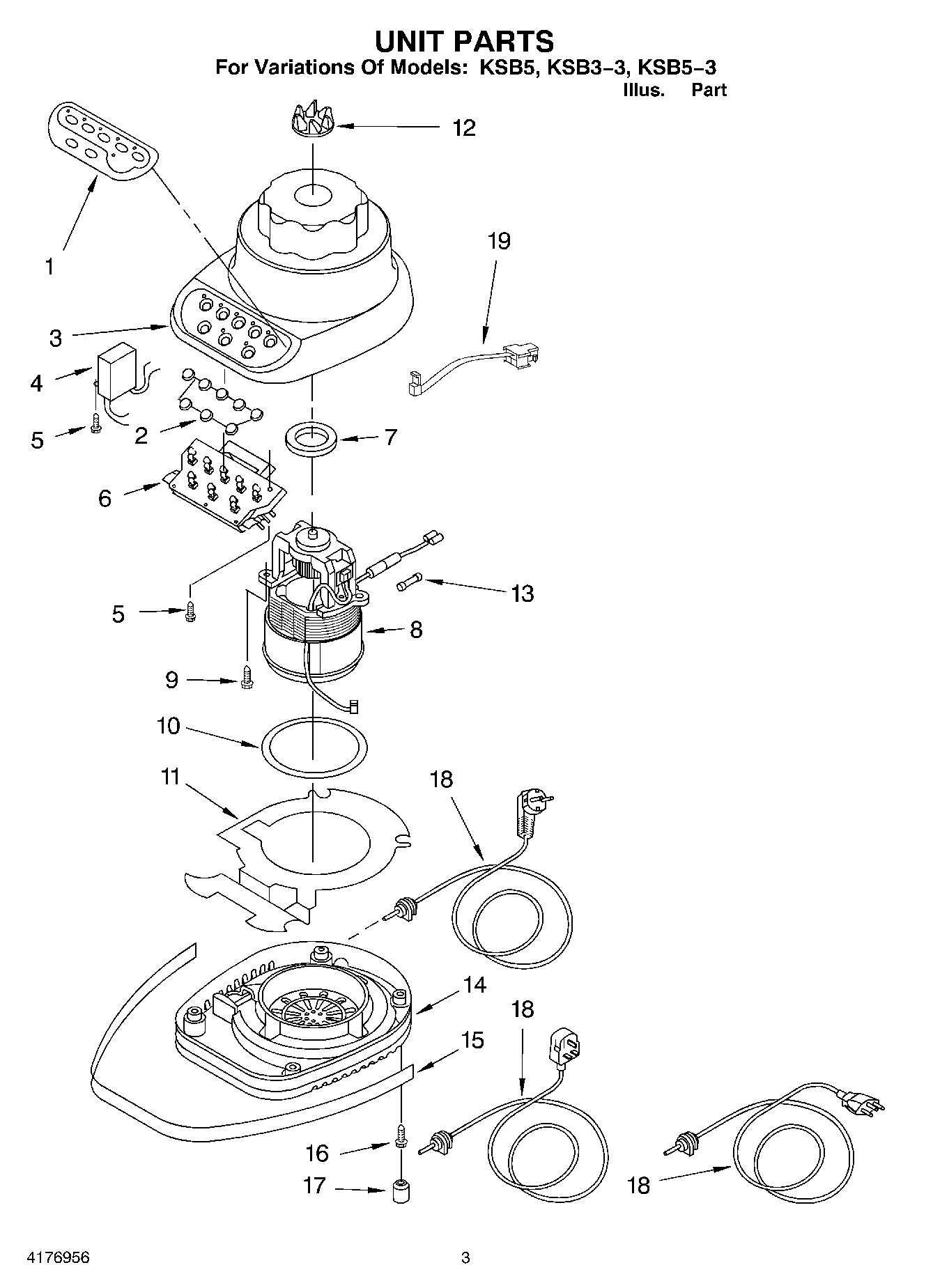

KSB53 03 – SECTION

Products

Position	Product
1	Overlay, Switch
1	Overlay, Switch (3-Speed) (White)
1	Overlay, Switch (5-Speed (Black))
2	WPL 9704072
3	Housing, Upper (Almond Creme)
3	Housing, Upper (White)
3	Housing, Upper (Empire Green)
3	Housing, Upper (Chrome)
3	Housing, Upper (Majestic Yellow)
3	Housing, Upper (Empire Red)
3	Housing, Upper (Imperial Black)
3	Housing, Upper (Cobalt Blue)
4	EMI Filter
5	WP489128 Whirlpool Refrigerator Screw
6	Board, Control (5-Speed 220/240V)
6	Board, Control (5-Speed 110V)
6	Board, Control (3-Speed 110V)
7	Seal, Motor
8	Motor
8	Motor (240 Volt)
9	Screw
10	O-Ring
11	Barrier, Ventilation
12	WP9704230 Whirlpool Coupling
13	Fuse, 250V/8A (If Needed)
14	Base (Almond Creme)
14	Base (Empire Green)
14	Base (Onyx Black)
14	Base (White)
14	WPL 3184542
14	WPL 3184543
14	Base (Cobalt Blue)
15	WPL 3184613
15	Band, Trim
15	WPL 9704283
15	WPL 3184611
15	WPL 3184612
16	Screw
17	Foot, Base
18	WPL 9705061
18	WPL 9705060
18	WPL 9704275
18	WPL 9704273
18	WPL 9704274
19	WPL 9703231
