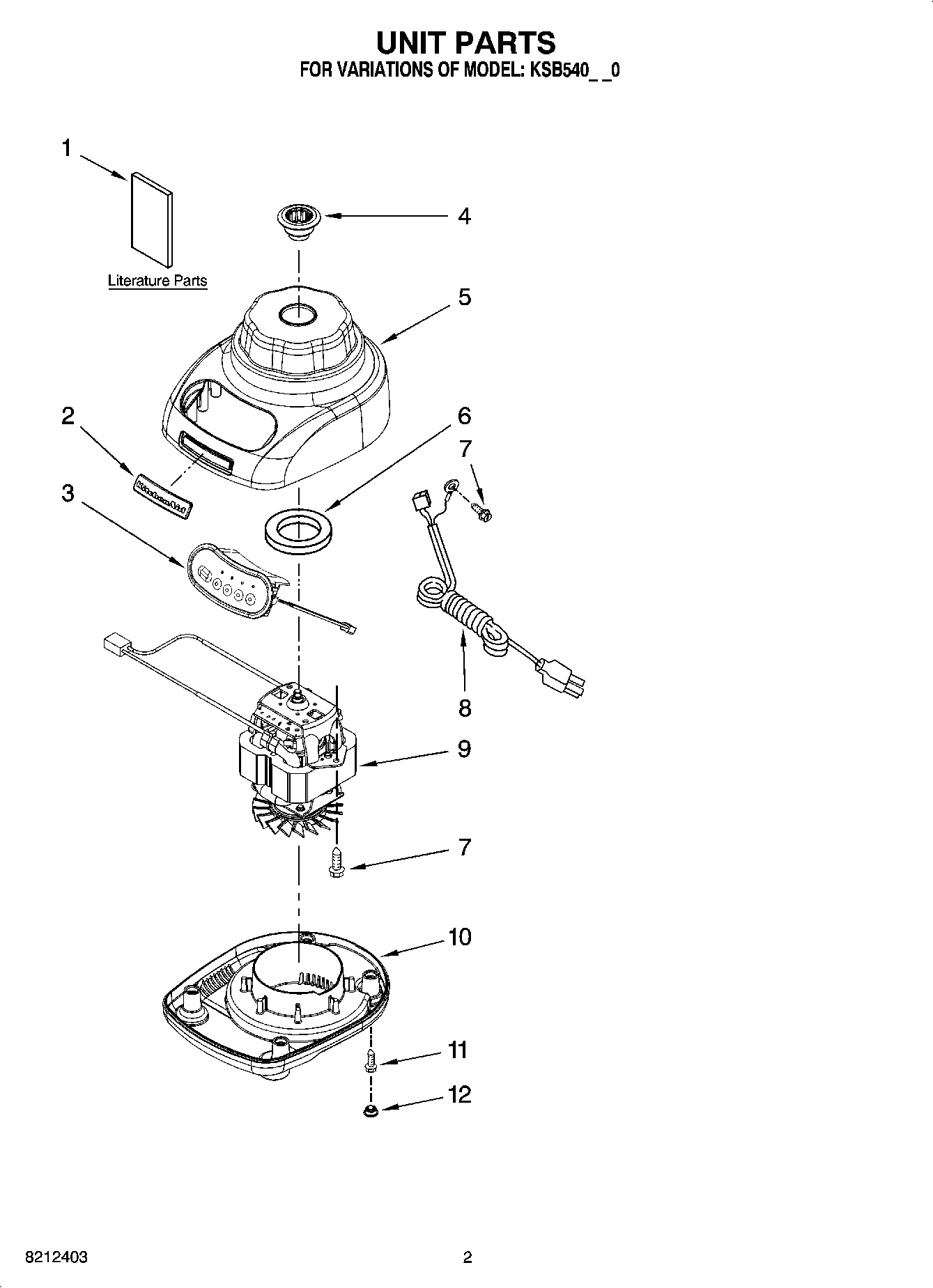

KSB540ER0 01 – UNIT PARTS

KSB540ER0 01 – UNIT PARTS

Products

PositionProduct
1Repair Parts List
1Use & Care, Trilin
2W10161493 Whirlpool Nameplate
3Control Assembly (Incl. Overlay) (Silver)
4WPW10279256 Whirlpool Blender Drive Coupler
5WP9709259 Whirlpool Housing
5WP9708896 Whirlpool Housing Assembly
5WP9709226 Whirlpool Housing
6WP9709366 Whirlpool Seal
7WPW10068250 Whirlpool Dishwasher Screw
8W11197488 Whirlpool Power Cord
89708917 Whirlpool Power Cord
9Motor, 120V - 3Spd
10WP9708937 Whirlpool Base
10WP9709917 Whirlpool Base
10WP9708890 Whirlpool Base
11W11164114 Whirlpool Screw
12WPW10524701 Whirlpool Foot Assembly
