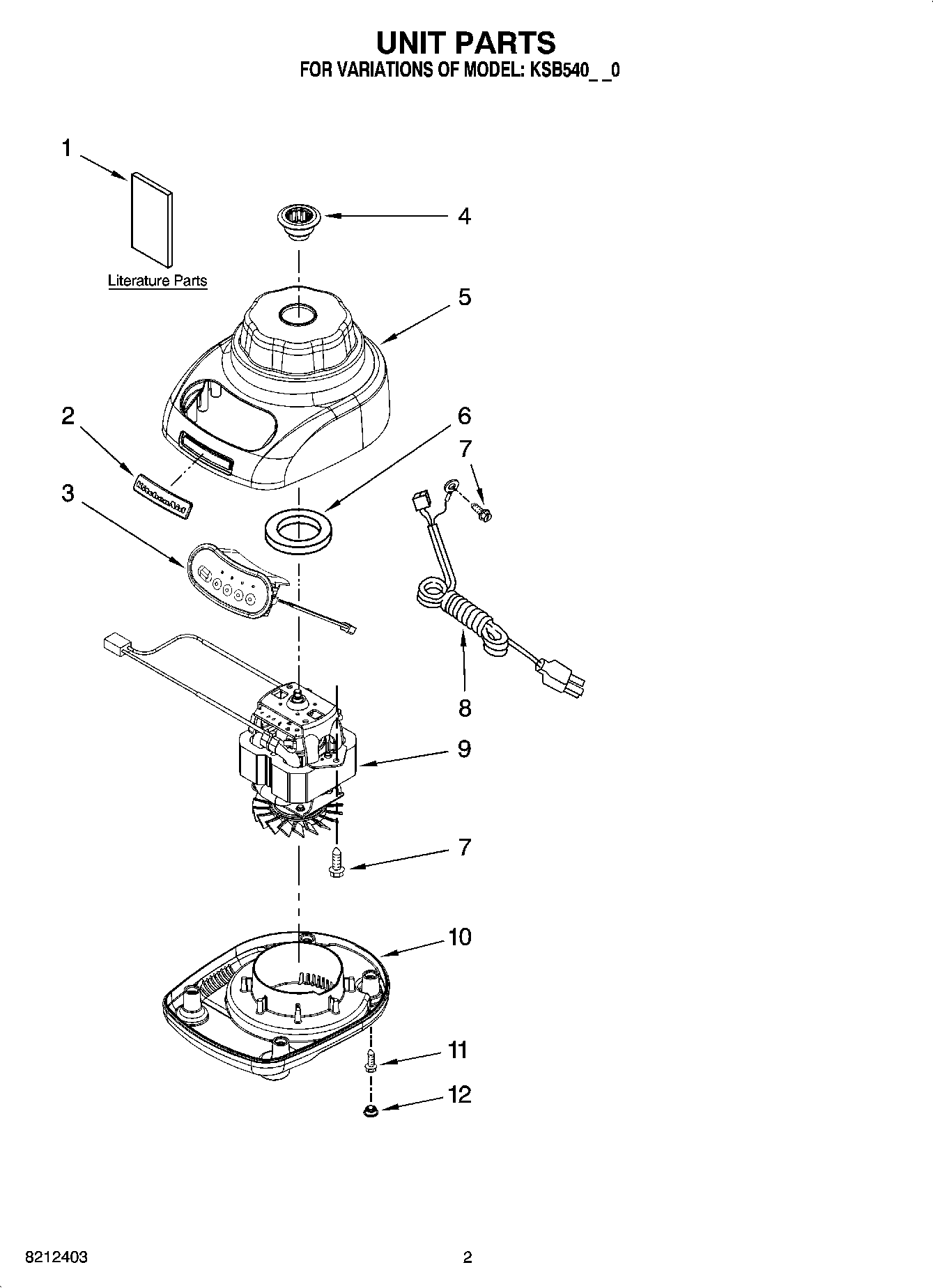

KSB540OB0 01 – UNIT PARTS
Written by
in
KSB540OB0 01 – UNIT PARTS
Products
Position
Product
1
Repair Parts List
1
Use & Care, Trilin
2
W10161493 Whirlpool Nameplate
3
Control Assembly (Incl. Overlay) (Silver)
4
WPW10279256 Whirlpool Blender Drive Coupler
5
WP9709259 Whirlpool Housing
5
WP9708896 Whirlpool Housing Assembly
5
WP9709226 Whirlpool Housing
6
WP9709366 Whirlpool Seal
7
WPW10068250 Whirlpool Dishwasher Screw
8
W11197488 Whirlpool Power Cord
8
9708917 Whirlpool Power Cord
9
Motor, 120V – 3Spd
10
WP9708937 Whirlpool Base
10
WP9709917 Whirlpool Base
10
WP9708890 Whirlpool Base
11
W11164114 Whirlpool Screw
12
WPW10524701 Whirlpool Foot Assembly
←
