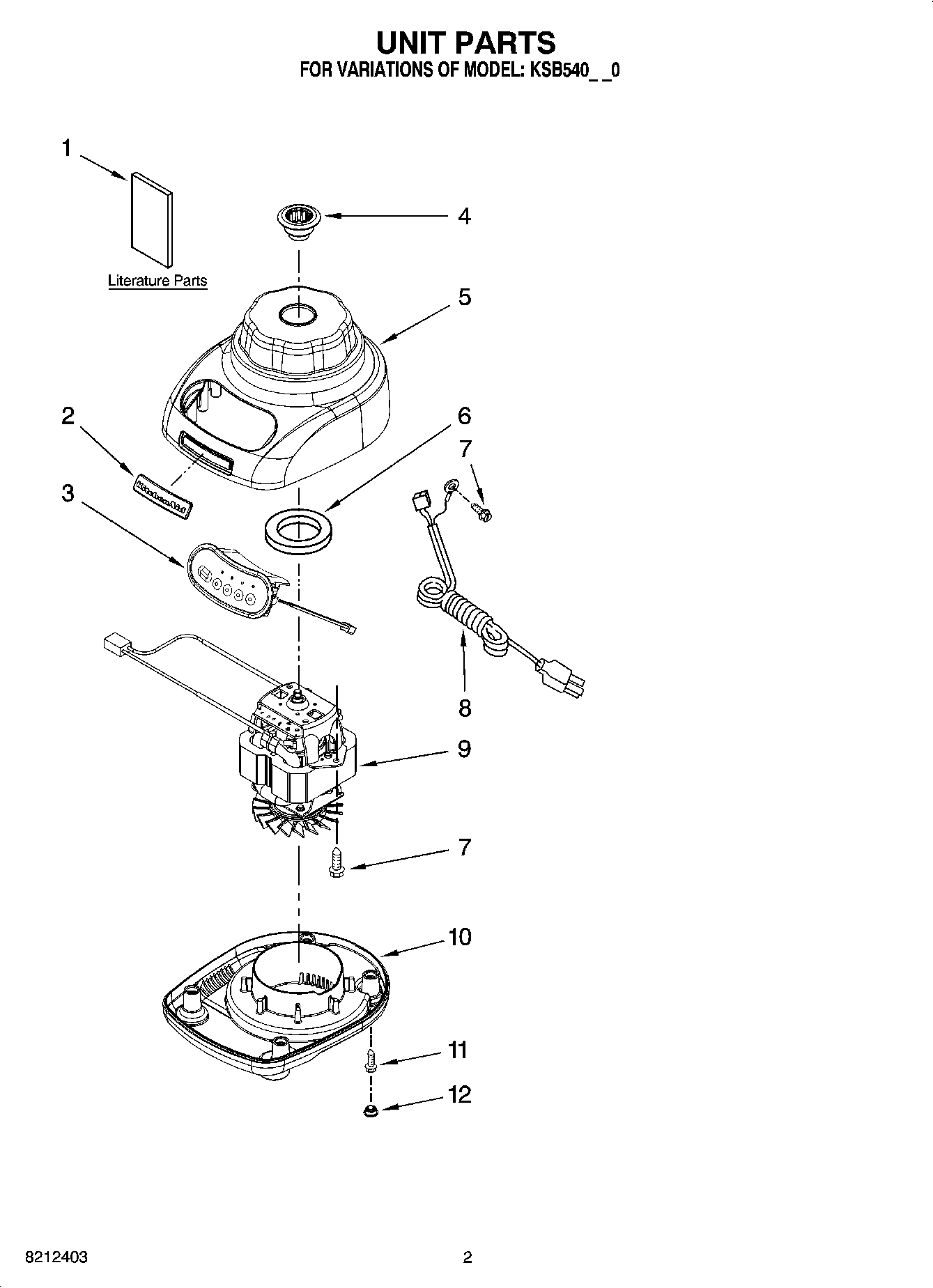

KSB540WH0 01 – UNIT PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care, Trilin
2	W10161493 Whirlpool Nameplate
3	Control Assembly (Incl. Overlay) (Silver)
4	WPW10279256 Whirlpool Blender Drive Coupler
5	WP9709259 Whirlpool Housing
5	WP9708896 Whirlpool Housing Assembly
5	WP9709226 Whirlpool Housing
6	WP9709366 Whirlpool Seal
7	WPW10068250 Whirlpool Dishwasher Screw
8	W11197488 Whirlpool Power Cord
8	9708917 Whirlpool Power Cord
9	Motor, 120V - 3Spd
10	WP9708937 Whirlpool Base
10	WP9709917 Whirlpool Base
10	WP9708890 Whirlpool Base
11	W11164114 Whirlpool Screw
12	WPW10524701 Whirlpool Foot Assembly
