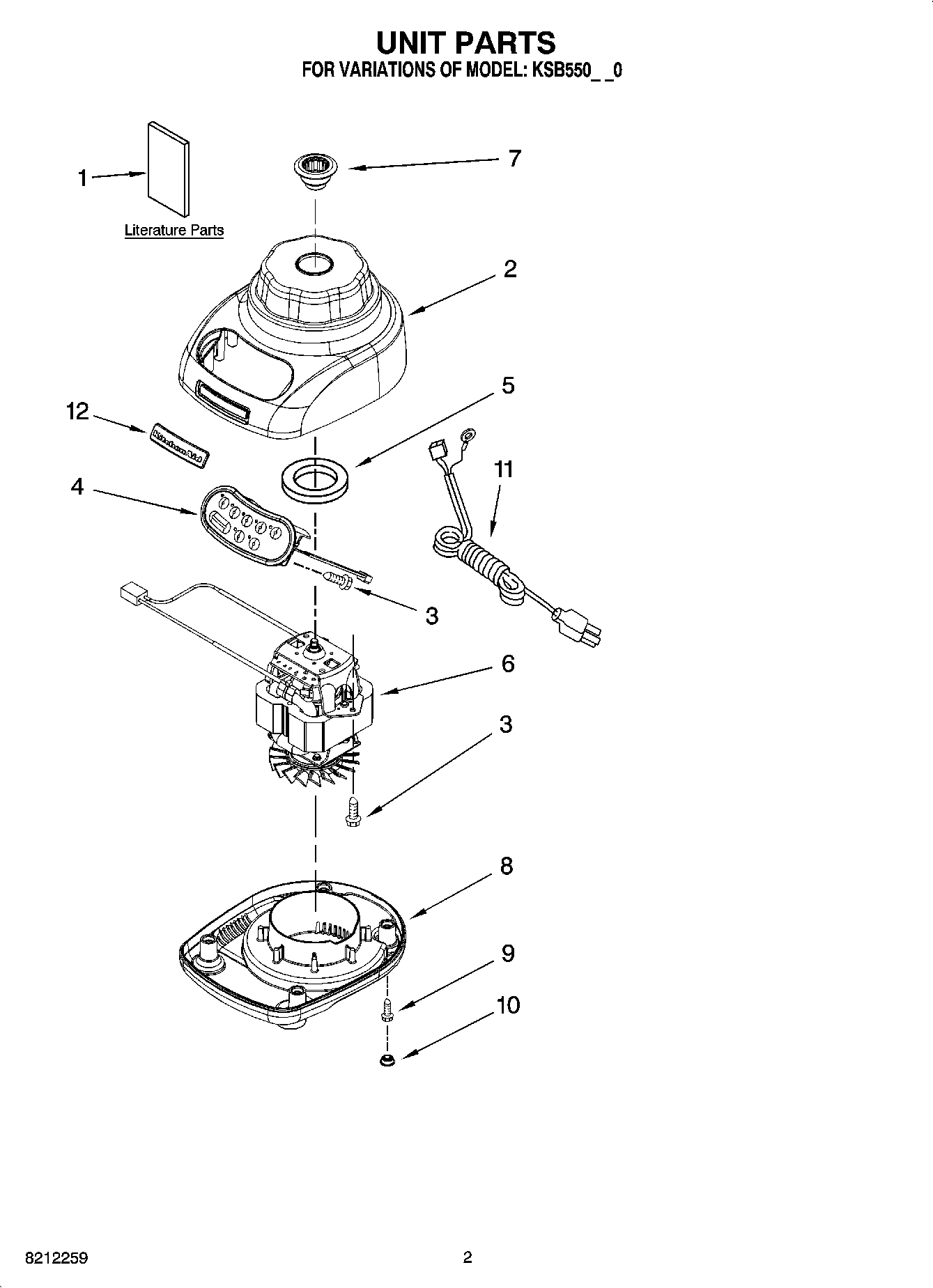

KSB550GC0 01 – UNIT PARTS

Products

Position	Product
1	Use & Care, Trilin
1	Repair Parts List
2	Housing, Upper (Gloss Cinnamon)
2	Housing, Upper (Tangerine)
2	Housing, Upper (Metallic Chrome)
2	Housing, Upper (Blue Willow)
2	WP9708896 Whirlpool Housing Assembly
2	WP9709226 Whirlpool Housing
2	W10438995 Whirlpool Housing
2	WP9709259 Whirlpool Housing
3	WP489128 Whirlpool Refrigerator Screw
4	Control Assembly (Incl. Overlay) (Silver)
4	Control Assembly (Incl. Overlay) (Black)
5	WP9709366 Whirlpool Seal
6	WPW10225872 Whirlpool Motor
7	WPW10279256 Whirlpool Blender Drive Coupler
8	WP9709917 Whirlpool Base
8	WP9709504 Whirlpool Base Assembly
8	WP9709503 Whirlpool Base
8	Base (Gloss Cinnamon)
8	WP9709502 Whirlpool Base Assembly
8	WP9708937 Whirlpool Base
8	Base (Blue Willow)
8	WP9708890 Whirlpool Base
9	W11164114 Whirlpool Screw
10	WPW10524701 Whirlpool Foot Assembly
11	9708917 Whirlpool Power Cord
11	W11197488 Whirlpool Power Cord
12	W10161493 Whirlpool Nameplate
