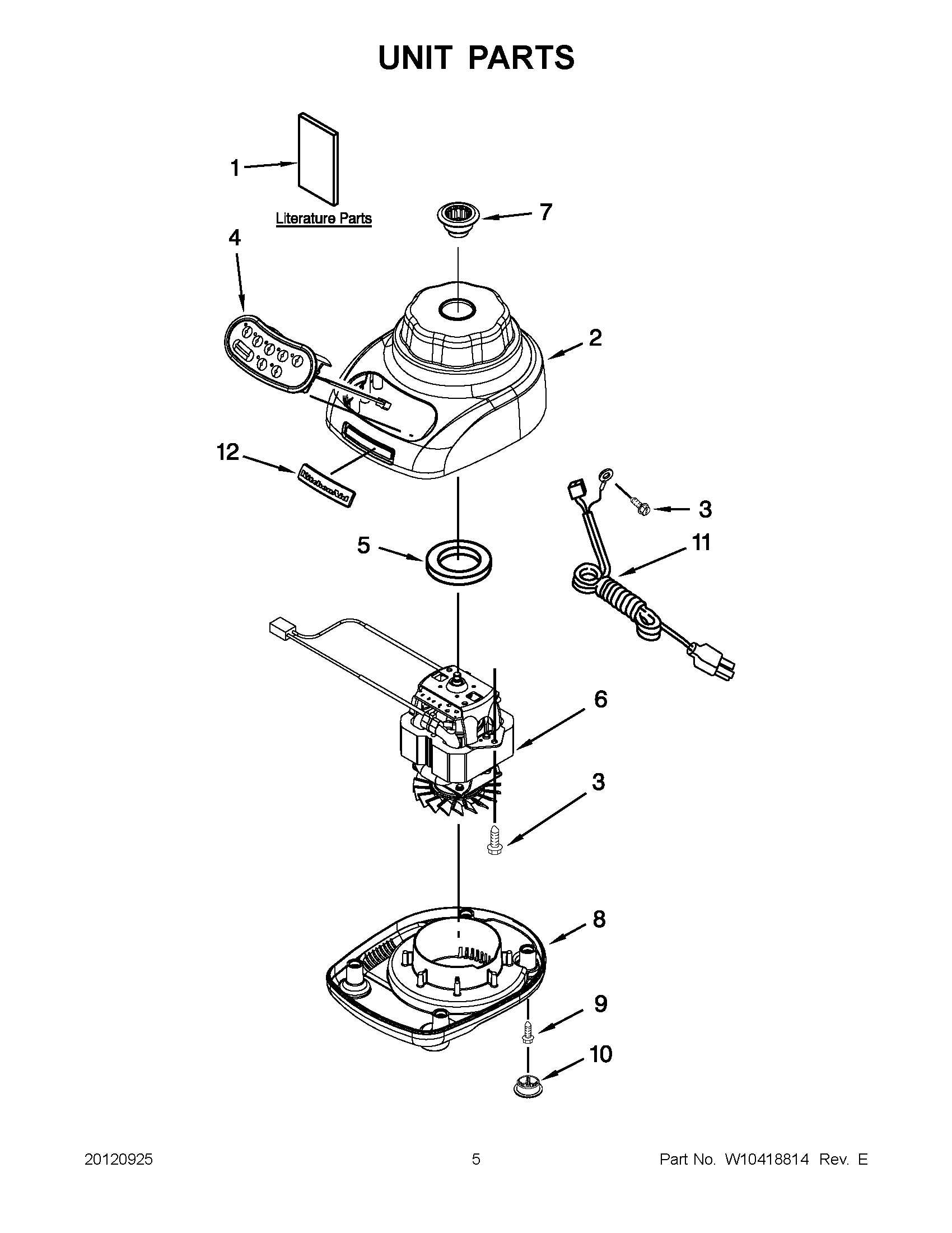

KSB560CL1 02 – UNIT PARTS

Products

Position	Product
1	USE AND CARE GUIDE
2	WP9709226 Whirlpool Housing
2	HOUSING, UPPER (SILVER METALLIC])
2	WP9709259 Whirlpool Housing
2	WPW10153370 Whirlpool Housing
2	Housing, Upper (Metallic Chrome)
2	Housing, Upper (Tangerine)
2	Housing, Upper (Gloss Cinnamon)
2	Housing, Upper (Blue Willow)
2	HOUSING, UPPER (BUTTERCUP)
2	W10438995 Whirlpool Housing
2	WPW10153367 Whirlpool Housing
2	HOUSING, UPPER (LIQUID GRAPHITE)
2	HOUSING, UPPER (CONTOUR SILVER)
2	HOUSING, UPPER (RASPBERRY ICE)
2	HOUSING, UPPER (ESPRESSO)
2	W10509261 Whirlpool Housing
2	HOUSING, UPPER (BOYSENBERRY)
2	WP9708896 Whirlpool Housing Assembly
2	Housing, Upper (Pear)
2	HOUSING, UPPER (GREEN APPLE)
3	WPW10068250 Whirlpool Dishwasher Screw
4	Control Assembly (Incl. Overlay) (Black)
4	Control Assembly (Incl. Overlay) (Silver)
5	WP9709366 Whirlpool Seal
6	WPW10225872 Whirlpool Motor
7	WPW10279256 Whirlpool Blender Drive Coupler
8	WPW10153630 Whirlpool Base
8	WPL W10481519
8	WP9709917 Whirlpool Base
8	Base (Gloss Cinnamon)
8	WPW10450400 Whirlpool Base
8	BASE (CONTOUR SILVER)
8	WPL W10518656
8	Base (Blue Willow)
8	Base (Buttercup)
8	Base (Storm Grey)
8	Base (Pear)
8	WP9709504 Whirlpool Base Assembly
8	WP9709503 Whirlpool Base
8	WPW10450399 Whirlpool Base Assembly
8	WP9709502 Whirlpool Base Assembly
8	WPW10391604 Whirlpool Base
8	WP9708937 Whirlpool Base
8	WPW10153962 Whirlpool Base
8	W10253204 Whirlpool Base
8	WP9708890 Whirlpool Base
9	W11164114 Whirlpool Screw
10	WPW10524701 Whirlpool Foot Assembly
11	9708917 Whirlpool Power Cord
11	W11197488 Whirlpool Power Cord
12	W10161493 Whirlpool Nameplate
