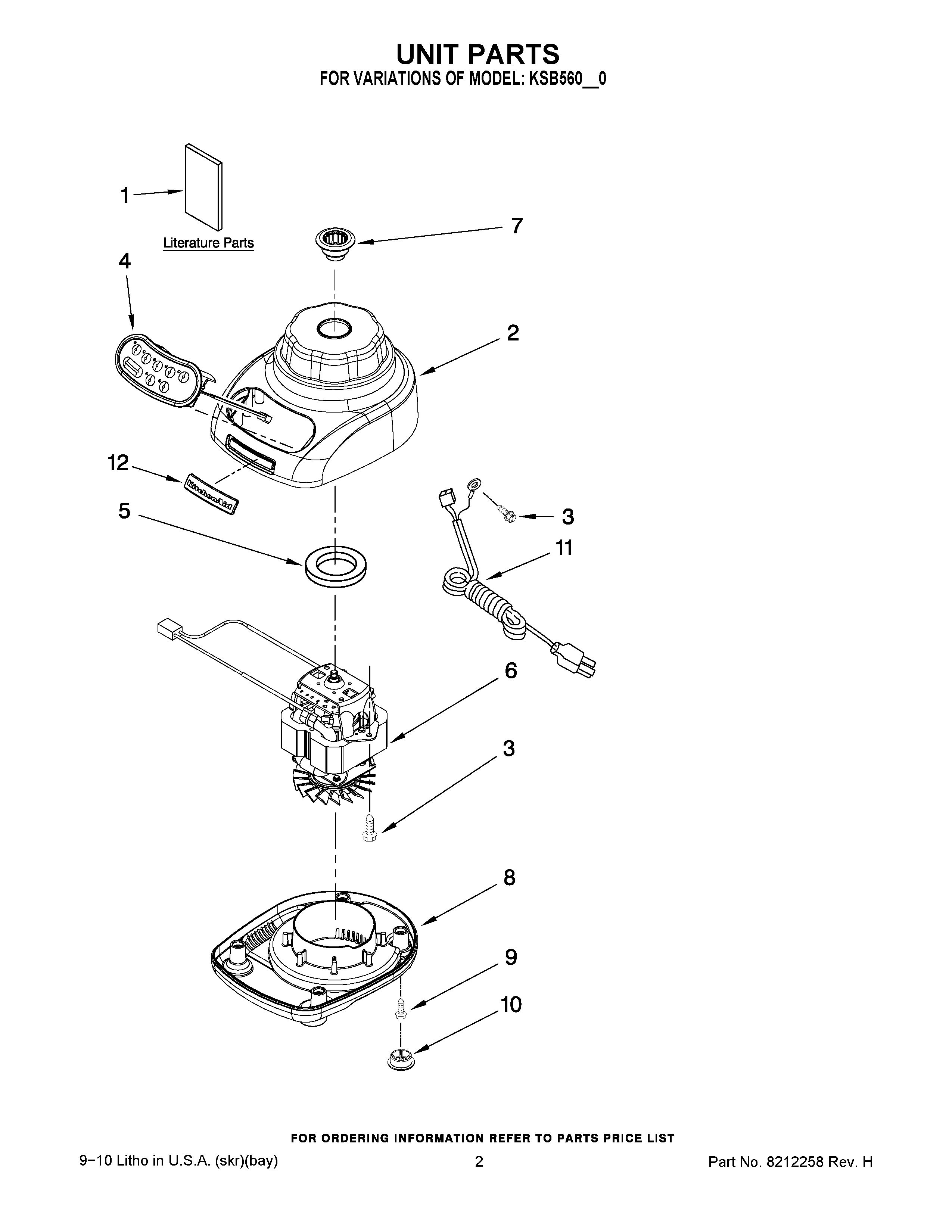

KSB560CV0 01 – UNIT PARTSadmin2025-04-26T12:32:01+00:00KSB560CV0 01 – UNIT PARTS
Products
| Position | Product |
|---|
| 1 | Use & Care, Trilin |
| 1 | Repair Parts List |
| 2 | Housing, Upper (Tangerine) |
| 2 | Housing, Upper (Metallic Chrome) |
| 2 | WPW10153370 Whirlpool Housing |
| 2 | WP9709259 Whirlpool Housing |
| 2 | WP9709226 Whirlpool Housing |
| 2 | W10438995 Whirlpool Housing |
| 2 | Housing, Upper (Blue Willow) |
| 2 | HOUSING, UPPER (BUTTERCUP) |
| 2 | HOUSING, UPPER (SILVER METALLIC]) |
| 2 | WP9708896 Whirlpool Housing Assembly |
| 2 | Housing, Upper (Aqua Sky) |
| 2 | Housing, Upper (Caviar) |
| 2 | Housing, Upper (Pear) |
| 2 | HOUSING, UPPER (BOYSENBERRY) |
| 2 | HOUSING, UPPER (YELLOW PEPPER) |
| 2 | HOUSING, UPPER (CONTOUR SILVER) |
| 2 | Housing, Upper (Gloss Cinnamon) |
| 3 | WPW10068250 Whirlpool Dishwasher Screw |
| 4 | Control Assembly (Incl. Overlay) (Black) |
| 4 | Control Assembly (Incl. Overlay) (Silver) |
| 5 | WP9709366 Whirlpool Seal |
| 6 | WPW10225872 Whirlpool Motor |
| 7 | WPW10279256 Whirlpool Blender Drive Coupler |
| 8 | BASE (YELLOW PEPPER) |
| 8 | WPW10153630 Whirlpool Base |
| 8 | Base (Gloss Cinnamon) |
| 8 | Base (Blue Willow) |
| 8 | Base (Buttercup) |
| 8 | Base (Caviar) |
| 8 | Base (Aqua Sky) |
| 8 | BASE (CONTOUR SILVER) |
| 8 | Base (Pear) |
| 8 | Base (Storm Grey) |
| 8 | WP9709917 Whirlpool Base |
| 8 | WP9709504 Whirlpool Base Assembly |
| 8 | WP9708890 Whirlpool Base |
| 8 | W10253204 Whirlpool Base |
| 8 | WP9708937 Whirlpool Base |
| 8 | WP9709502 Whirlpool Base Assembly |
| 8 | WP9709503 Whirlpool Base |
| 9 | W11164114 Whirlpool Screw |
| 10 | WPW10524701 Whirlpool Foot Assembly |
| 11 | W11197488 Whirlpool Power Cord |
| 11 | 9708917 Whirlpool Power Cord |
| 12 | W10161493 Whirlpool Nameplate |
