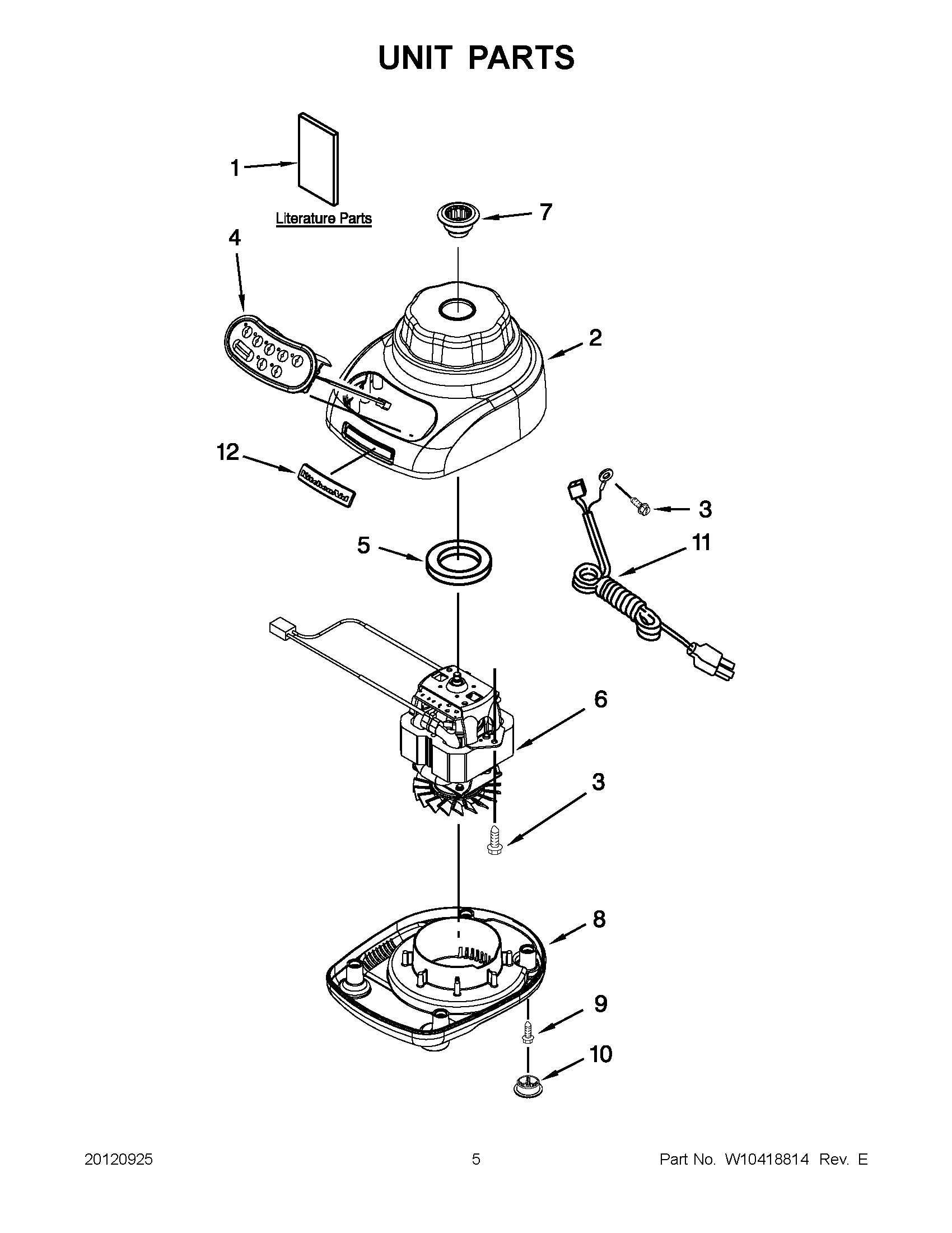

KSB560TG1 02 – UNIT PARTS

KSB560TG1 02 – UNIT PARTS

Written by

in

KSB560TG1 02 – UNIT PARTS

Products

PositionProduct
1USE AND CARE GUIDE
2WP9709226 Whirlpool Housing
2HOUSING, UPPER (SILVER METALLIC])
2WP9709259 Whirlpool Housing
2WPW10153370 Whirlpool Housing
2Housing, Upper (Metallic Chrome)
2Housing, Upper (Tangerine)
2Housing, Upper (Gloss Cinnamon)
2Housing, Upper (Blue Willow)
2HOUSING, UPPER (BUTTERCUP)
2W10438995 Whirlpool Housing
2WPW10153367 Whirlpool Housing
2HOUSING, UPPER (LIQUID GRAPHITE)
2HOUSING, UPPER (CONTOUR SILVER)
2HOUSING, UPPER (RASPBERRY ICE)
2HOUSING, UPPER (ESPRESSO)
2W10509261 Whirlpool Housing
2HOUSING, UPPER (BOYSENBERRY)
2WP9708896 Whirlpool Housing Assembly
2Housing, Upper (Pear)
2HOUSING, UPPER (GREEN APPLE)
3WPW10068250 Whirlpool Dishwasher Screw
4Control Assembly (Incl. Overlay) (Black)
4Control Assembly (Incl. Overlay) (Silver)
5WP9709366 Whirlpool Seal
6WPW10225872 Whirlpool Motor
7WPW10279256 Whirlpool Blender Drive Coupler
8WPW10153630 Whirlpool Base
8WPL W10481519
8WP9709917 Whirlpool Base
8Base (Gloss Cinnamon)
8WPW10450400 Whirlpool Base
8BASE (CONTOUR SILVER)
8WPL W10518656
8Base (Blue Willow)
8Base (Buttercup)
8Base (Storm Grey)
8Base (Pear)
8WP9709504 Whirlpool Base Assembly
8WP9709503 Whirlpool Base
8WPW10450399 Whirlpool Base Assembly
8WP9709502 Whirlpool Base Assembly
8WPW10391604 Whirlpool Base
8WP9708937 Whirlpool Base
8WPW10153962 Whirlpool Base
8W10253204 Whirlpool Base
8WP9708890 Whirlpool Base
9W11164114 Whirlpool Screw
10WPW10524701 Whirlpool Foot Assembly
119708917 Whirlpool Power Cord
11W11197488 Whirlpool Power Cord
12W10161493 Whirlpool Nameplate
