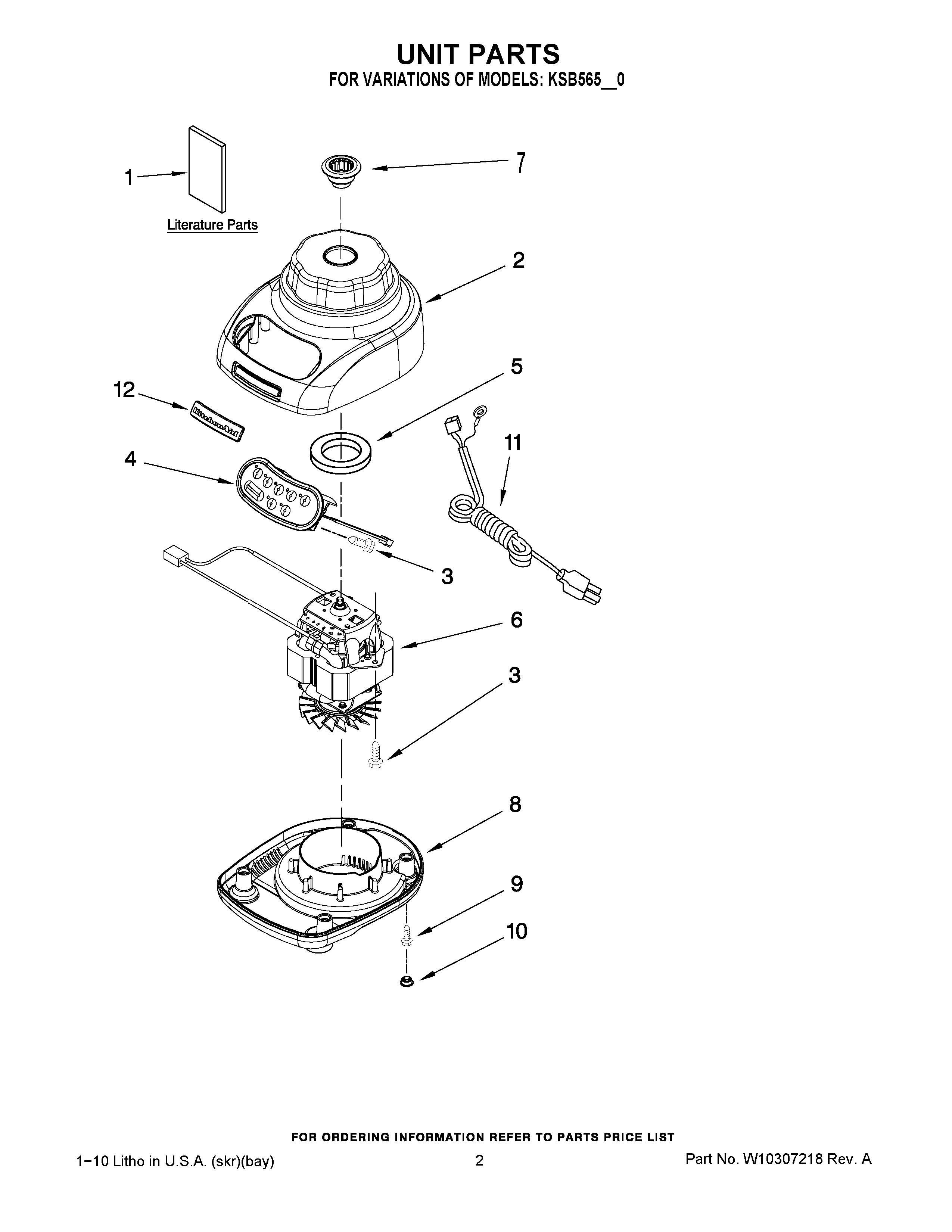

KSB565GC0 01 – UNIT PARTS

Products

Position	Product
1	REPAIR PARTS LIST
1	USE & CARE GUIDE
2	WP9709259 Whirlpool Housing
2	WP9708896 Whirlpool Housing Assembly
2	WPW10153370 Whirlpool Housing
2	Housing, Upper (Gloss Cinnamon)
2	HOUSING, UPPER (SILVER METALLIC])
2	HOUSING, UPPER (COBALT BLUE)
2	WP9709226 Whirlpool Housing
3	WPW10068250 Whirlpool Dishwasher Screw
4	Control Assembly (Incl. Overlay) (Silver)
5	WP9709366 Whirlpool Seal
6	WPW10225872 Whirlpool Motor
7	WPW10279256 Whirlpool Blender Drive Coupler
8	WPW10153582 Whirlpool Base Assembly
8	Base (Gloss Cinnamon)
8	WPW10153630 Whirlpool Base
8	WP9709917 Whirlpool Base
8	WP9708937 Whirlpool Base
8	WP9708890 Whirlpool Base
9	W11164114 Whirlpool Screw
10	WPW10524701 Whirlpool Foot Assembly
11	9708917 Whirlpool Power Cord
11	W11197488 Whirlpool Power Cord
12	W10161493 Whirlpool Nameplate
