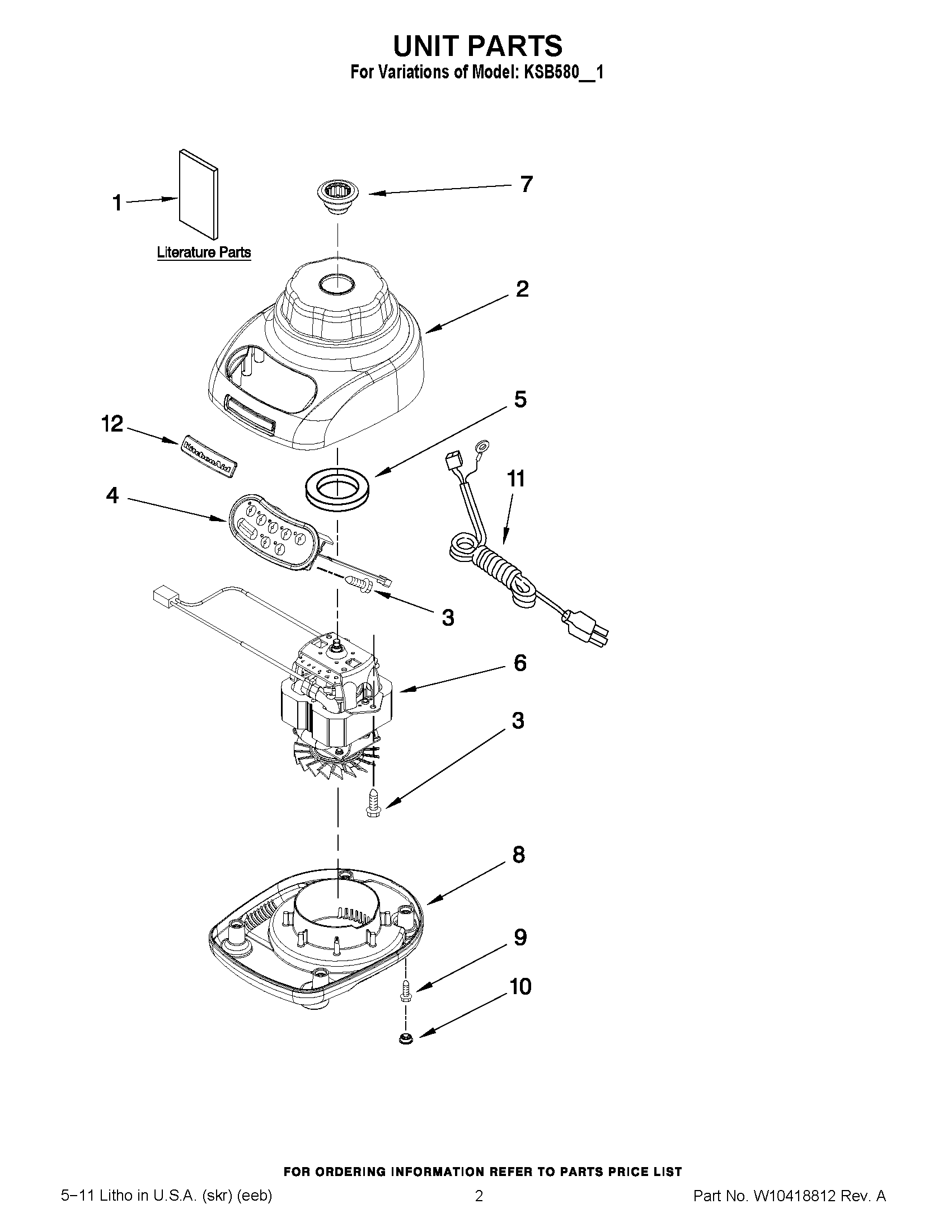

KSB580CR1 01 – UNIT PARTS

Products

Position	Product
1	REPAIR PARTS LIST
1	USE AND CARE GUIDE
2	HOUSING, UPPER (NICKEL)
2	HOUSING, UPPER (CHROME)
3	WPW10068250 Whirlpool Dishwasher Screw
4	Control Assembly (Incl. Overlay) (Black)
5	WP9709366 Whirlpool Seal
6	WPW10225872 Whirlpool Motor
7	WPW10279256 Whirlpool Blender Drive Coupler
8	WP9708937 Whirlpool Base
9	W11164114 Whirlpool Screw
10	WPW10524701 Whirlpool Foot Assembly
11	W11197488 Whirlpool Power Cord
12	W10161493 Whirlpool Nameplate
