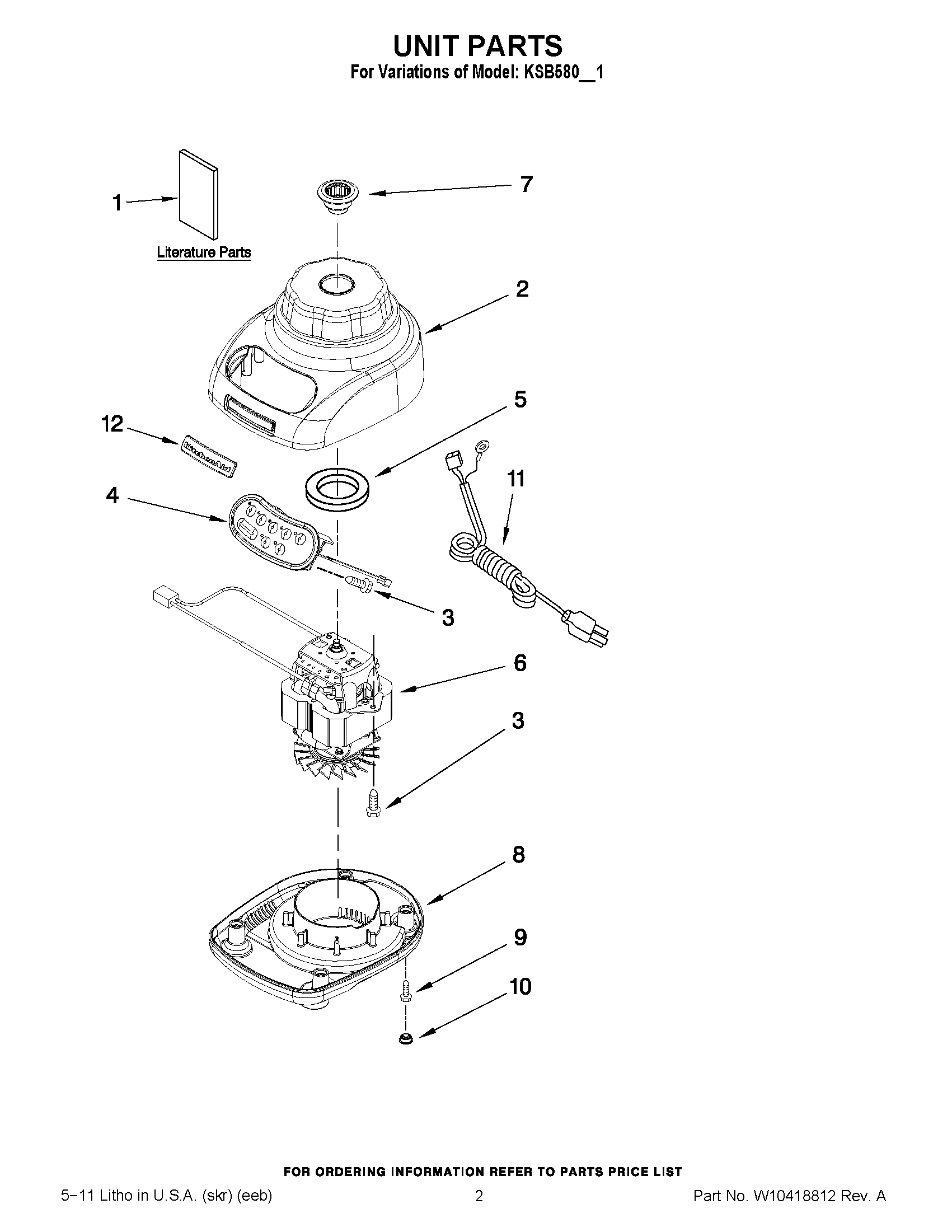

KSB580NK1 01 – UNIT PARTS

Products

PositionProduct
1REPAIR PARTS LIST
1USE AND CARE GUIDE
2HOUSING, UPPER (NICKEL)
2HOUSING, UPPER (CHROME)
3WPW10068250 Whirlpool Dishwasher Screw
4Control Assembly (Incl. Overlay) (Black)
5WP9709366 Whirlpool Seal
6WPW10225872 Whirlpool Motor
7WPW10279256 Whirlpool Blender Drive Coupler
8WP9708937 Whirlpool Base
9W11164114 Whirlpool Screw
10WPW10524701 Whirlpool Foot Assembly
11W11197488 Whirlpool Power Cord
12W10161493 Whirlpool Nameplate
