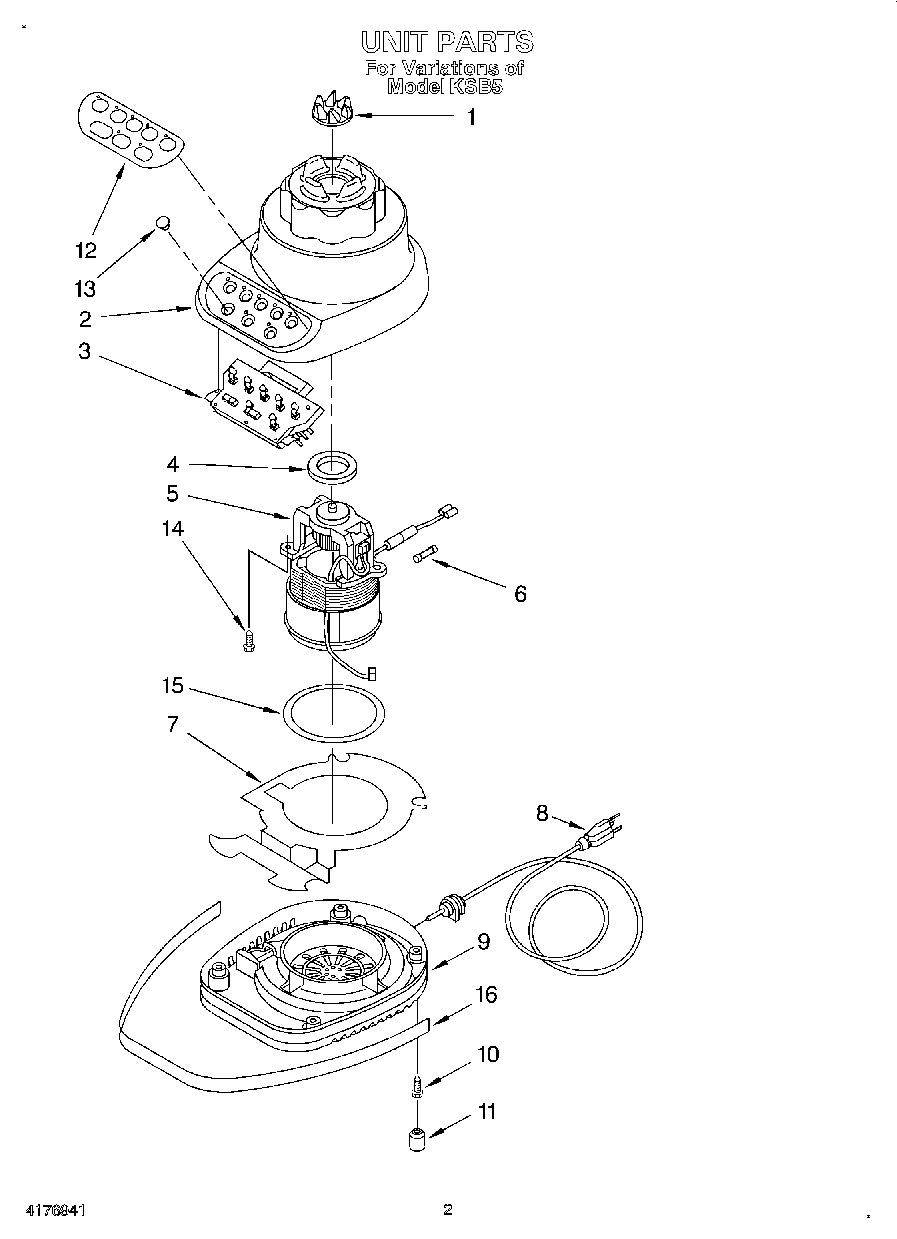

KSB5BU0 02 – SECTION

Products

Position	Product
1	Coupling, Drive
2	Housing, Upper (White)
2	Housing, Upper (Cobalt Blue)
2	Housing, Upper (Empire Green)
2	Housing, Upper (Onyx Black (Also order item 12 in color that matches housing))
2	Housing, Upper (Almond Creme)
3	Board, Control
4	Seal, Motor
5	Motor
6	Fuse, 250V/8A (If Needed)
7	Barrier, Ventilation
8	Cord, Power (White)
8	Cord, Power (Black)
9	Base (Cobalt Blue)
9	Base (Onyx Black)
9	Base (Almond Creme)
9	Base (White)
9	Base (Empire Green)
10	Screw
11	Foot, Base
12	Overlay, Switch (5-Speed) (Cobalt Blue)
12	Overlay, Switch (5-Speed) (Empire Green)
12	Overlay, Switch (5-Speed (Black))
12	Overlay, Switch (5-Speed) (White)
12	Overlay, Switch (5-Speed) (Almond Creme)
13	Button, Switch
14	Screw
15	O-Ring
16	WPL 3184614
16	WPL 3184613
16	WPL 3184612
