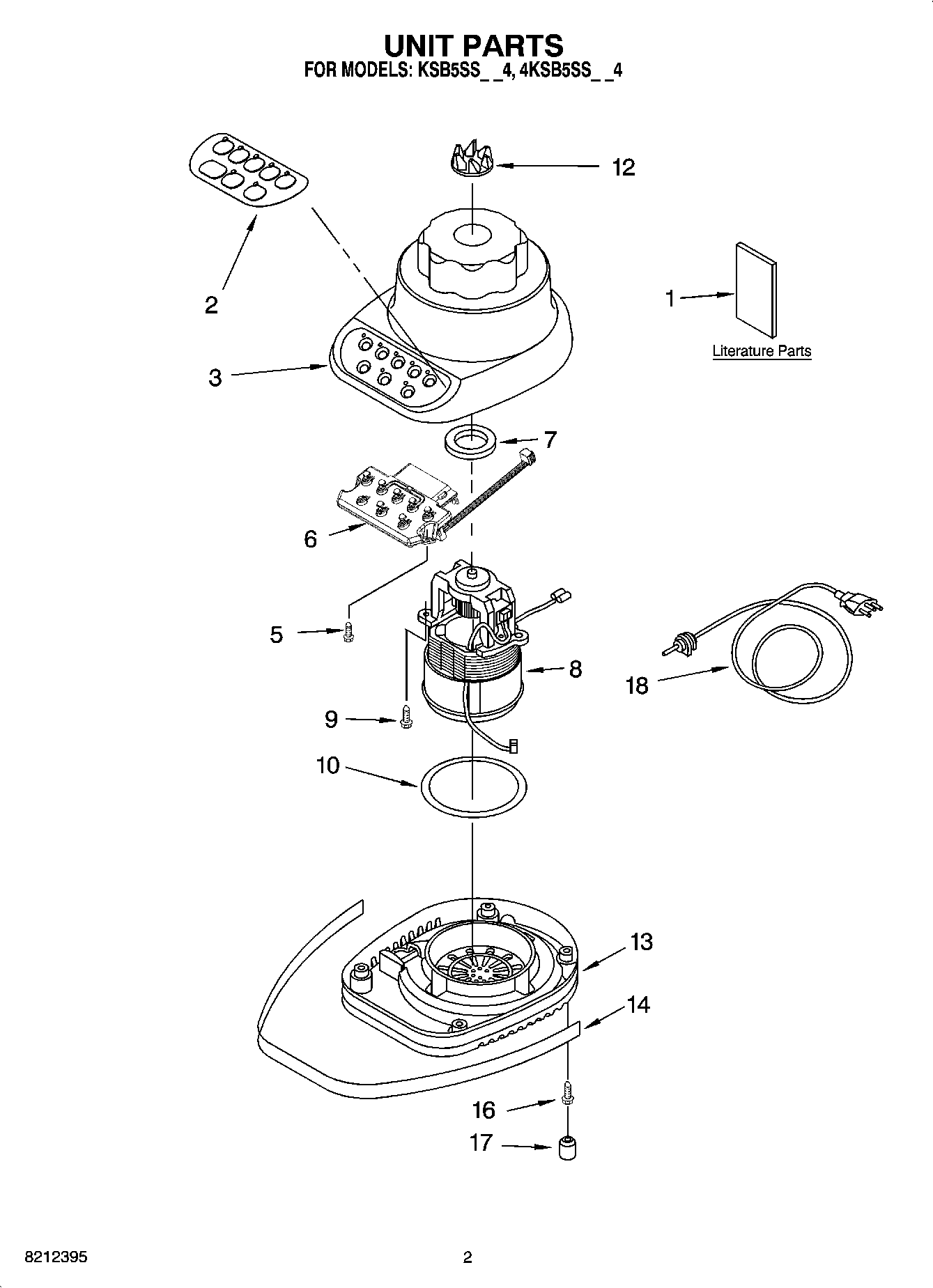

KSB5SSBK4 01 – UNIT PARTS

Products

Position	Product
1	Repair Parts List
1	Use & Care Guide (US)
1	Use & Care Guide (Canada)
1	LITERATURE PARTS
2	Overlay, Switch (5-Speed (Black))
2	Overlay, Switch (5-Speed) (White On White KSB5SS Model)
3	Housing, Upper (Onyx Black)
3	Housing, Upper (White)
3	Housing, Upper (Imperial Black)
3	Housing, Upper (Imperial White)
5	WPW10068250 Whirlpool Dishwasher Screw
6	Board, Control
7	Seal, Motor
8	WP9706759 Whirlpool Motor Assembly
9	Screw
10	O-Ring
12	WP9704230 Whirlpool Coupling
13	Base (White)
13	Base (Imperial Grey)
14	WPL 9706616
14	WPL 9704283
16	Screw
17	Foot, Base
18	WPL 9706647
18	WPL 9706646
