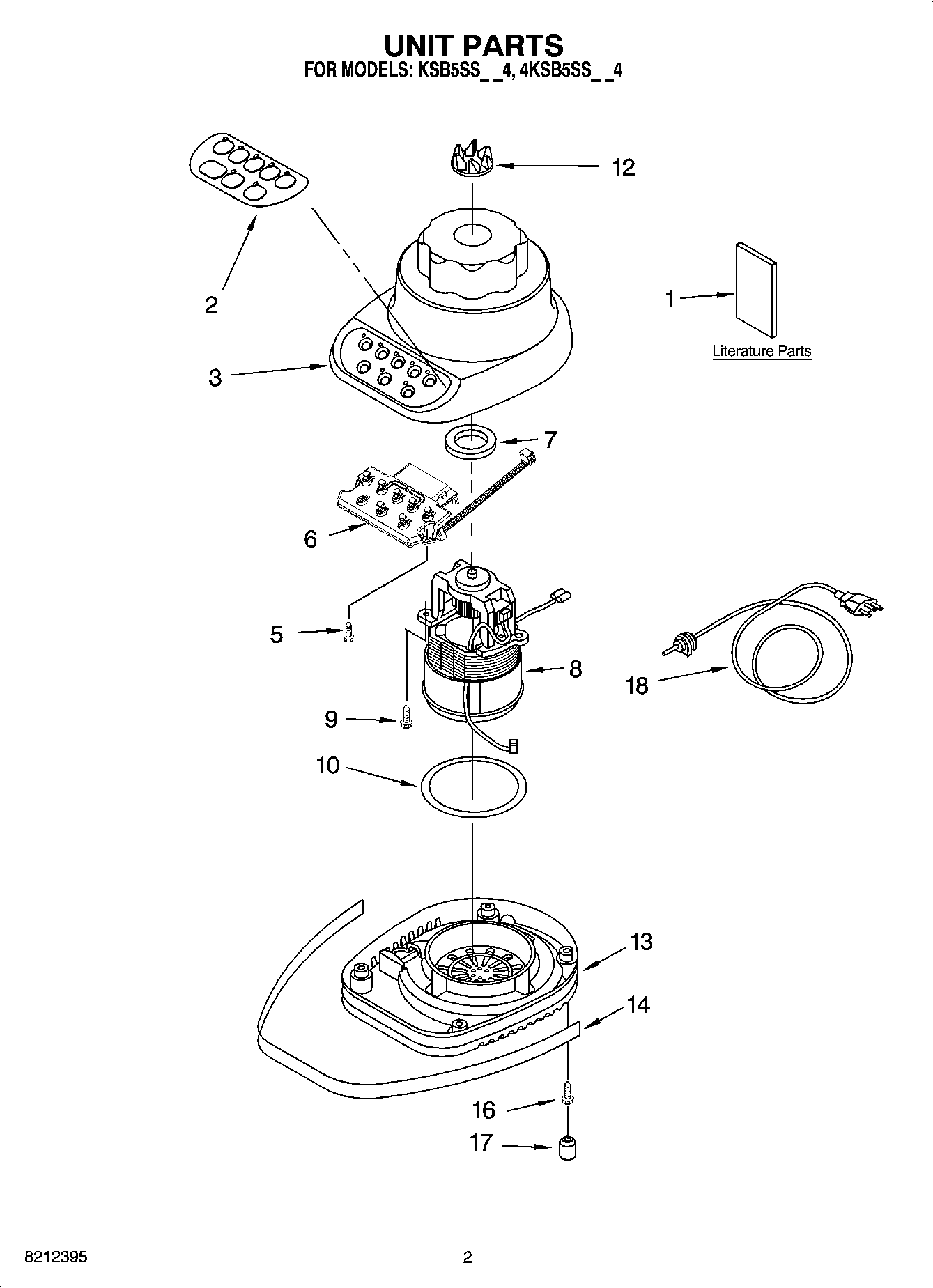

KSB5SSWH4 01 – UNIT PARTS

Products

PositionProduct
1Repair Parts List
1Use & Care Guide (US)
1Use & Care Guide (Canada)
1LITERATURE PARTS
2Overlay, Switch (5-Speed) (White On White KSB5SS Model)
2Overlay, Switch (5-Speed (Black))
3Housing, Upper (Imperial Black)
3Housing, Upper (Onyx Black)
3Housing, Upper (White)
3Housing, Upper (Imperial White)
5WPW10068250 Whirlpool Dishwasher Screw
6Board, Control
7Seal, Motor
8WP9706759 Whirlpool Motor Assembly
9Screw
10O-Ring
12WP9704230 Whirlpool Coupling
13Base (White)
13Base (Imperial Grey)
14WPL 9706616
14WPL 9704283
16Screw
17Foot, Base
18WPL 9706647
18WPL 9706646
