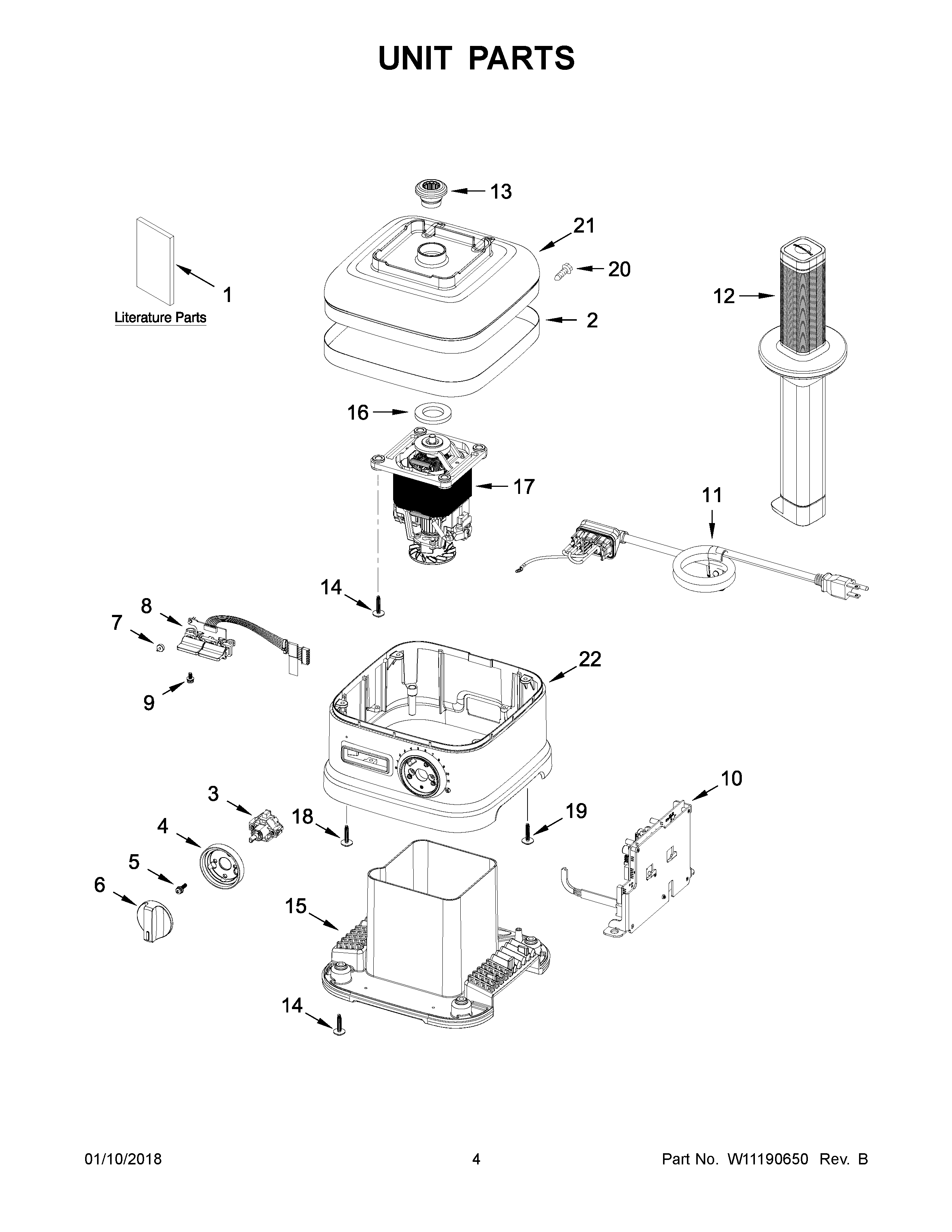

KSB6065QFG1 03 – UNIT PARTS

Products

Position	Product
1A	RECIPE BOOK
1	USE & CARE GUIDE
2	TRIMBAND
3	ROTARY SWITCH
4	BEZEL, ROTARY SWITCH
5	SCREW
6A	KNOB, ROTARY SWITCH (MATTE GRAY)
6B	KNOB, ROTARY SWITCH (MATTE WHITE)
6	KNOB, ROTARY SWITCH (BLACK MATTE)
7	TOGGLE LED LENS
8	W11176159 Whirlpool Switch
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	TAMPER
13	W10895290 Whirlpool Coupling Assembly
14	SCREW
15	BASE
16	W11700631 Whirlpool Ring
17	W11186091 Whirlpool Motor Assembly
18	WPW10068250 Whirlpool Dishwasher Screw
19	WP3400814 Whirlpool Screw
20	W10853069 Whirlpool Screw
21	UPPER BASE (BLACK MATTE)
21A	UPPER BASE (MATTE GRAY)
21B	UPPER BASE (MATTE WHITE)
22B	LOWER BASE (MATTE WHITE)
22	LOWER BASE (BLACK MATTE)
22A	LOWER BASE (MATTE GRAY)
