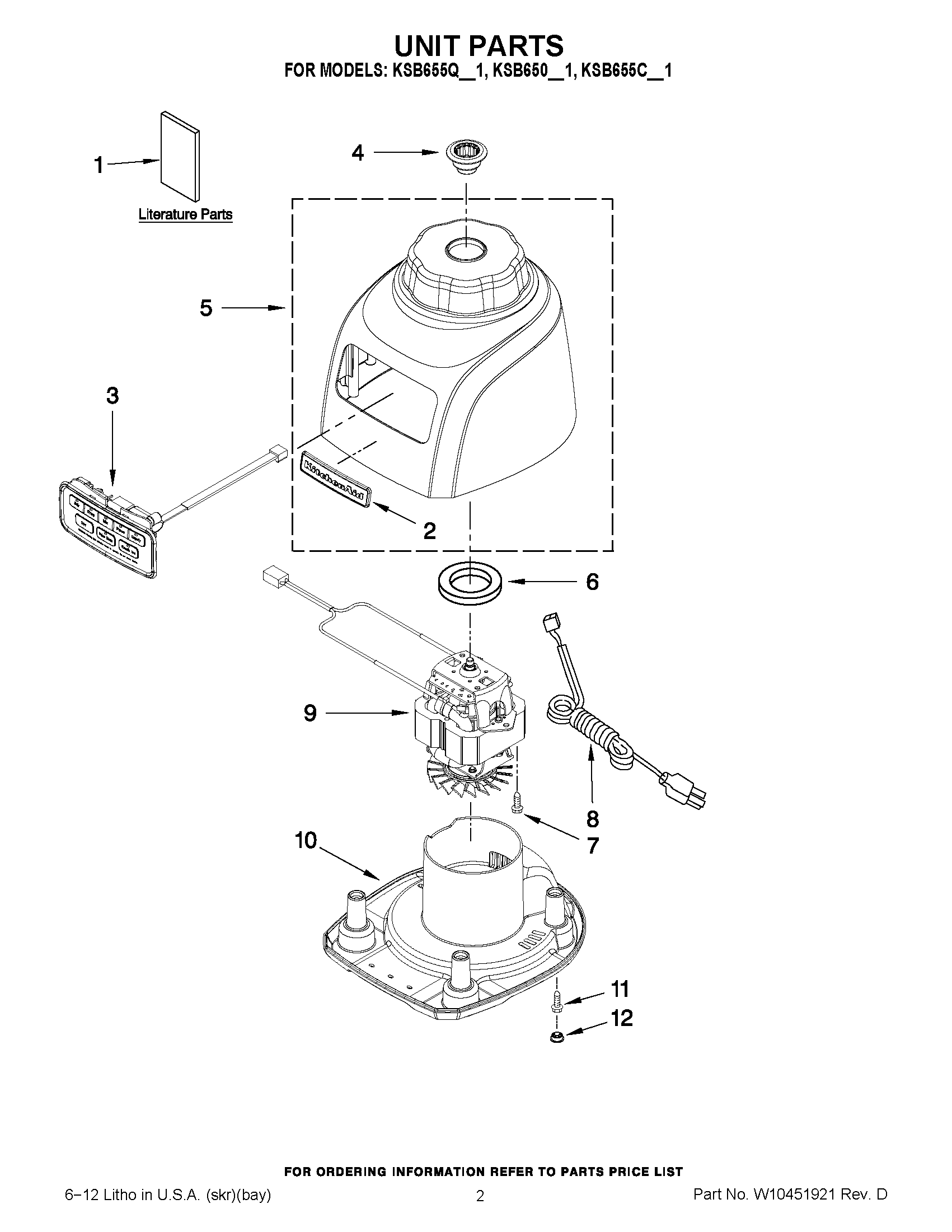

KSB650ES1 01 – UNIT PARTS

KSB650ES1 01 – UNIT PARTS

Written by

in

KSB650ES1 01 – UNIT PARTS

Products

PositionProduct
1USE & CARE
1REPAIR PARTS LIST
2NAMEPLATE
3CONTROL ASSEMBLY
4WPW10279256 Whirlpool Blender Drive Coupler
5WPW10443258 Whirlpool Housing
5WPW10443257 Whirlpool Housing
5WPW10443260 Whirlpool Housing Assembly
5WPW10443252 Whirlpool Housing
5WPW10443265 Whirlpool Housing
5WPW10443256 Whirlpool Housing
5HOUSING, UPPER INCL. NAMEPLATE (ONYX BLACK)
5HOUSING, UPPER INCL. NAMEPLATE (GLOSS CINNAMON)
5HOUSING, UPPER INCL. NAMEPLATE (CONTOUR SILVER)
5HOUSING, UPPER INCL. NAMEPLATE (EMPIRE RED)
5WPW10443264 Whirlpool Housing
6WP9709366 Whirlpool Seal
7WPW10068250 Whirlpool Dishwasher Screw
89708917 Whirlpool Power Cord
8W11197488 Whirlpool Power Cord
9WPW10225872 Whirlpool Motor
10W10243482 Whirlpool Base Assembly
11W11164114 Whirlpool Screw
12WPW10524701 Whirlpool Foot Assembly
