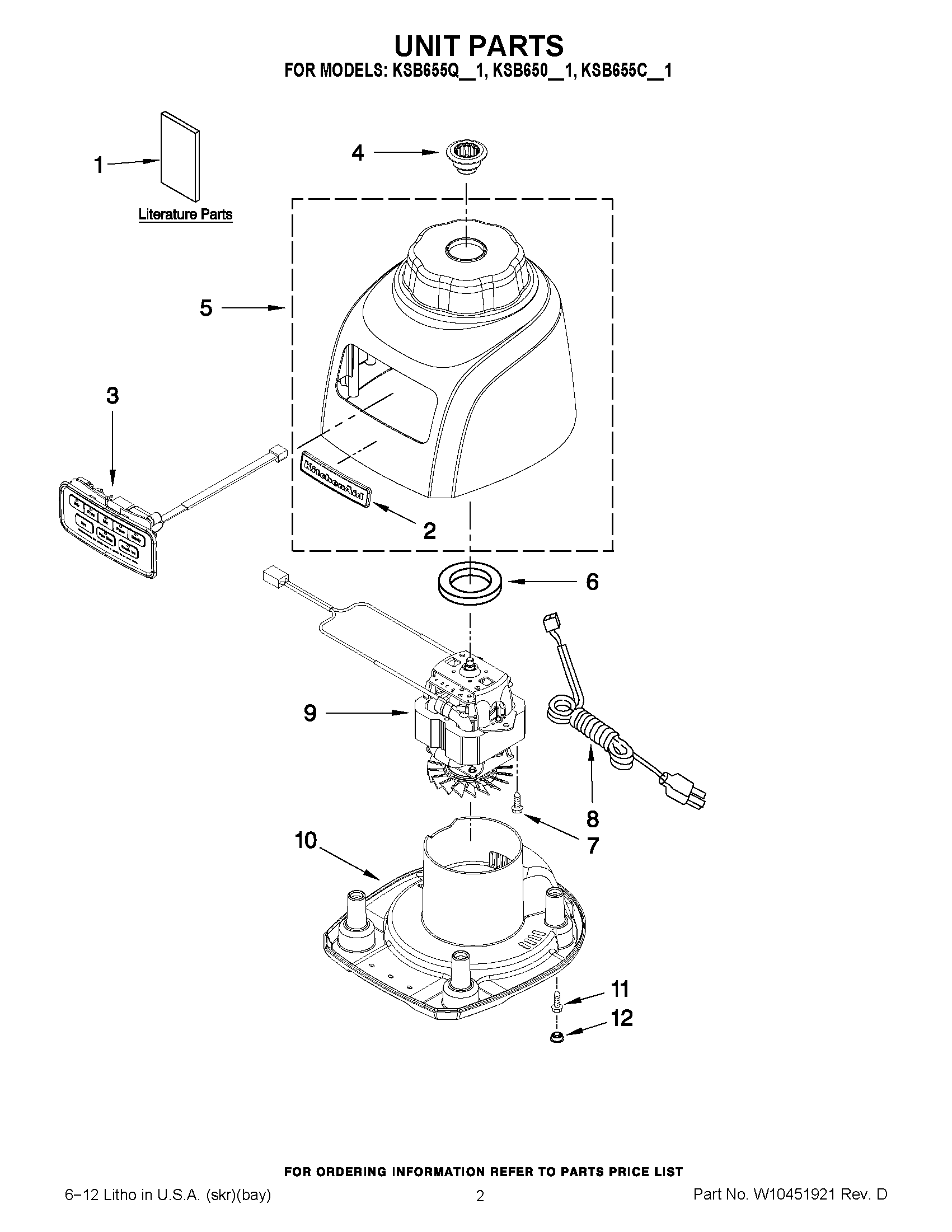

KSB650SM1 01 – UNIT PARTS

Products

Position	Product
1	USE & CARE
1	REPAIR PARTS LIST
2	NAMEPLATE
3	CONTROL ASSEMBLY
4	WPW10279256 Whirlpool Blender Drive Coupler
5	WPW10443258 Whirlpool Housing
5	WPW10443257 Whirlpool Housing
5	WPW10443260 Whirlpool Housing Assembly
5	WPW10443252 Whirlpool Housing
5	WPW10443265 Whirlpool Housing
5	WPW10443256 Whirlpool Housing
5	HOUSING, UPPER INCL. NAMEPLATE (ONYX BLACK)
5	HOUSING, UPPER INCL. NAMEPLATE (GLOSS CINNAMON)
5	HOUSING, UPPER INCL. NAMEPLATE (CONTOUR SILVER)
5	HOUSING, UPPER INCL. NAMEPLATE (EMPIRE RED)
5	WPW10443264 Whirlpool Housing
6	WP9709366 Whirlpool Seal
7	WPW10068250 Whirlpool Dishwasher Screw
8	9708917 Whirlpool Power Cord
8	W11197488 Whirlpool Power Cord
9	WPW10225872 Whirlpool Motor
10	W10243482 Whirlpool Base Assembly
11	W11164114 Whirlpool Screw
12	WPW10524701 Whirlpool Foot Assembly
