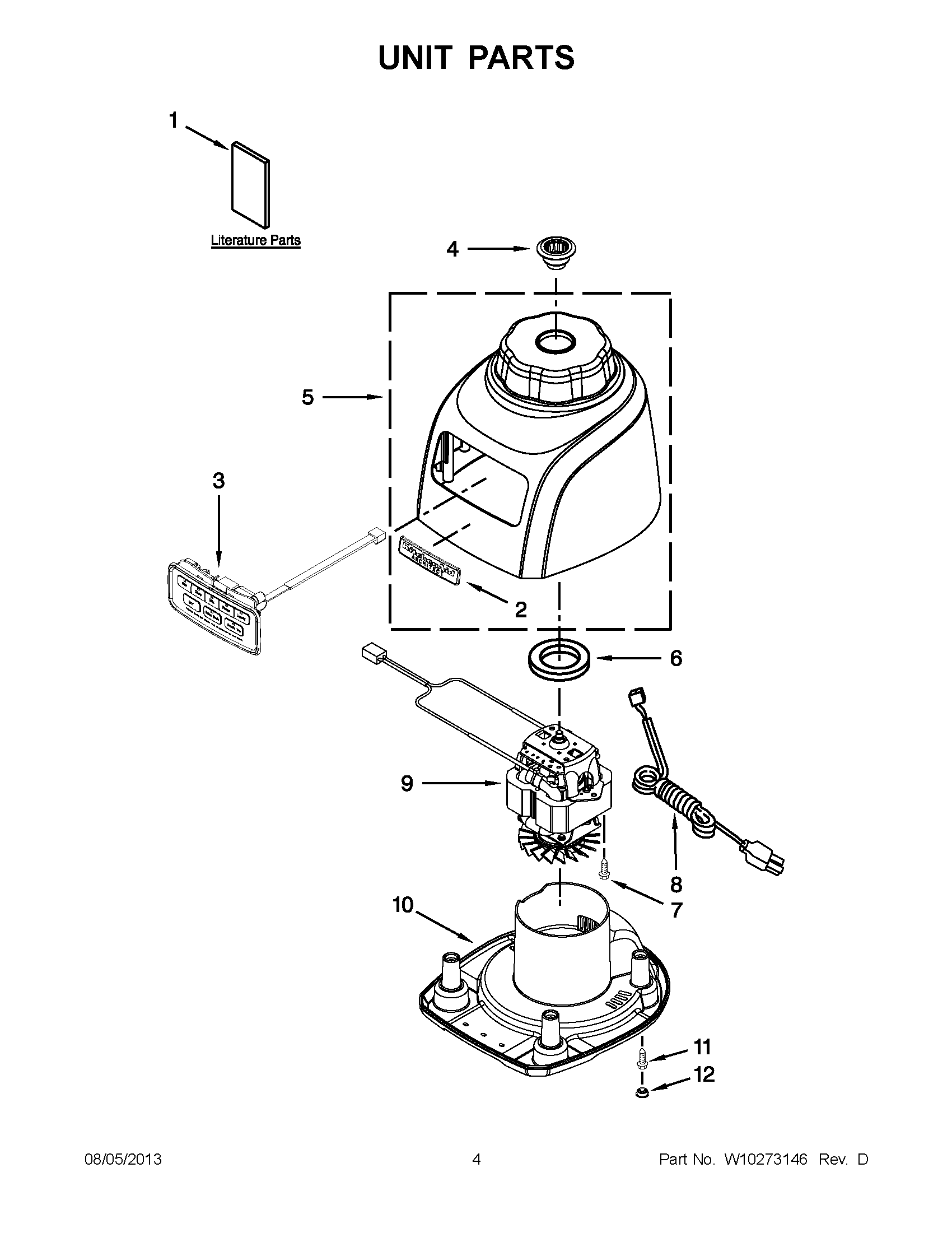

KSB655AES0 02 – UNIT PARTS

Products

Position	Product
1	USE & CARE
2	NAMEPLATE
3	CONTROL ASSEMBLY
4	WPW10279256 Whirlpool Blender Drive Coupler
5	HOUSING, UPPER INCL. NAMEPLATE (COCOA SILVER)
5	W10317073 Whirlpool Housing
5	HOUSING, UPPER INCL. NAMEPLATE (FROSTED PEARL)
6	WP9709366 Whirlpool Seal
7	WPW10068250 Whirlpool Dishwasher Screw
8	W11197488 Whirlpool Power Cord
9	WPW10225872 Whirlpool Motor
10	W10243482 Whirlpool Base Assembly
11	W11164114 Whirlpool Screw
12	WPW10524701 Whirlpool Foot Assembly
