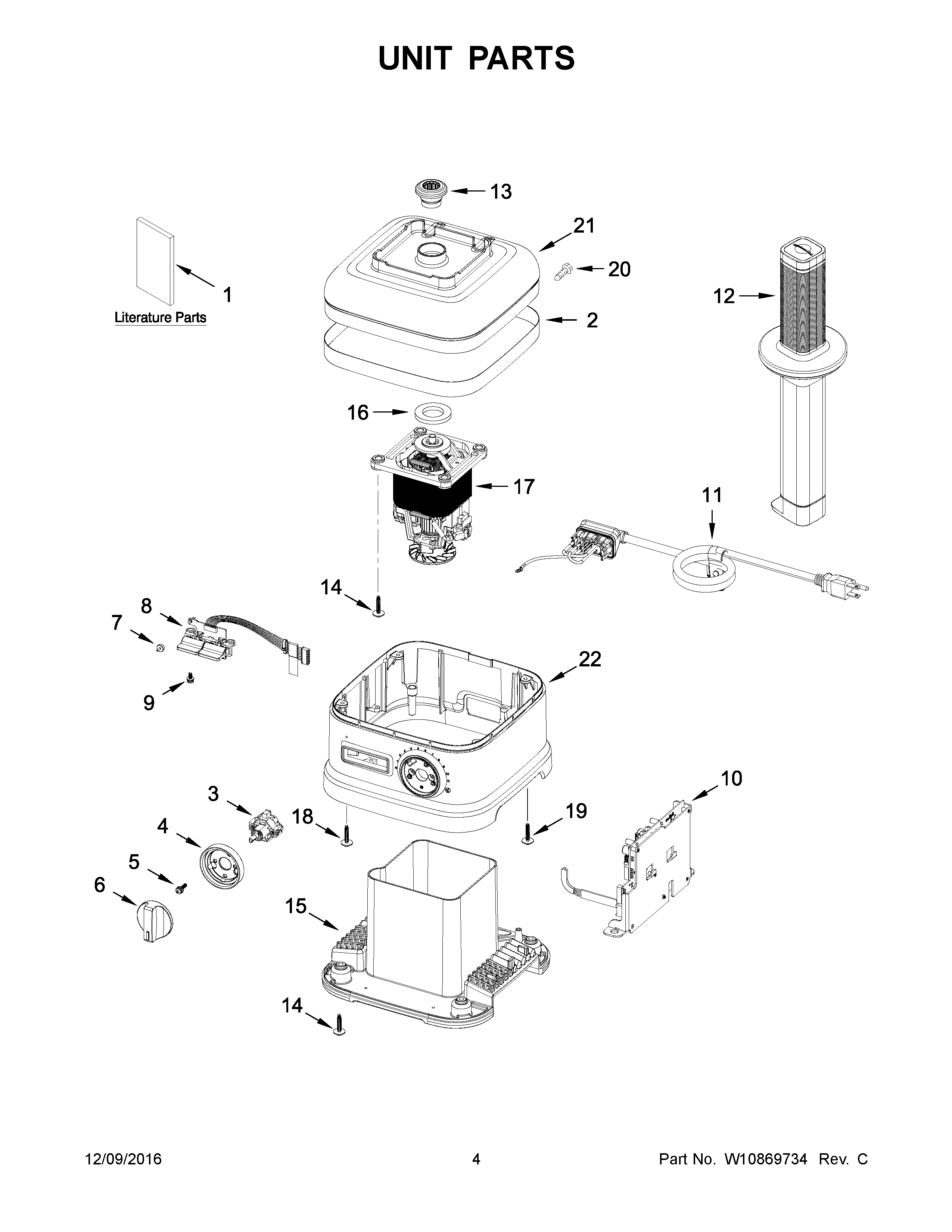

KSB7068FP0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	RECIPE BOOK
2	TRIMBAND
3	ROTARY SWITCH
4	BEZEL, ROTARY SWITCH
5	SCREW
6	W11168413 Whirlpool Knob
7	TOGGLE LED LENS
8	W11176159 Whirlpool Switch
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	TAMPER
13	W10895290 Whirlpool Coupling Assembly
14	SCREW
15	BASE
16	W11700631 Whirlpool Ring
17	W11167358 Whirlpool Motor
18	WPW10068250 Whirlpool Dishwasher Screw
19	WP3400814 Whirlpool Screw
20	W10853069 Whirlpool Screw
21C	UPPER BASE (SUGAR PEARL SILVER)
21D	UPPER BASE (SLATE)
21B	UPPER BASE (ONYX BLACK)
21	UPPER BASE (CANDY APPLE)
21A	UPPER BASE (FROSTED PEARL)
22C	LOWER BASE (SUGAR PEARL SILVER)
22	LOWER BASE (CANDY APPLE)
22A	LOWER BASE (FROSTED PEARL)
22B	LOWER BASE (ONYX BLACK)
22D	LOWER BASE (SLATE)
