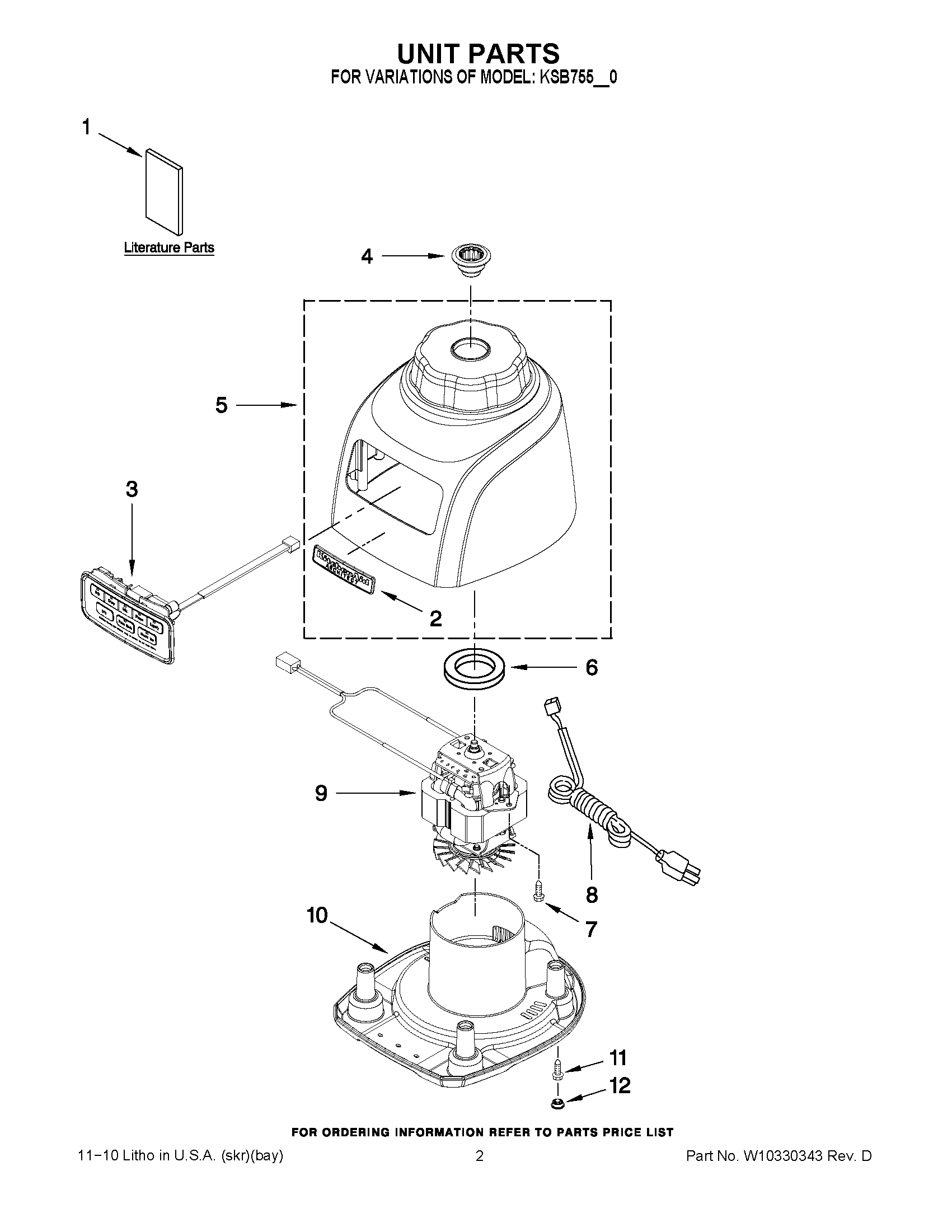

KSB755CS0 01 – UNIT PARTS

KSB755CS0 01 – UNIT PARTS

Written by

in

KSB755CS0 01 – UNIT PARTS

Products

PositionProduct
1REPAIR PARTS LIST
1USE & CARE
2NAMEPLATE
2NAMEPLATE
3CONTROL ASSEMBLY
4WPW10279256 Whirlpool Blender Drive Coupler
5HOUSING, UPPER INCL. NAMEPLATE (COCOA SILVER)
5HOUSING, UPPER INCL. NAMEPLATE (CANDY APPLE)
5HOUSING, UPPER INCL. NAMEPLATE (ONYX BLACK)
5HOUSING, UPPER INCL. NAMEPLATE (COCOA SILVER)
6WP9709366 Whirlpool Seal
7WPW10068250 Whirlpool Dishwasher Screw
8W11197488 Whirlpool Power Cord
9WPW10225872 Whirlpool Motor
10W10243482 Whirlpool Base Assembly
11W11164114 Whirlpool Screw
12WPW10524701 Whirlpool Foot Assembly
