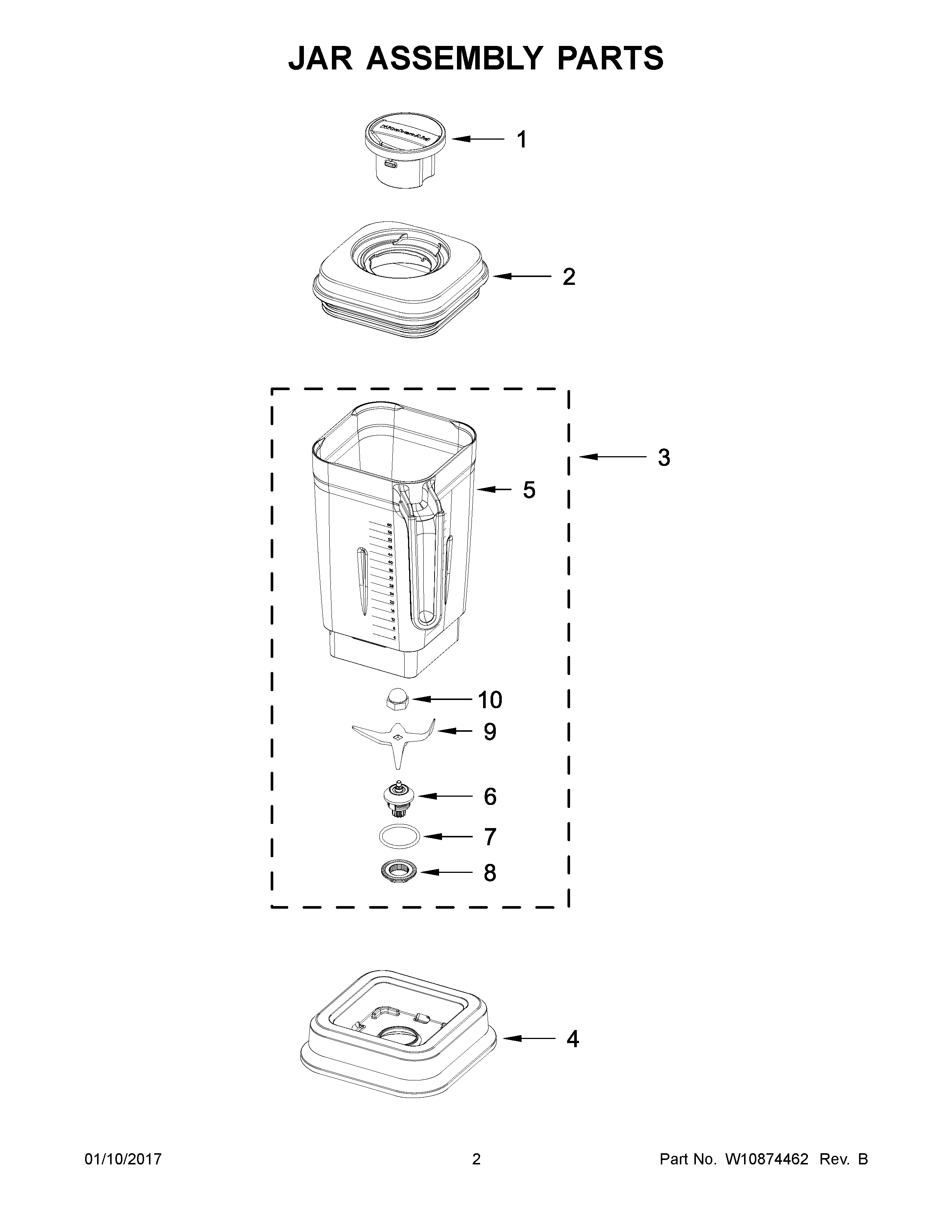

KSB8270BK0 02 – JAR ASSEMBLY PARTS

KSB8270BK0 02 – JAR ASSEMBLY PARTS

Written by

in

KSB8270BK0 02 – JAR ASSEMBLY PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11109490 Whirlpool Grip Assembly
1W11197027 Whirlpool Cap
2LID, JAR
3W11324072 Whirlpool Jar
4PAD, JAR
5W10879670 Whirlpool Jar
6W10732359 Whirlpool Bearing
7W11211427 Whirlpool Ring
8W11109424 Whirlpool Nut
9W10793007 Whirlpool Blade Assembly
10ACORN NUT
