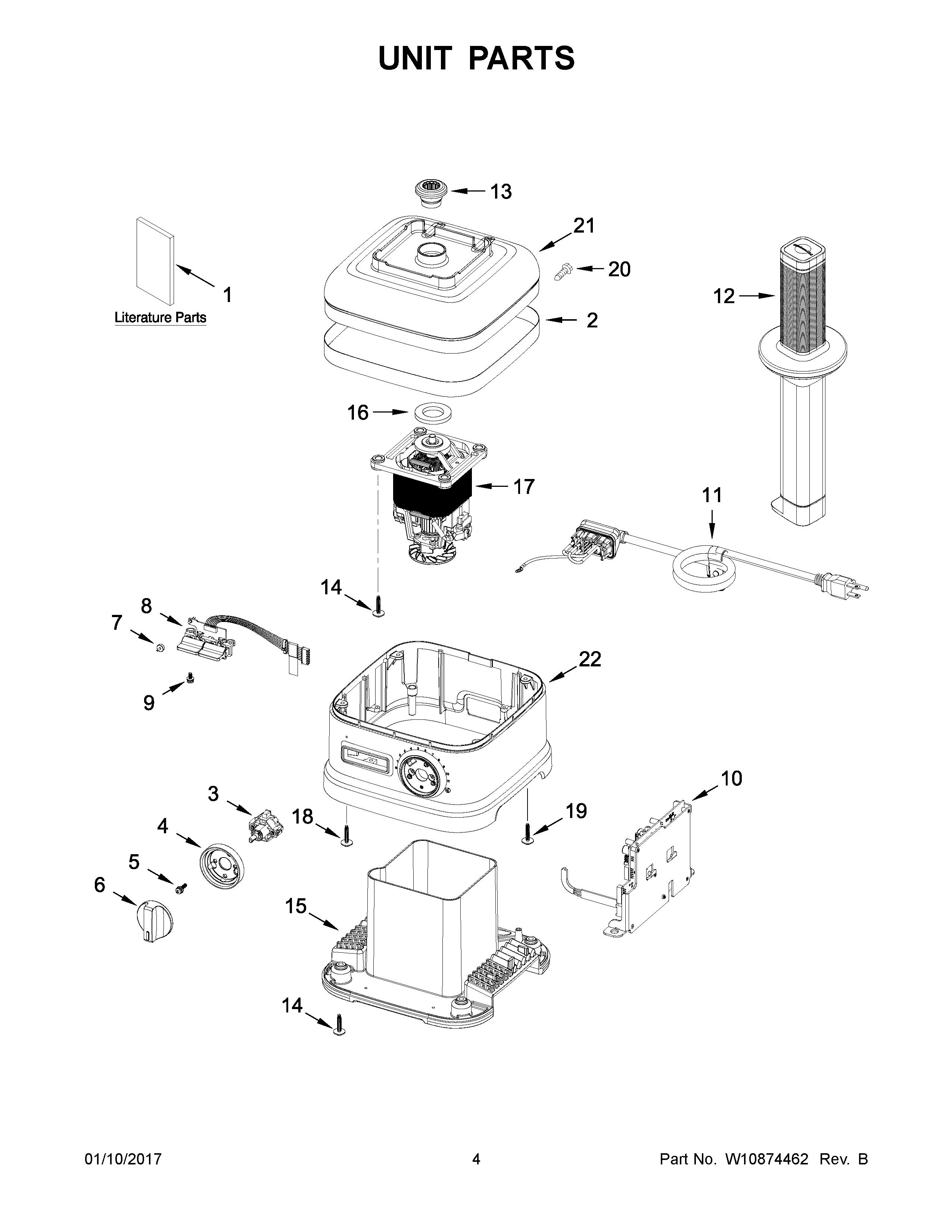

KSB8270SR0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
1A	RECIPE BOOK
2	TRIMBAND
3	W10897393 Whirlpool Switch
4	BEZEL, ROTARY SWITCH
5	SCREW
6	W11168413 Whirlpool Knob
7	TOGGLE LED LENS
8	W11176159 Whirlpool Switch
9	SCREW
10	ELECTRONIC CONTROL
11	POWER CORD
12	TAMPER
13	W10895290 Whirlpool Coupling Assembly
14	SCREW
15	BASE
16	W11700631 Whirlpool Ring
17	W11167358 Whirlpool Motor
18	WPW10068250 Whirlpool Dishwasher Screw
19	WP3400814 Whirlpool Screw
20	W10853069 Whirlpool Screw
21E	UPPER BASE (SUGAR PEARL SILVER)
21D	UPPER BASE (MEDALLION SILVER)
21C	UPPER BASE (FROSTED PEARL)
21B	UPPER BASE (CANDY APPLE)
21A	UPPER BASE (IMPERIAL BLACK)
21	UPPER BASE (BLACK MATTE)
22	LOWER BASE (BLACK MATTE)
22A	LOWER BASE (IMPERIAL BLACK)
22B	LOWER BASE (CANDY APPLE)
22C	LOWER BASE (FROSTED PEARL)
22D	LOWER BASE (MEDALLION SILVER)
22E	LOWER BASE (SUGAR PEARL SILVER)
