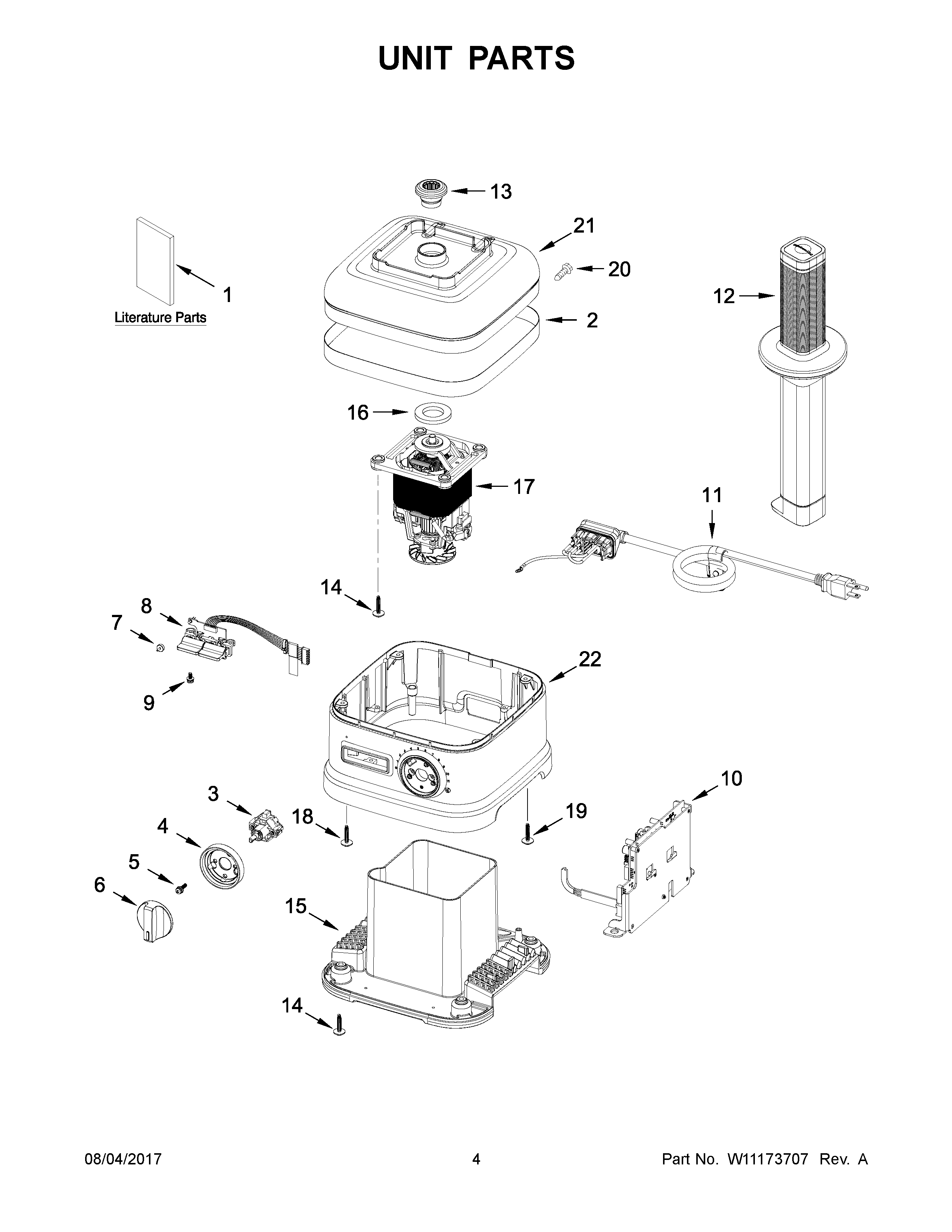

KSB8280CP0 03 – UNIT PARTS

KSB8280CP0 03 – UNIT PARTS

Written by

in

KSB8280CP0 03 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
1ARECIPE BOOK
2TRIMBAND
3W10897393 Whirlpool Switch
4BEZEL, ROTARY SWITCH
5SCREW
6W11168413 Whirlpool Knob
7TOGGLE LED LENS
8W11176159 Whirlpool Switch
9SCREW
10ELECTRONIC CONTROL
11POWER CORD
12TAMPER
13W10895290 Whirlpool Coupling Assembly
14SCREW
15BASE
16W11700631 Whirlpool Ring
17W11167358 Whirlpool Motor
18WPW10068250 Whirlpool Dishwasher Screw
19WP3400814 Whirlpool Screw
20W10853069 Whirlpool Screw
21UPPER BASE (SATIN COPPER)
22LOWER BASE (SATIN COPPER)
