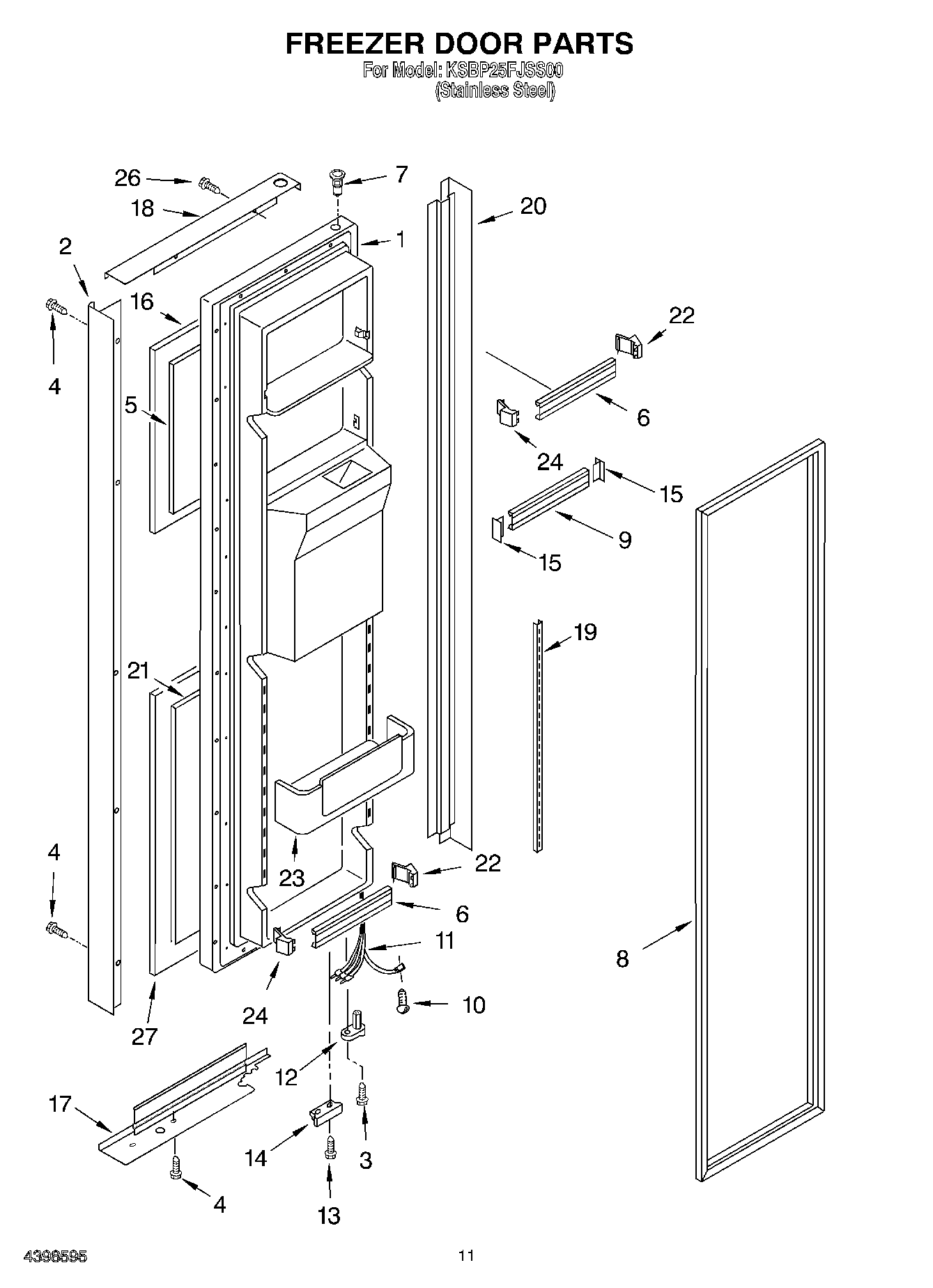

KSBP25FJSS00 07 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (Includes Item No.8 And Dispenser Front Parts) (Black)
2	Handle
3	WP3400012 Whirlpool Refrigerator Screw
4	WP3196557 Whirlpool Screw
5	Filler, Panel (Upper)
6	Trim, Door Shelf
7	WP2182181 Whirlpool Refrigerator Thimble
8	Door Gasket, Magnetic (Service) (Black)
9	Trim, Door Shelf
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Black)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
16	Panel, Upper
17	Trim, Door (Bottom)
18	Trim, Door (Top)
19	Ladder, Shelf Assembly (2)
20	Trim, Door (Hinge Side)
21	Filler, Panel (Lower)
22	ENDCAP
23	Bin, Door (2)
24	WP2195917K Whirlpool Refrigerator Endcap
26	Screw
27	Panel, Lower
