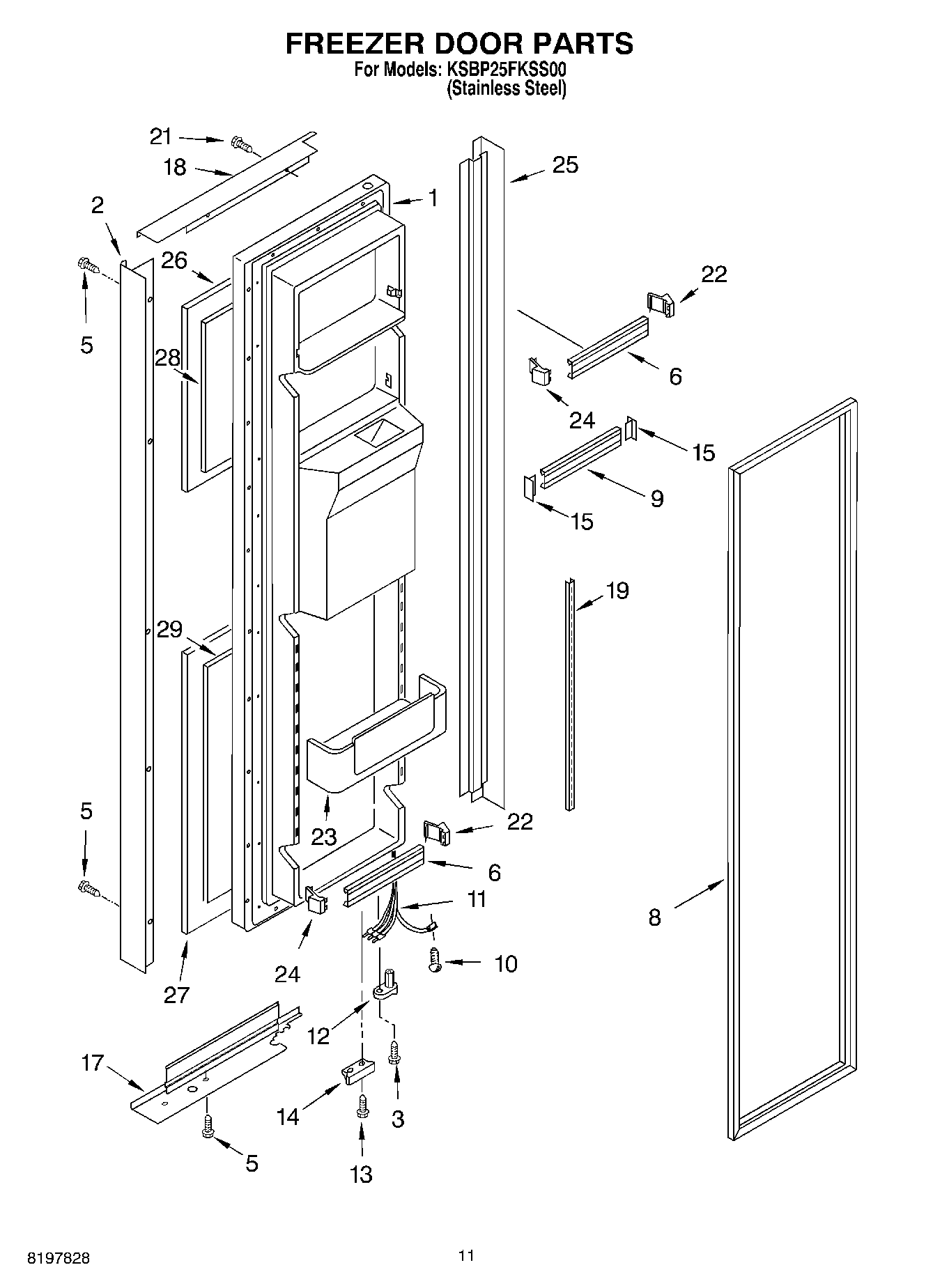

KSBP25FKSS00 07 – FREEZER DOOR PARTSadmin2025-04-26T12:09:52+00:00KSBP25FKSS00 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black) |
| 2 | Handle (Stainless Steel) |
| 3 | WP3400012 Whirlpool Refrigerator Screw |
| 5 | WP3196557 Whirlpool Screw |
| 6 | Trim, Door Shelf |
| 8 | Door Gasket, Magnetic (Black) |
| 9 | Trim, Door Shelf |
| 10 | WP489128 Whirlpool Refrigerator Screw |
| 11 | Wiring Harness |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP489483 Whirlpool Screw |
| 14 | Bracket, Door Stop (Black) |
| 15 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 17 | Trim, Door-Bottom (Stainless Steel) |
| 18 | Trim, Door-Top (Stainless Steel) |
| 19 | Ladder, Shelf Assembly (2) |
| 21 | Screw |
| 22 | ENDCAP |
| 23 | Bin, Door (2) |
| 24 | WP2195917K Whirlpool Refrigerator Endcap |
| 25 | Trim, Hinge-Side (Stainless Steel) |
| 26 | Panel, Upper |
| 27 | Panel, Lower |
| 28 | Filler, Panel (Upper) |
| 29 | Filler, Panel (Lower) |
