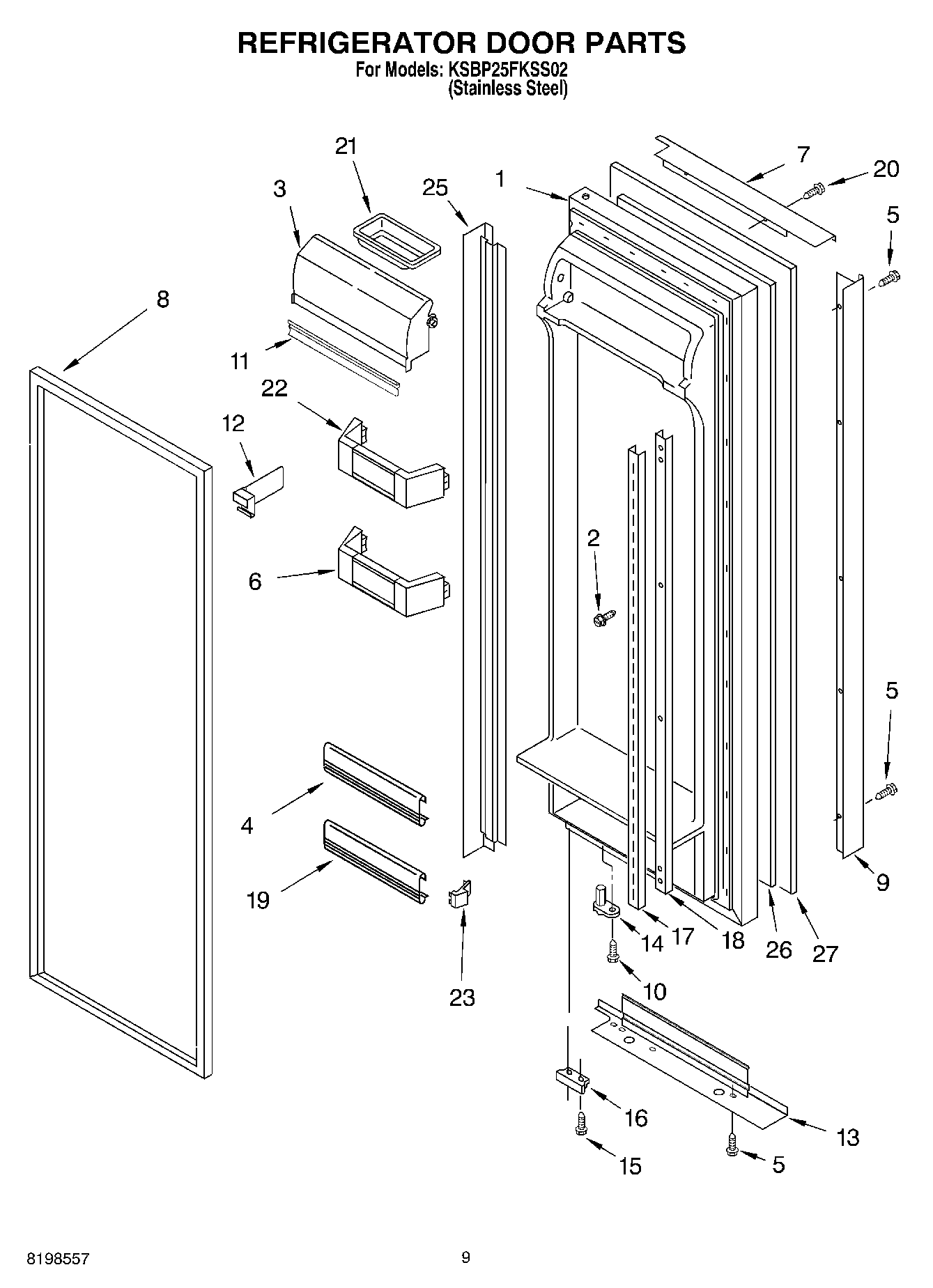

KSBP25FKSS02 06 – REFRIGERATOR DOOR PARTS

KSBP25FKSS02 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSBP25FKSS02 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes Item 8) (Black)
3Door, Compartment
4WP2256010 Whirlpool Door Shelf Trim
5WP3196557 Whirlpool Screw
6WP2257017 Whirlpool Refrigerator Cantilever Bin
7Trim, Door-Top (Stainless Steel)
8Door Gasket, Magnetic (Black)
9Handle (Stainless Steel)
10WP3400012 Whirlpool Refrigerator Screw
11Gasket, Door Compartment
12Divider, Bin
13Trim, Door-Bottom (Stainless Steel)
14WP2182179 Whirlpool Cam Closer
15WP489483 Whirlpool Screw
16Bracket, Door Stop (Black)
17Retainer, Shelf Ladder (2)
18Ladder, Shelf (2)
19Trim, Door Shelf
20Screw
21Butter Tray
22Bin, Door (3)
23ENDCAP
25Trim, Hinge-Side (Stainless Steel)
26Filler, Panel
27Panel
