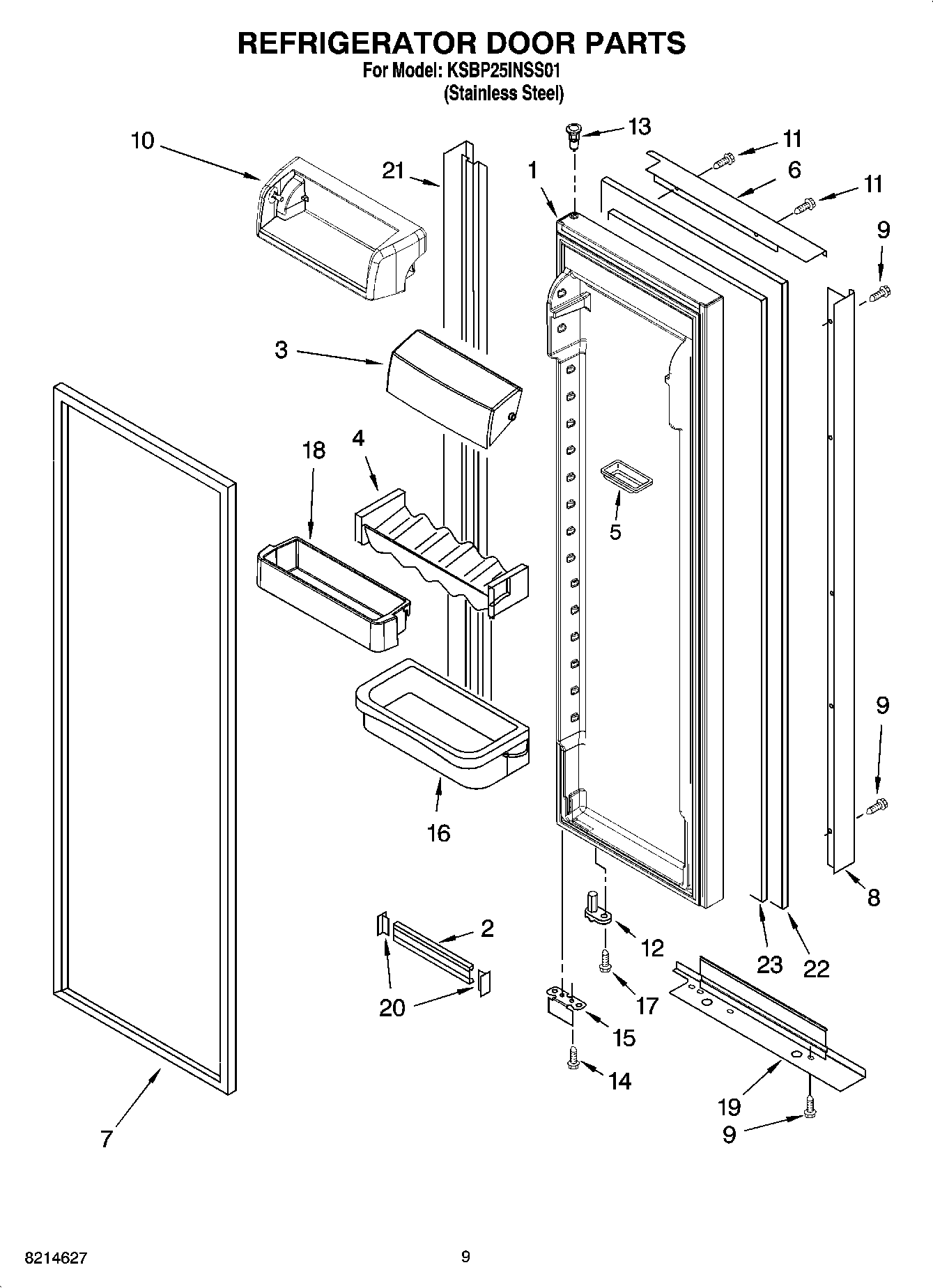

KSBP25INSS01 06 – REFRIGERATOR DOOR PARTS

KSBP25INSS01 06 – REFRIGERATOR DOOR PARTS

Written by

in

KSBP25INSS01 06 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door (Includes 7) (Black)
2Trim, Shelf
3Dairy Door
4CADDY, CAN
5Dish, Butter
6Trim, Door Top (Stainless Steel)
72306996 Whirlpool Refrigerator Door Gasket
8Handle (Stainless Steel)
9WP3196557 Whirlpool Screw
10WP2223879 Whirlpool Refrigerator Compressor Door
11Screw
12WP2182179 Whirlpool Cam Closer
13WP2182181 Whirlpool Refrigerator Thimble
14WP489483 Whirlpool Screw
152306940B Whirlpool Refrigerator Bracket
16WP2223860 Whirlpool Refrigerator Door Shelf Bin
17WP3400012 Whirlpool Refrigerator Screw
18WP2224173 Whirlpool Refrigerator Cantilever Bin
19Trim, Door Bottom (Stainless Steel)
20WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21Trim, Hinge Side (Stainless Steel)
22Panel, Door (Stainless Steel)
23Board, Filler
