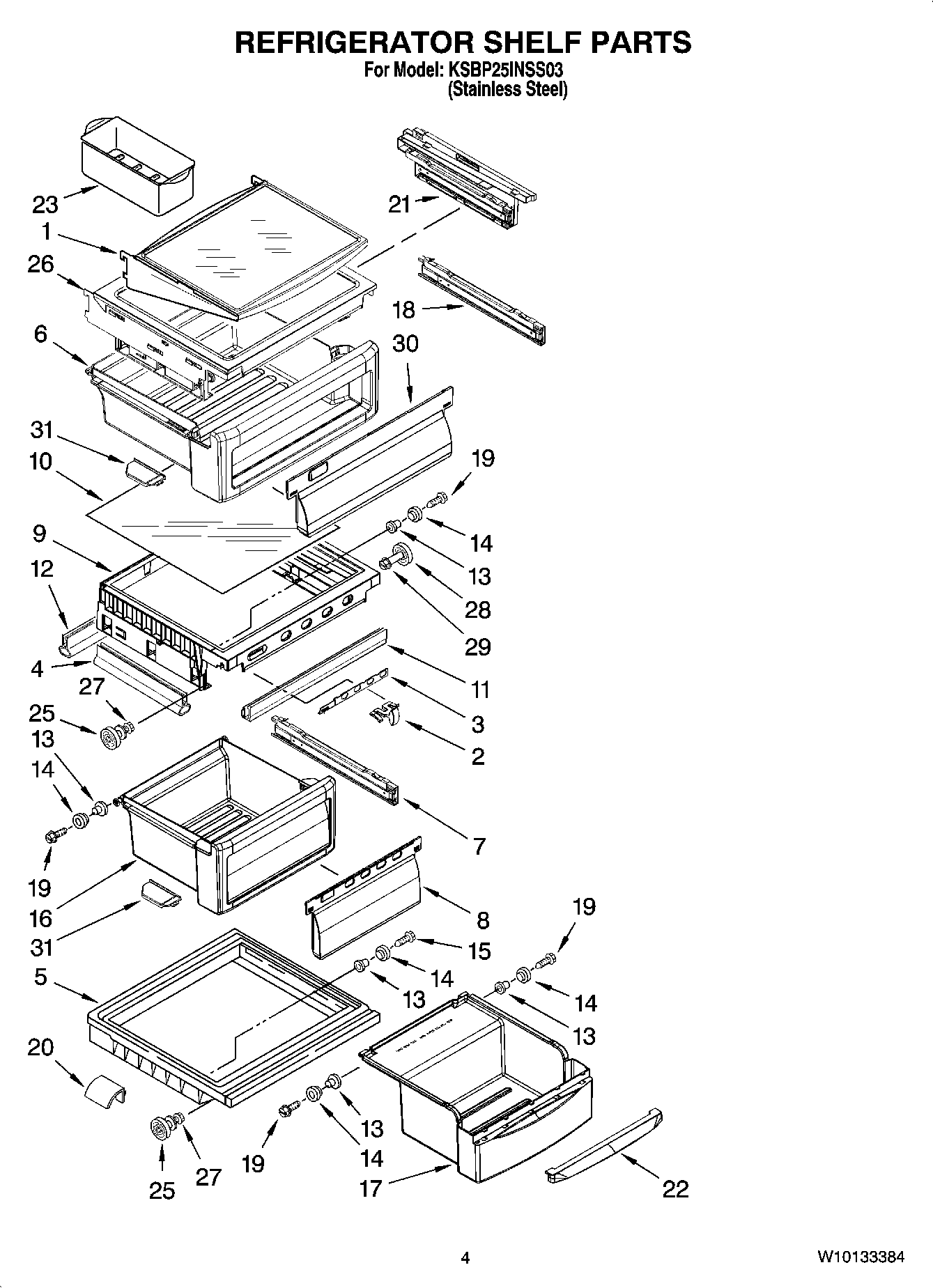

KSBP25INSS03 03 – REFRIGERATOR SHELF PARTS

Products

Position	Product
1	W10235943 Whirlpool Refrigerator CANT Shelf
2	Knob, Humidity
3	2301026 Whirlpool Refrigerator Slide
4	2301117 Whirlpool Refrigerator Gasket
5	WPW10270150 Whirlpool Crisper Drawer Cover
6	Snack Bin
7	2301548 Whirlpool Refrigerator Glide
7	Glide Assm-Pan (Left Side)
8	Window, Crisper
9	Cover, Crisper (Includes 2, 3, 4,11,12 & 24)
10	Glass, Crisper Cover
11	WP1125528 Whirlpool Refrigerator Gasket
12	Gasket, Rear
13	Eyelet, Roller
14	Roller
15	WPW10272364 Whirlpool Refrigerator Screw
16	W10916292 Whirlpool Refrigerator Crisper Pan
17	Meat Pan (Includes 13, 14, 19 & 22)
18	Glide Assm-Pan (Right Side)
18	Glide Assm-Pan (Left Side)
19	WP489261 Whirlpool Refrigerator Screw
20	2223487 Whirlpool Refrigerator Deflector
21	Support Assembly (Right Side)
21	Support Assembly (Left Side)
22	Handle, Beverage
23	W10136387A Whirlpool Refrigerator Egg Container
25	W11223328 Whirlpool Refrigerator Shelf Stud
26	Shelf Assembly
27	WP3-24004-109 Whirlpool Refrigerator Screw
28	WP2196483 Whirlpool Refrigerator Shelf Stud
29	WP3400806 Whirlpool Screw
30	Window, Snack Pan
31	Cap, Crisper Pan (Right Side)
31	Cap, Crisper Pan (Left Side)
