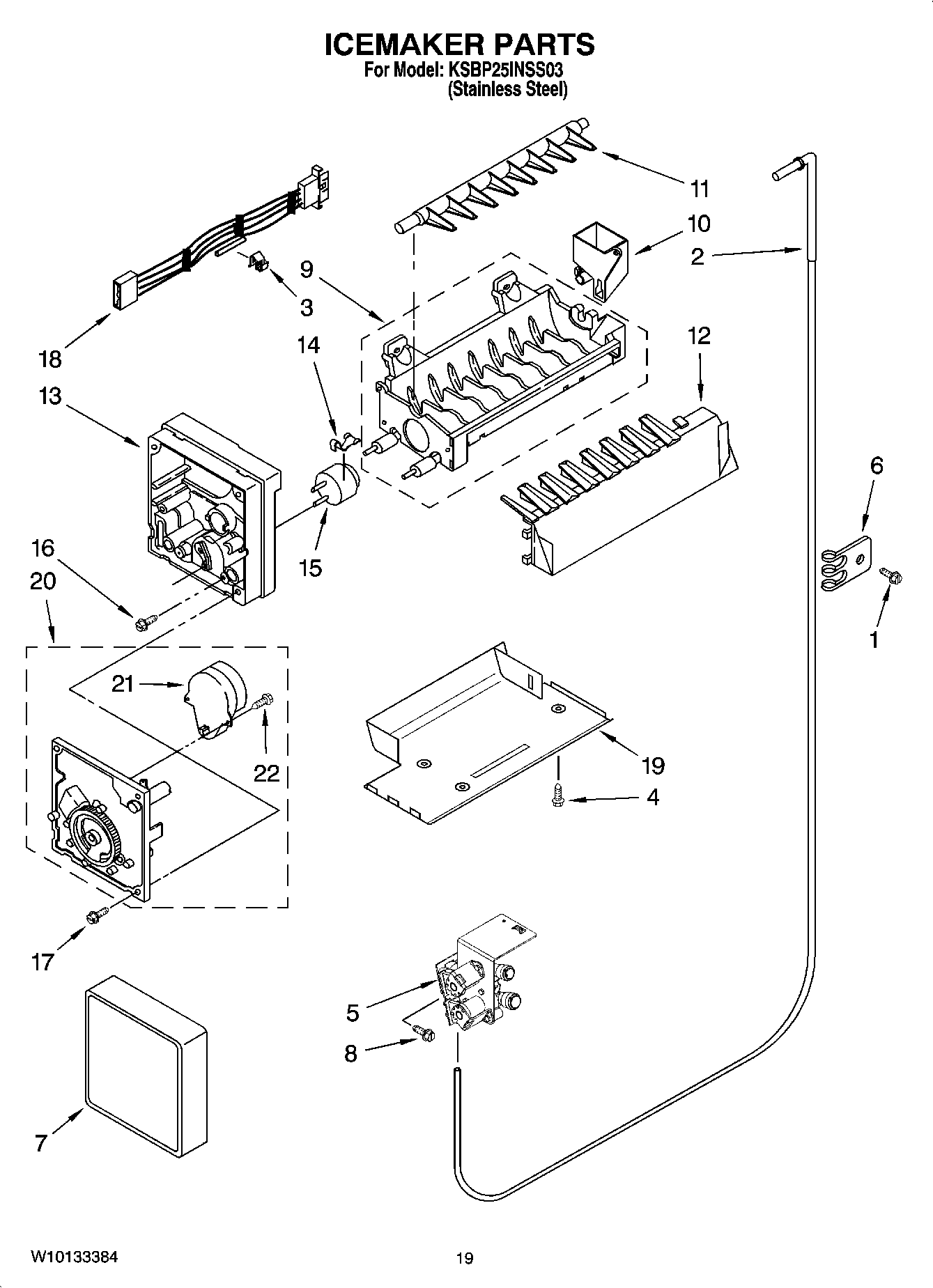

KSBP25INSS03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

KSBP25INSS03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

KSBP25INSS03 12 – ICEMAKER PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI89582A3
833938 Whirlpool Refrigerator Terminal
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
8171357 Whirlpool Spray Nozzle
W10134625 Whirlpool Refrigerator Touch-Up Paint Apollo Grey
PAINT, TOUCH-UP (1/2OZ. GRAPHITE)
PAINT, BULK (1 QT. GRAPHITE)
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
WPL ARI89581A7
4392901 Whirlpool Biscuit Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
WPL ARI89583A8
72017 Whirlpool Appliance Touch-Up Paint White
350930 Whirlpool White Spray Paint
212643 Whirlpool Refrigerator Permagum Sealer
2WP2256096 Whirlpool Refrigerator Fitting
3WP628379 Whirlpool Refrigerator Clip
4WP489478 Whirlpool Refrigerator Screw
5W10247725 Whirlpool Water Inlet Valve
6WP488366 Whirlpool Refrigerator Clamp
7WPW10289690 Whirlpool Ice Maker Cover
8WPW10141625 Whirlpool Refrigerator Screw Assembly
9WPW10190929 Whirlpool Refrigerator Ice Maker Mold
10WP628356 Whirlpool Refrigerator Fill Cup
11WP627843 Whirlpool Refrigerator Ejector Arm
12W10297244 Whirlpool Refrigerator Arm Strip
13WP2195914 Whirlpool Refrigerator Ice Maker Housing
14WP2315522 Whirlpool Refrigerator Clip
15WP627985 Whirlpool Icemaker Cycling Thermostat
168533917 Whirlpool Refrigerator Screw
17WP681249 Whirlpool Screw Assembly
18WP2187467 Whirlpool Refrigerator Wire Harness
19BRACKET, ICEMAKER MOUNTING
208201515 Whirlpool Refrigerator Motor and Gear Module Kit
21W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
22489136 Whirlpool Refrigerator Screw
1002198597 Whirlpool Refrigerator Ice Maker
