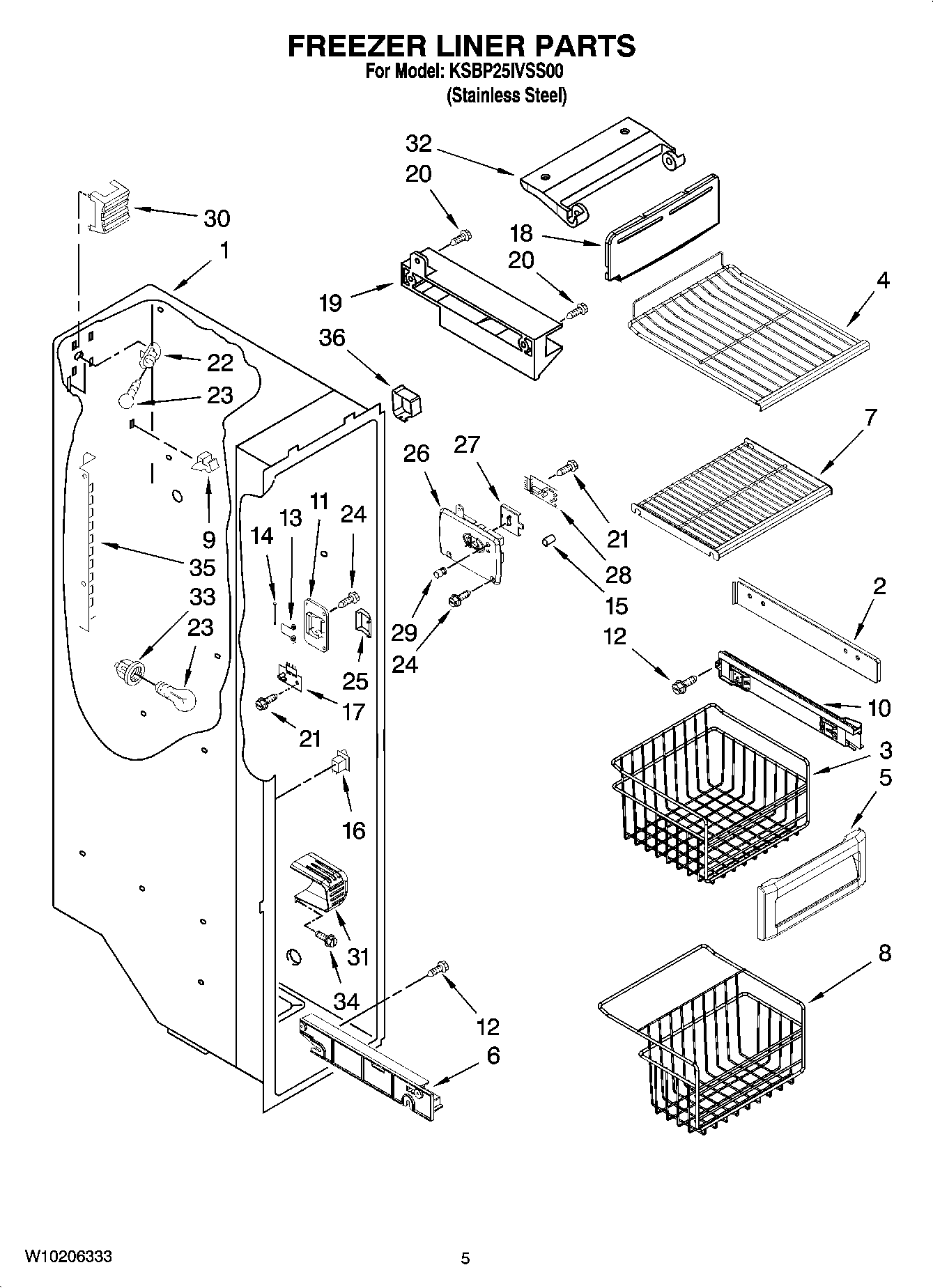

KSBP25IVSS00 04 – FREEZER LINER PARTS

Products

Position	Product
1	Liner (Not A Seviceable Part)
2	Spacer, Slide (2)
3	Basket, Deep (2)
4	SHELF, WIRE
5	Front, Basket
6	TRACK, SHELF (LEFT HAND)
6	TRACK, SHELF (RIGHT HAND)
7	Shelf, Fixed
8	Basket, Lower
9	2215823 Whirlpool Refrigerator Clip
10	2301544 Whirlpool Refrigerator Glide
10	2301545 Whirlpool Refrigerator Glide
11	Cover, Emitter
12	Screw
13	WP2198635 Whirlpool Refrigerator Spring
14	WP2198634 Whirlpool Door Pin
15	Tube, P.C. Board
16	W11457217 Whirlpool Refrigerator Rocker Switch Combination
18	WPW10185438 Whirlpool Ice Maker Cover
19	Slide, Ice Maker
19	2306900 Whirlpool Refrigerator Slide
20	WP489478 Whirlpool Refrigerator Screw
21	2006254 Whirlpool Refrigerator Screw
22	4387478 Whirlpool Refrigerator Light Socket
23	RANGE ONLY 40W 120V APPL BULB
24	WPW10142283 Whirlpool Refrigerator Screw
25	WP2198633 Whirlpool Refrigerator Flipper
26	Cover, Receiver
27	2315398 Whirlpool Refrigerator Slide
28	W10757851-includeCORE Whirlpool Electronic Control+Core
29	WP2198643 Whirlpool Refrigerator Lens
30	Light Shield
31	Light Lens
32	WP2198641 Whirlpool Refrigerator Ice Maker Cover Bracket
33	SOCKET
34	W10142289 Whirlpool Air Conditioner Screw
35	Ladder (Left Side)
35	Ladder (Right Side)
36	2303378 Whirlpool Shield Assembly
