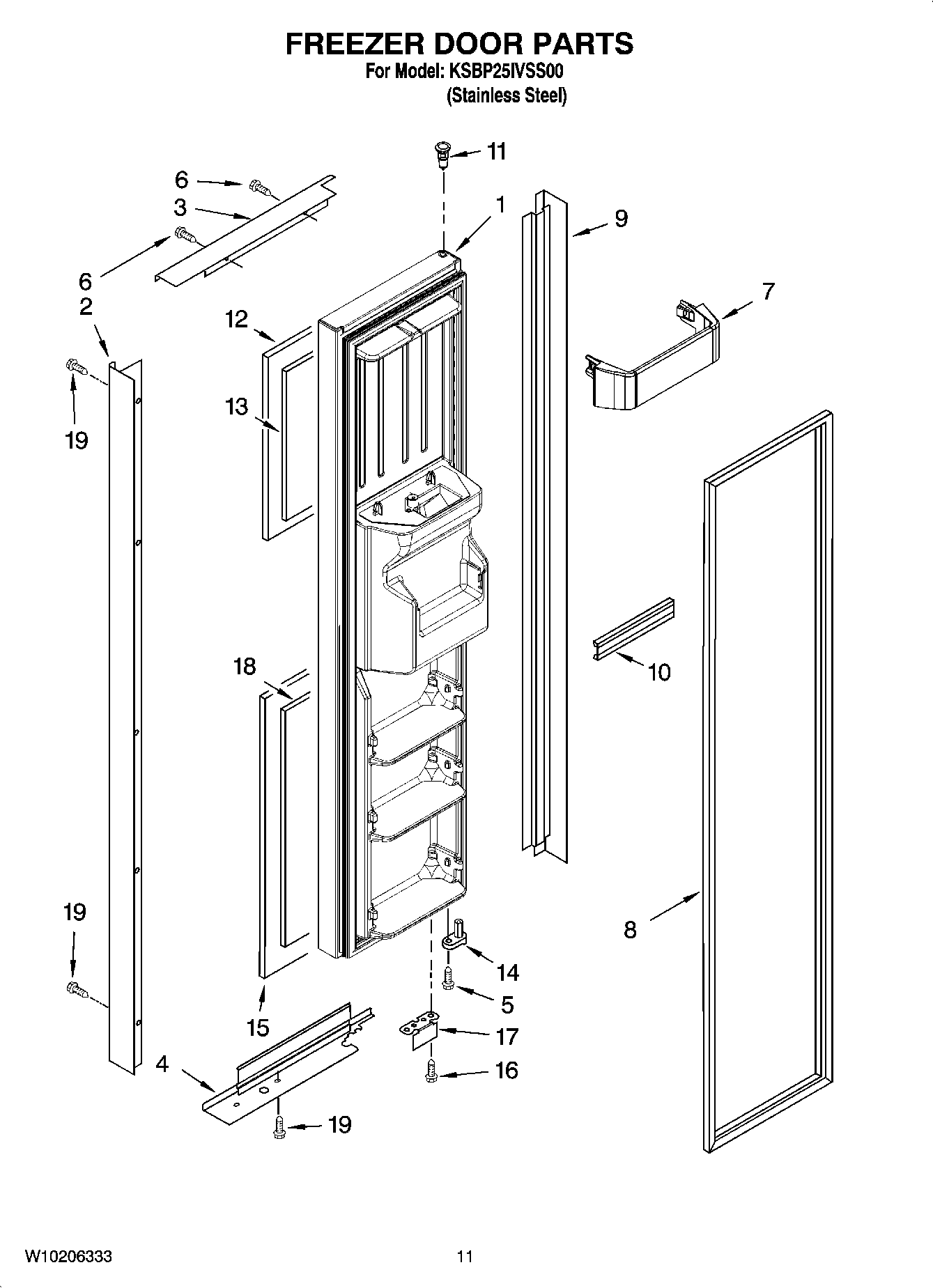

KSBP25IVSS00 07 – FREEZER DOOR PARTS
Written by
in
KSBP25IVSS00 07 – FREEZER DOOR PARTS
Products
Position
Product
1
FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRONT PARTS) (BLACK)
2
Handle (Stainless Steel)
3
Trim, Door Top (Stainless Steel)
4
Trim, Door Bottom (Stainless Steel)
5
WP3400012 Whirlpool Refrigerator Screw
6
Screw
7
Trivet (3)
8
2306995 Whirlpool Refrigerator Door Gasket
9
Trim, Hinge Side (Stainless Steel)
10
WPW10307490 Whirlpool Door Trim Assembly
11
WP2182181 Whirlpool Refrigerator Thimble
12
Panel, Upper Door (Stainless Steel)
13
Board, Filler Upper
14
Door Closer, Upper Cam
15
Panel, Lower Door (Stainless Steel)
16
WP489483 Whirlpool Screw
17
2306940B Whirlpool Refrigerator Bracket
18
Board, Filler Lower
19
WP3196557 Whirlpool Screw
←
