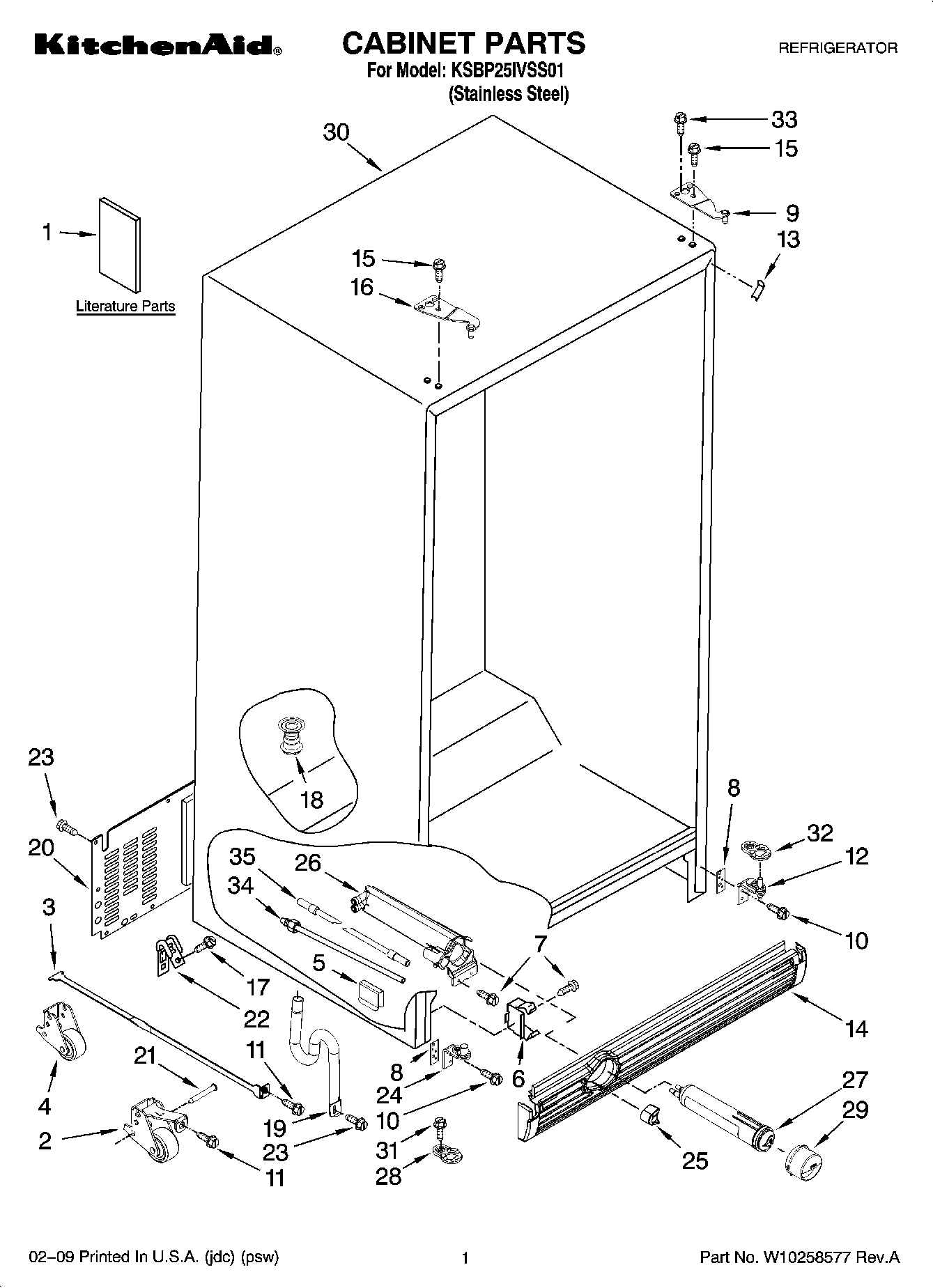

KSBP25IVSS01 01 – CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Installation Instructions
1	Modular Icemaker Service Sheet
1	Service & Wiring Sheet
1	Use & Care Guide
2	ASSEMBLY, FRONT ROLLER (RIGHT HAND)
2	ASSEMBLY, FRONT ROLLER (LEFT HAND)
3	Strap, Roller
4	WPW10173132 Whirlpool Refrigerator Cabinet Roller
5	W11545866 Whirlpool Refrigerator Clip
6	WP2155013 Whirlpool Refrigerator Clip
7	WP489478 Whirlpool Refrigerator Screw
8	2223545 Whirlpool Refrigerator Shim
9	2307008B Whirlpool Refrigerator Butt Hinge
10	WP489497 Whirlpool Screw
11	W10151272 Whirlpool Refrigerator Screw
12	Hinge Assembly, Bottom-RC
13	Filler, Wrapper (Black)
14	Grille (Black)
15	3400108 Whirlpool Refrigerator Screw
16	2307007B Whirlpool Refrigerator Butt Hinge
17	WP489464 Whirlpool Refrigerator Screw
18	W11566763 Whirlpool Fitting
19	Tube, Extension
20	Cover, Unit
21	PIN, ROLLER
22	549193 Whirlpool Refrigerator Power Clamp
24	Hinge Assembly, Bottom-FC
25	WP2260503B Whirlpool Refrigerator Button
26	WPW10121140 Whirlpool Refrigerator Housing
27	FILTER 3-SINGLE TEAL
28	Door Closer, FC
29	WP2260518B Whirlpool Water Filter Cap
30	Cabinet, (Not A Serviceable Part)
31	WP489483 Whirlpool Screw
32	WPL 2307049
33	W10853301 Whirlpool Refrigerator Screw
34	W11496481 Whirlpool Refrigerator Water Tube
35	8201597 Whirlpool Inlet Water Fill Tube Kit Filter
