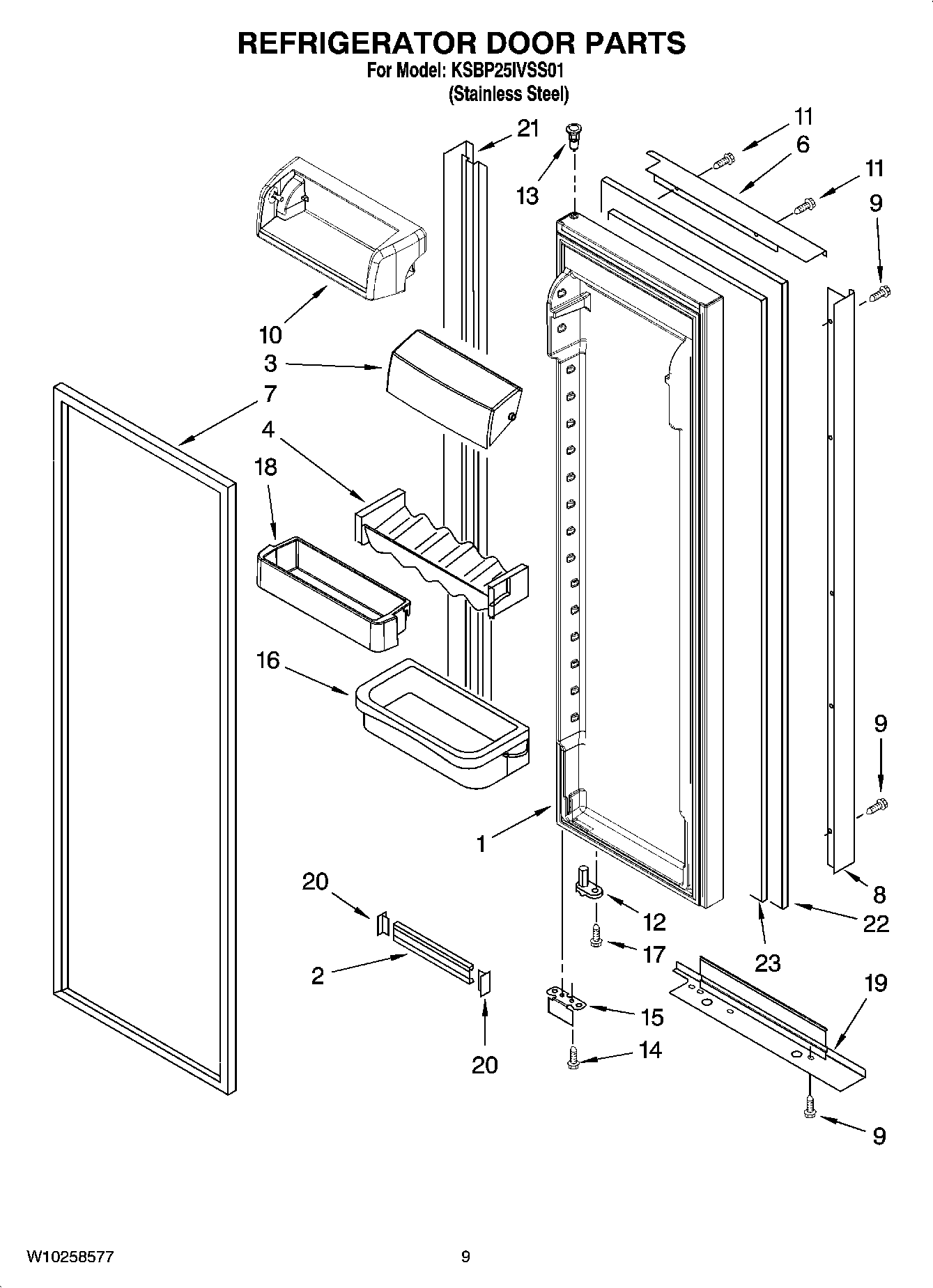

KSBP25IVSS01 06 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	Refrigerator Door (Includes 7) (Black)
2	Trim, Shelf
3	Dairy Door
4	CADDY, CAN
6	Trim, Door Top (Stainless Steel)
7	2306996 Whirlpool Refrigerator Door Gasket
8	Handle (Stainless Steel)
9	WP3196557 Whirlpool Screw
10	WP2223879 Whirlpool Refrigerator Compressor Door
11	Screw
12	CLOSER, DOOR
13	WP2182181 Whirlpool Refrigerator Thimble
14	WP489483 Whirlpool Screw
15	2306940B Whirlpool Refrigerator Bracket
16	WP2223860 Whirlpool Refrigerator Door Shelf Bin
17	WP3400012 Whirlpool Refrigerator Screw
18	WP2224173 Whirlpool Refrigerator Cantilever Bin
19	Trim, Door Bottom (Stainless Steel)
20	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
21	Trim, Hinge Side (Stainless Steel)
22	Panel, Door (Stainless Steel)
23	Board, Filler
