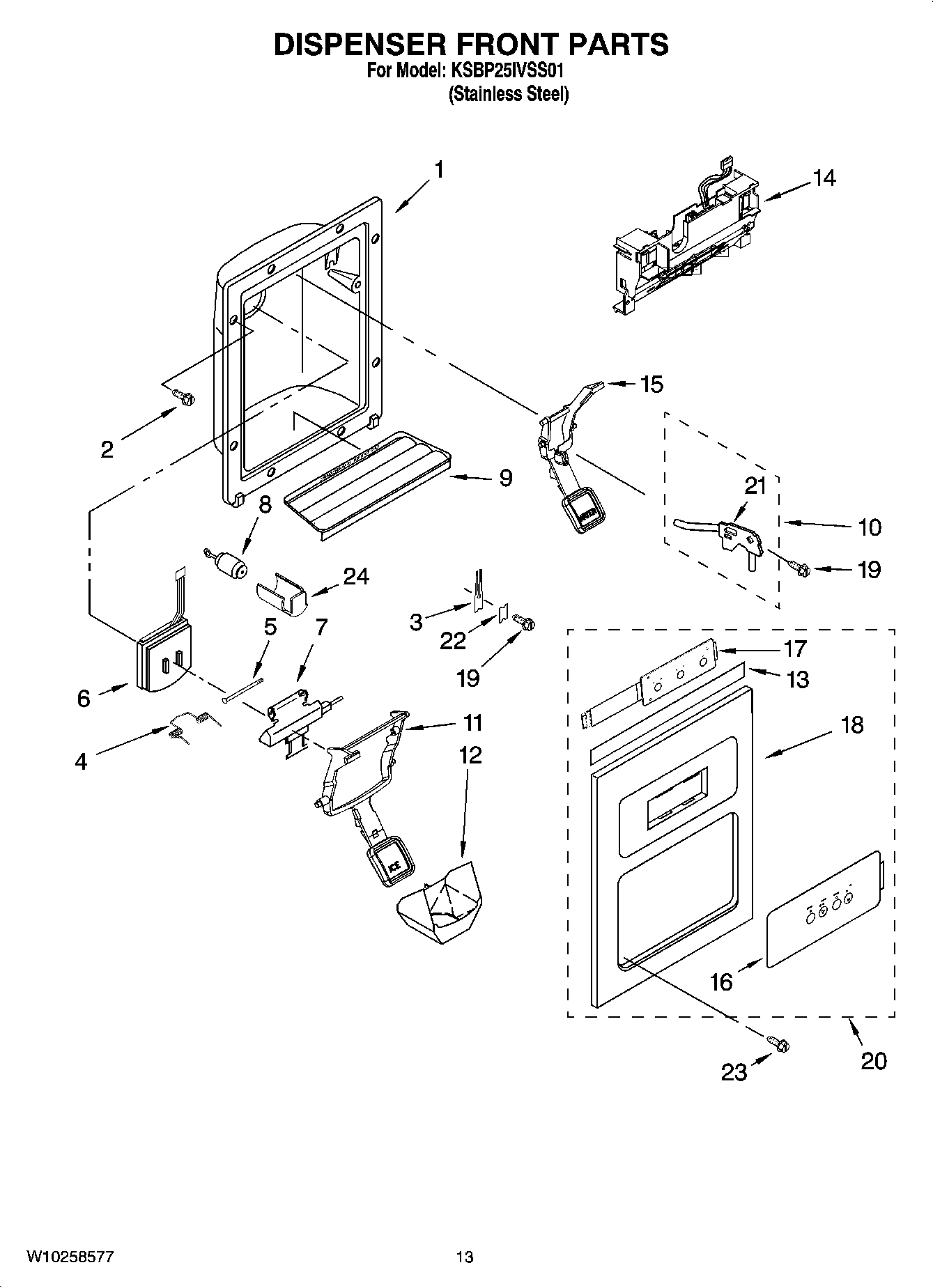

KSBP25IVSS01 08 – DISPENSER FRONT PARTS

Products

PositionProduct
1Housing Dispenser (Not Serviced)
2WP3196557 Whirlpool Screw
3WP2194719 Whirlpool Refrigerator Clip
4WPW10224328 Whirlpool Refrigerator Spring
5WP2196195 Whirlpool Refrigerator Door Pin
6WP2180353 Whirlpool Dispenser Door
7Door Mechanism Assembly
8Delay Mechanism
9WP2206670B Whirlpool Dispenser Tray
10ASSEMBLY, WATER TUBE & BRACKET
11WPW10152854 Whirlpool Refrigerator Dispenser Arm
12WP2180224 Whirlpool Dispenser Funnel Guide
132305571 Whirlpool Gasket Assembly
14Bracket, Control
15WPW10152859 Whirlpool Refrigerator Dispenser Arm
16Overlay, Front Cover (Not Available, Order 20)
17LED Display (Not Available, Order 20)
18Front Cover, Housing (Not Available, Order 20)
19WP3400906 Whirlpool Refrigerator Screw
20Front Cover Assembly (Includes Items 18, 19, 20 & 21) (Black)
21WP2304673 Whirlpool Refrigerator Bracket
22WP2195051 Whirlpool Refrigerator Clip
23WP3400065 Whirlpool Refrigerator Screw
24Sleeve, Delay Mechanism
