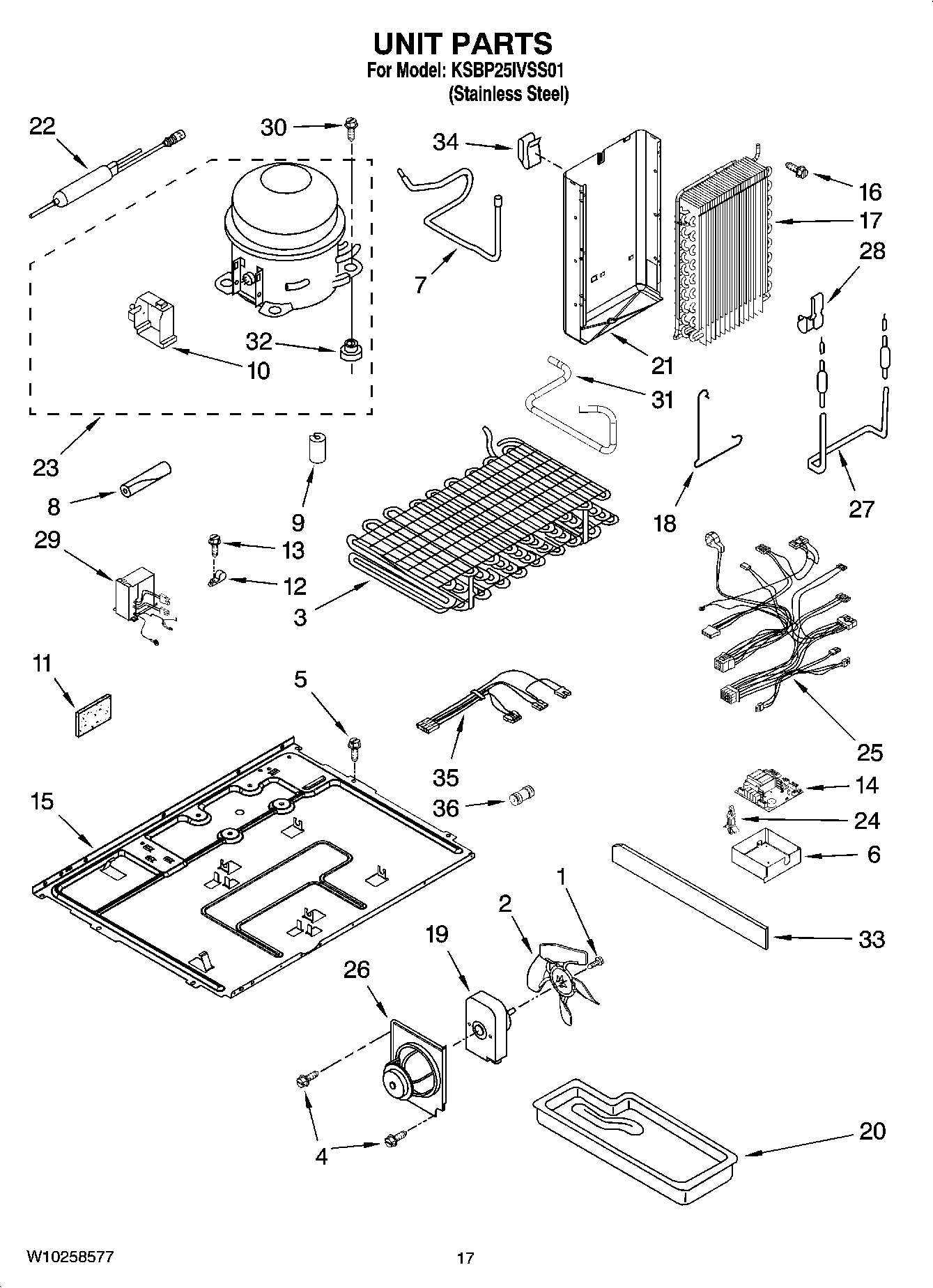

KSBP25IVSS01 11 – UNIT PARTS

KSBP25IVSS01 11 – UNIT PARTS

Written by

in

KSBP25IVSS01 11 – UNIT PARTS

Products

Position	Product
	978030 Whirlpool Refrigerator Valve
	REFRIGERANT CHARGE 6.00 oz. (R-134A)
	VALVE, ACCESS (1/2“)
	WP978025 Whirlpool Refrigerator Valve
	978027 Whirlpool Refrigerator Primary Valve
	978026 Whirlpool Refrigerator Primary Valve
	876764 Whirlpool Refrigerator Primary Valve
	VALVE, ACCESS (5/8“)
	Following Parts Not Illustrated and Optional Parts Not Included
1	WP488234 Whirlpool Air Conditioner Screw
2	WPW10139483 Whirlpool Refrigerator Condenser Fan Blade, 40%
3	ASSEMBLY, CONDENSER
4	WPW10171469 Whirlpool Refrigerator Screw
5	3400524 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
9	W10852725 Whirlpool Refrigerator Grommet
10	2215676 Whirlpool Refrigerator Terminal Cover
11	W11553819 Whirlpool Refrigerator Insulation
12	W11456069 Whirlpool Refrigerator Clamp
13	WPW10141625 Whirlpool Refrigerator Screw Assembly
14	W10219463 Whirlpool Control Board + Core
15	Baseplate
16	WP489478 Whirlpool Refrigerator Screw
17	WP2188823 Whirlpool Refrigerator Evaporator
18	Clamp
19	WP2188874 Whirlpool Refrigerator Condenser Motor
20	Tray, Evaporator
21	SHIELD, HEAT
22	WPW10143759 Whirlpool Dryer Filter
23	W10276644 Whirlpool Refrigerator Compressor
24	2223800 Whirlpool Refrigerator Spacer
25	Harness, Main Control
26	BRACKET, FAN MOUNTING
27	Heater, Defrost
28	W11623163 Whirlpool Refrigerator Clip
29	WPW10154805 Whirlpool Refrigerator Inverter Box
31	Tube, Discharge
32	876811 Whirlpool Grommet
33	2223394 Whirlpool Extension
34	Clip, Heat Shield
35	2187737 Whirlpool Refrigerator Wire Harness
36	WPW10334458 Whirlpool Refrigerator Connector
