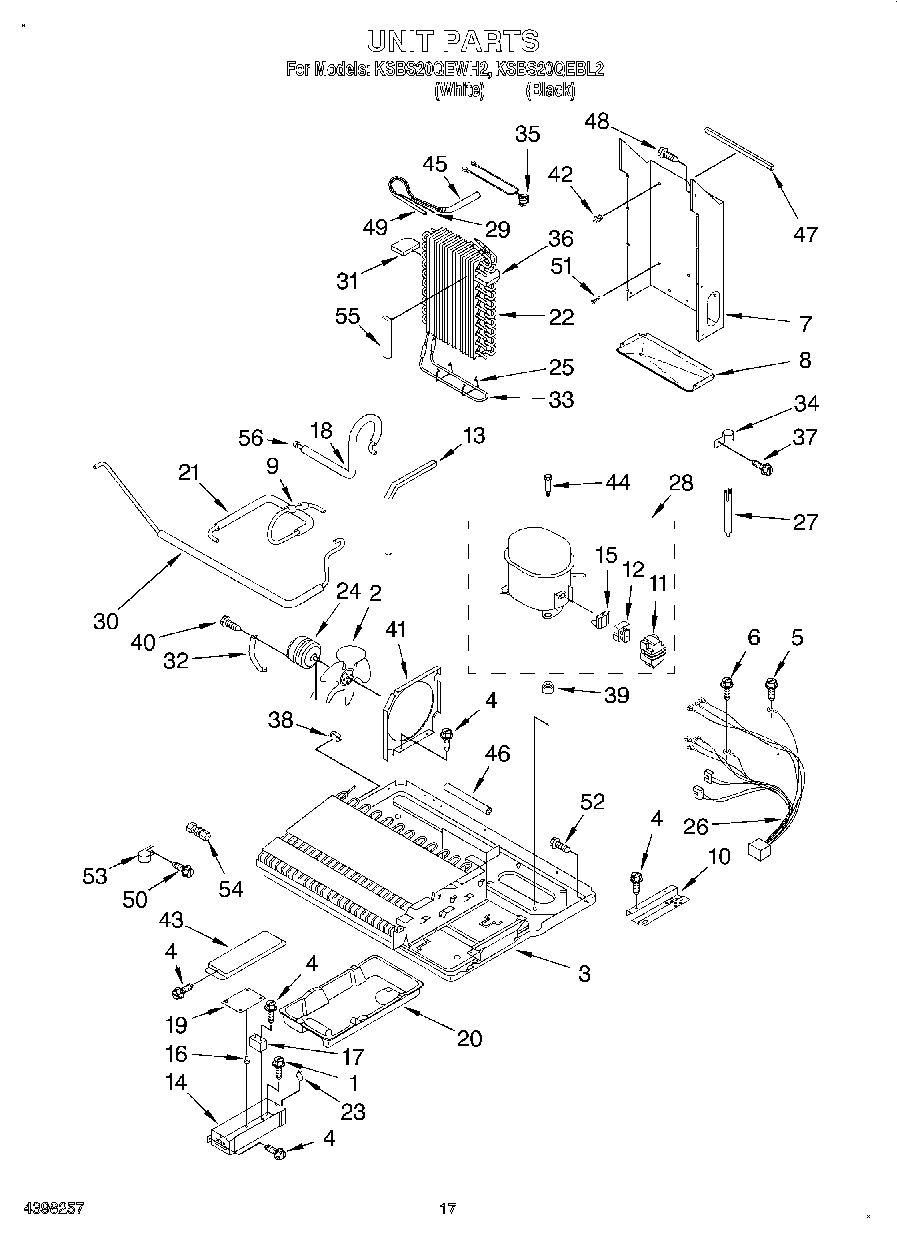

KSBS20QEBL2 10 – UNIT

Products

PositionProduct
2Fan, Blade
3Condenser & Pan Assembly
4WPL 4343861
512992301 Whirlpool Refrigerator Screw
6WPL 4343860
7Heat Shield
8Drain Pan
9Dampner
10Shelf, High Voltage Box
11WPL 4343852
12WP4344040 Whirlpool Refrigerator Overload
13Gasket
14High Voltage Box
15WPW10189190 Whirlpool Start Device
16Support
17WPL 4343851
18Sleeve
19Control
20Drain Pan
21Tube, Discharge
22Evaporator
23Clamp, Wire
24833697 Whirlpool Condenser Fan Motor
25W11673433 Whirlpool Clip
26Harness, Unit
27W10843121 Whirlpool Refrigerator Tube
28W10309994 Whirlpool Refrigerator Compressor
29Heat Exchanger
30Tube, Condenser/ PC Loop
31Block, Evaporator (Left Side)
32Bracket, Fan Motor
33WP12049801 Whirlpool Refrigerator Evaporator Heater
34WPL 4343763
35WP4387503 Whirlpool Refrigerator Bimetal Defrost Thermostat
36Block, Evaporator (Right Side)
37WPL 4343759
38Clip, Condenser
39WPL 4343845
40Screw
41Air Baffle
42Clip, Evaporator
43Cover, High Voltage Box
44WPL 4343847
45Cover, Tubing
46Sleeve
47Foam Seal
48WPL 4343749
49Sleeve
50WP489478 Whirlpool Refrigerator Screw
51Clip, Evaporator
52Screw
53Clip, Water Tube
54Union
55Gasket, Foam
56VALVE, ACCESS (5/8“)
56876764 Whirlpool Refrigerator Primary Valve
56Tube, Suction
56WP978025 Whirlpool Refrigerator Valve
56978027 Whirlpool Refrigerator Primary Valve
56978026 Whirlpool Refrigerator Primary Valve
56VALVE, ACCESS (1/2“)
56978030 Whirlpool Refrigerator Valve
