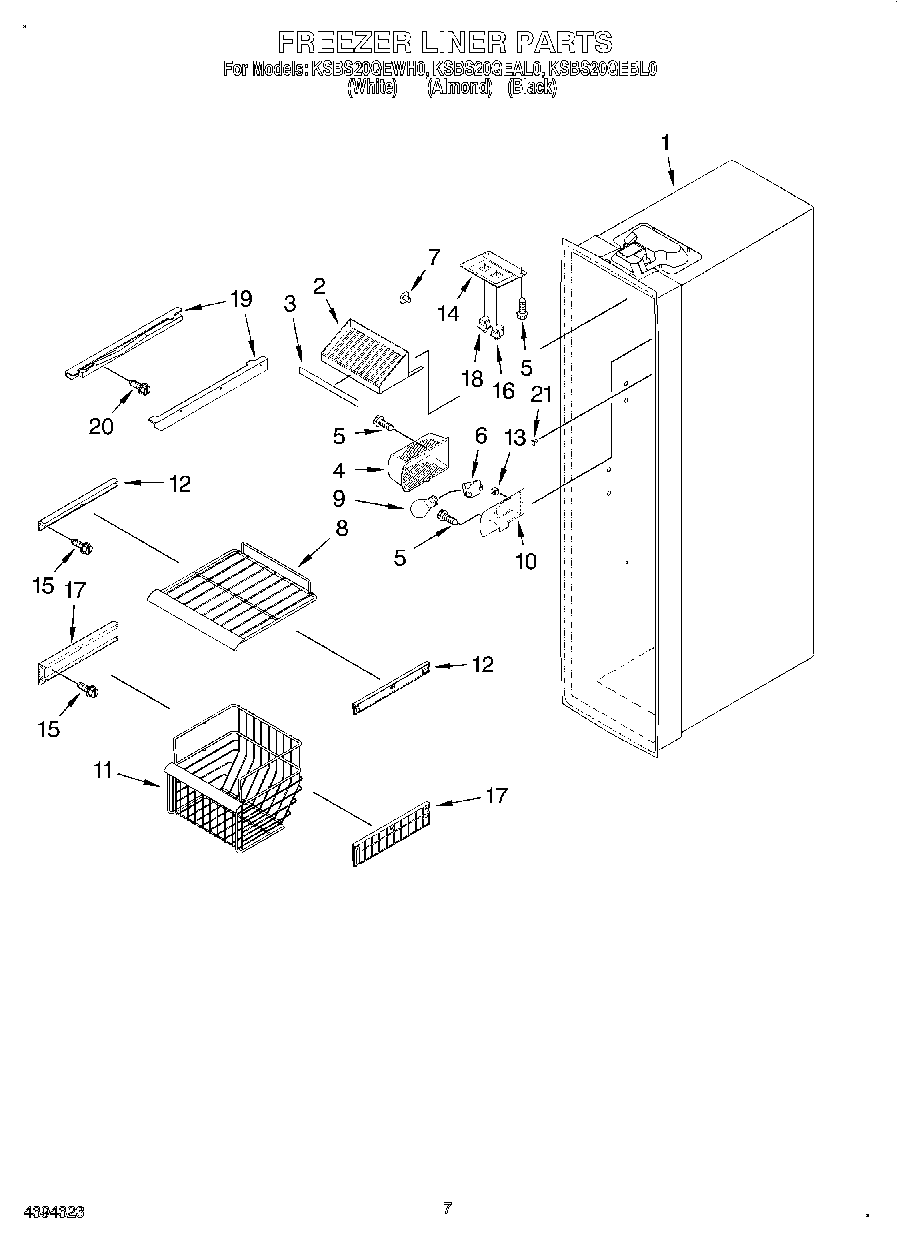

KSBS20QEWH0 04 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	Top Shelf
3	Insert, Top Shelf
4	Light Lens
5	WP489464 Whirlpool Refrigerator Screw
6	Light Socket
7	Support, Stud (2)
8	Shelf (2)
9	W11679940 Whirlpool Refrigerator Light Bulb Assembly
10	Plate, Socket
11	Basket, Slope (2)
12	Shelf Track (Single) (Left Side)
12	Shelf Track (Single) (Right Side)
13	WPL 4343682
14	Cover, Switch
15	WP98165 Whirlpool Screw
16	W11384469 Whirlpool Door Switch
17	Shelf Track (Left Side (2))
17	Shelf Track (Right Side (2))
18	WP4387911 Whirlpool Refrigerator Switch
19	Slide, Ice Container (Right Side)
19	67005375 Whirlpool Refrigerator Glide, Freezer (Left)
20	Screw
21	WPL 4343657
