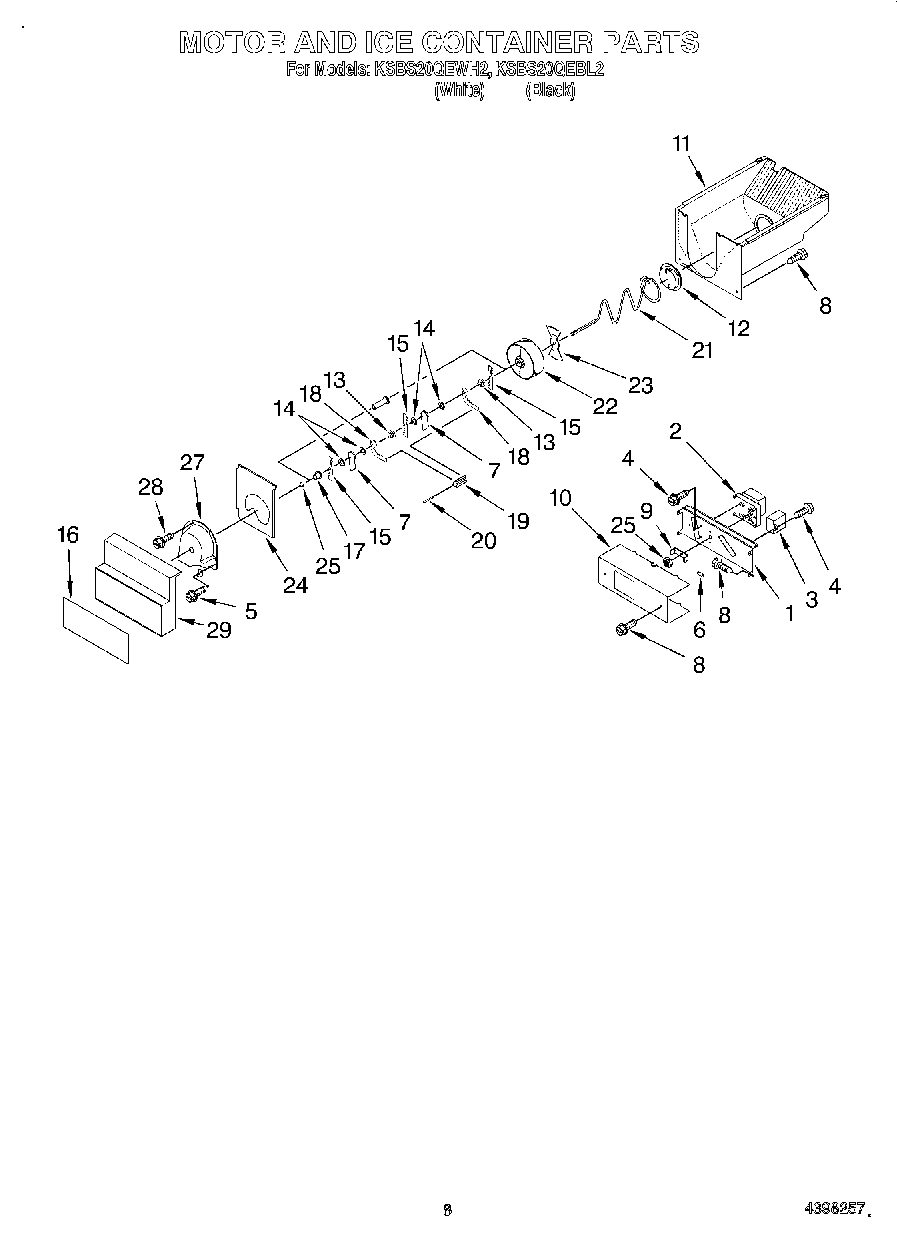

KSBS20QEWH2 05 – MOTOR AND ICE CONTAINER

Products

Position	Product
1	Bracket, Motor
2	Motor, Dispenser
3	WPL 4343851
4	WPW10139210 Whirlpool Screw
5	Screw
6	Clip, Wiring
7	Damper, Ice
8	WP489464 Whirlpool Refrigerator Screw
9	WP10114901 Whirlpool Refrigerator Coupling
10	Cover, Motor
11	Ice Container
12	WPD7749401 Whirlpool Drive Gear
13	Spacer, Step (2)
14	Spacer, Wavered
15	Blade, Rotary
16	Insert, Cover
17	Spacer
18	Blade, Fixed (2)
19	Block, Blade
20	Roll Pin
21	Conveyor
22	WP67002052 Whirlpool Ice Crusher Blade
23	Drive Bar
24	Front, Ice Crusher
25	Nut, Locking
27	Housing, Crusher
28	Screw
29	Front Cover, Ice Container
