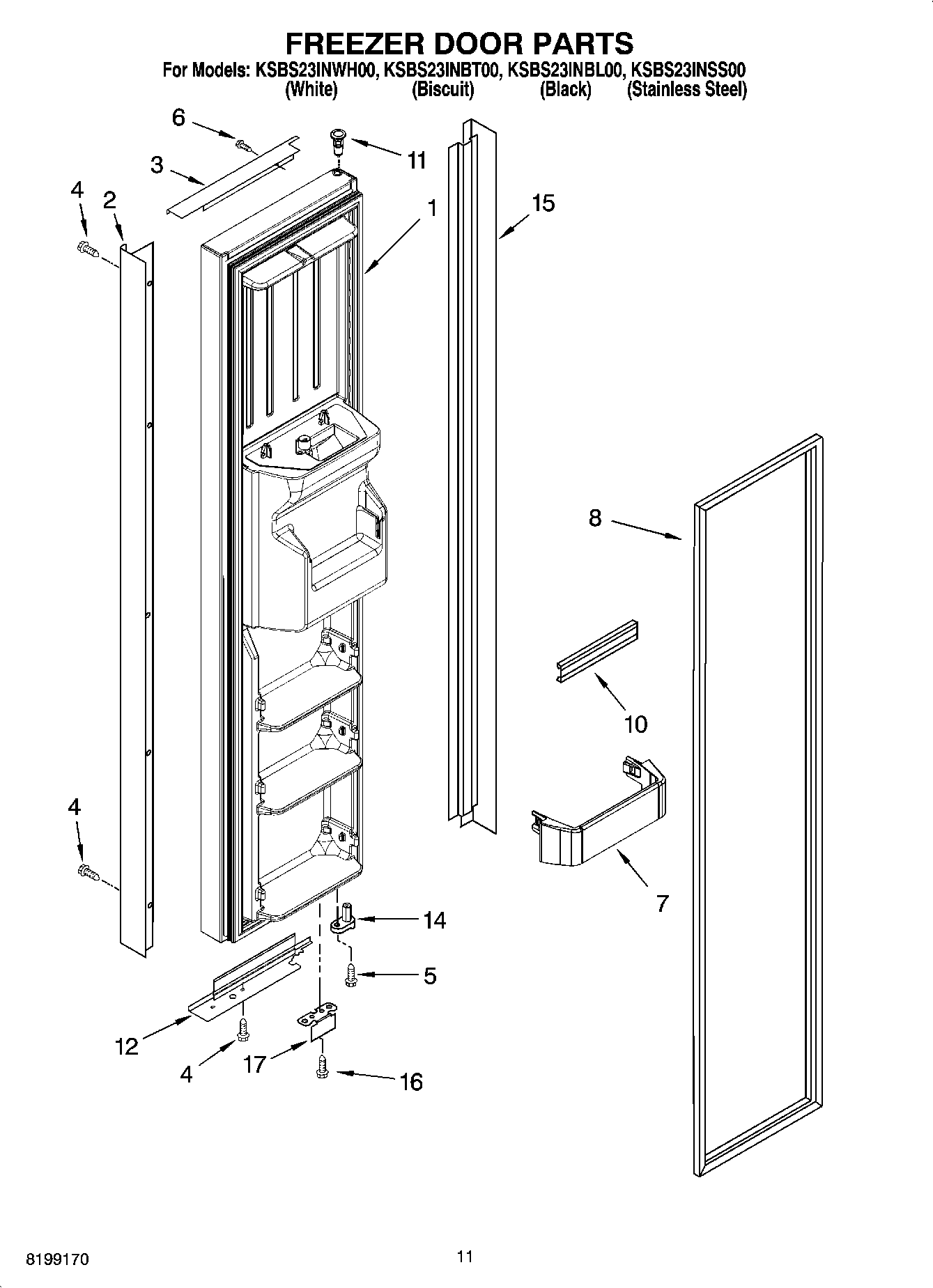

KSBS23INBL00 07 – FREEZER DOOR PARTSadmin2025-04-26T12:13:40+00:00KSBS23INBL00 07 – FREEZER DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Freezer Door (Includes 8 And Dispenser Front Parts) (White) |
| 1 | Freezer Door (Includes 8 And Dispenser Front Parts) (Biscuit) |
| 1 | Freezer Door (Includes 8 And Dispenser Front Parts) (Black) |
| 2 | Handle (Black) |
| 2 | Handle (Biscuit) |
| 2 | Handle (White) |
| 2 | Handle (Stainless Steel) |
| 3 | Trim, Top (Black) |
| 3 | Trim, Top (Biscuit) |
| 3 | Trim, Door Top (Stainless Steel) |
| 3 | Trim, Top (White) |
| 4 | WP3196557 Whirlpool Screw |
| 5 | WP3400012 Whirlpool Refrigerator Screw |
| 6 | Screw |
| 7 | Trivet (3) |
| 8 | GASKET, DOOR (BLACK) |
| 8 | GASKET, DOOR (MIST BEIGE) |
| 10 | WPW10307490 Whirlpool Door Trim Assembly |
| 11 | WP2182181 Whirlpool Refrigerator Thimble |
| 12 | Trim, Bottom (Biscuit) |
| 12 | Trim, Bottom (White) |
| 12 | Trim, Door Bottom (Stainless Steel) |
| 12 | Trim, Bottom (Black) |
| 14 | WP2223752 Whirlpool Refrigerator Door Cam |
| 15 | Trim, Hinge Side (Black) |
| 15 | Trim, Hinge Side (Biscuit) |
| 15 | Trim, Hinge Side (Stainless Steel) |
| 15 | Trim, Hinge Side (White) |
| 16 | WP489483 Whirlpool Screw |
| 17 | 2306940B Whirlpool Refrigerator Bracket |
| 17 | 2306940 Whirlpool Refrigerator Bracket |
