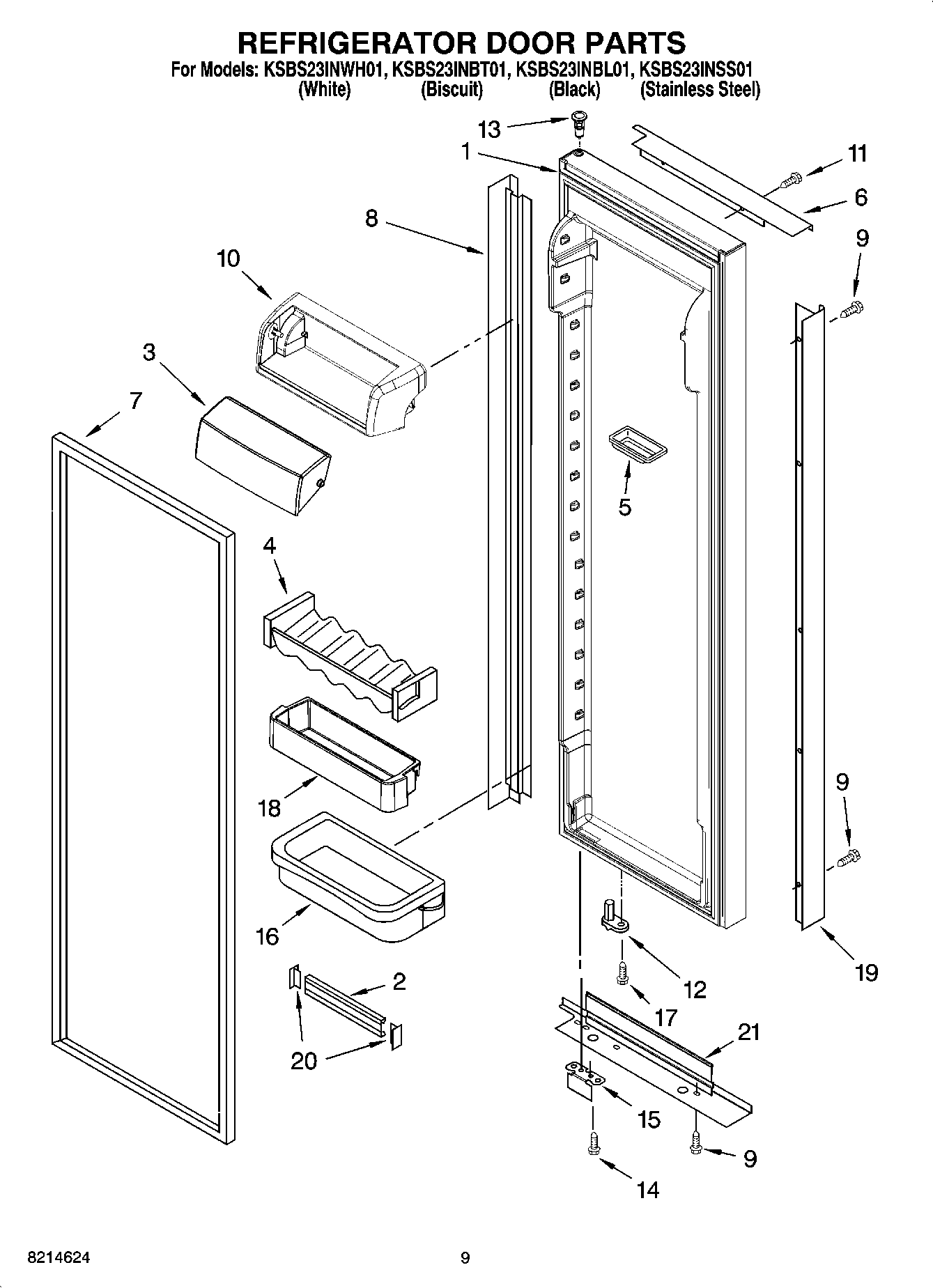

KSBS23INBL01 06 – REFRIGERATOR DOOR PARTSadmin2025-04-26T12:11:28+00:00KSBS23INBL01 06 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1 | Refrigerator Door (Includes 7) (Black) |
| 1 | Refrigerator Door (Includes 7) (White) |
| 1 | Refrigerator Door (Includes 7) (Biscuit) |
| 2 | Trim, Shelf |
| 3 | Dairy Door |
| 4 | CADDY, CAN |
| 5 | Dish, Butter |
| 6 | Trim, Top (Biscuit) |
| 6 | Trim, Top (White) |
| 6 | Trim, Top (Black) |
| 6 | Trim, Door Top (Stainless Steel) |
| 7 | GASKET, DOOR (MIST BEIGE) |
| 7 | GASKET, DOOR (BLACK) |
| 8 | Handle (Black) |
| 8 | Handle (Stainless Steel) |
| 8 | Handle (White) |
| 8 | Handle (Biscuit) |
| 9 | WP3196557 Whirlpool Screw |
| 10 | WP2223879 Whirlpool Refrigerator Compressor Door |
| 11 | Screw |
| 12 | WP2182179 Whirlpool Cam Closer |
| 13 | WP2182181 Whirlpool Refrigerator Thimble |
| 14 | WP489483 Whirlpool Screw |
| 15 | 2306940 Whirlpool Refrigerator Bracket |
| 15 | 2306940B Whirlpool Refrigerator Bracket |
| 16 | WP2223860 Whirlpool Refrigerator Door Shelf Bin |
| 17 | WP3400012 Whirlpool Refrigerator Screw |
| 18 | WP2224173 Whirlpool Refrigerator Cantilever Bin |
| 19 | Trim, Hinge Side (Stainless Steel) |
| 19 | Trim, Hinge Side (Biscuit) |
| 19 | Trim, Hinge Side (White) |
| 19 | Trim, Hinge Side (Black) |
| 20 | WP2156006 Whirlpool Refrigerator Shelf Trim Endcap |
| 21 | Trim, Door Bottom (Stainless Steel) |
| 21 | Trim, Bottom (Black) |
| 21 | Trim, Bottom (Biscuit) |
| 21 | Trim, Bottom (White) |
