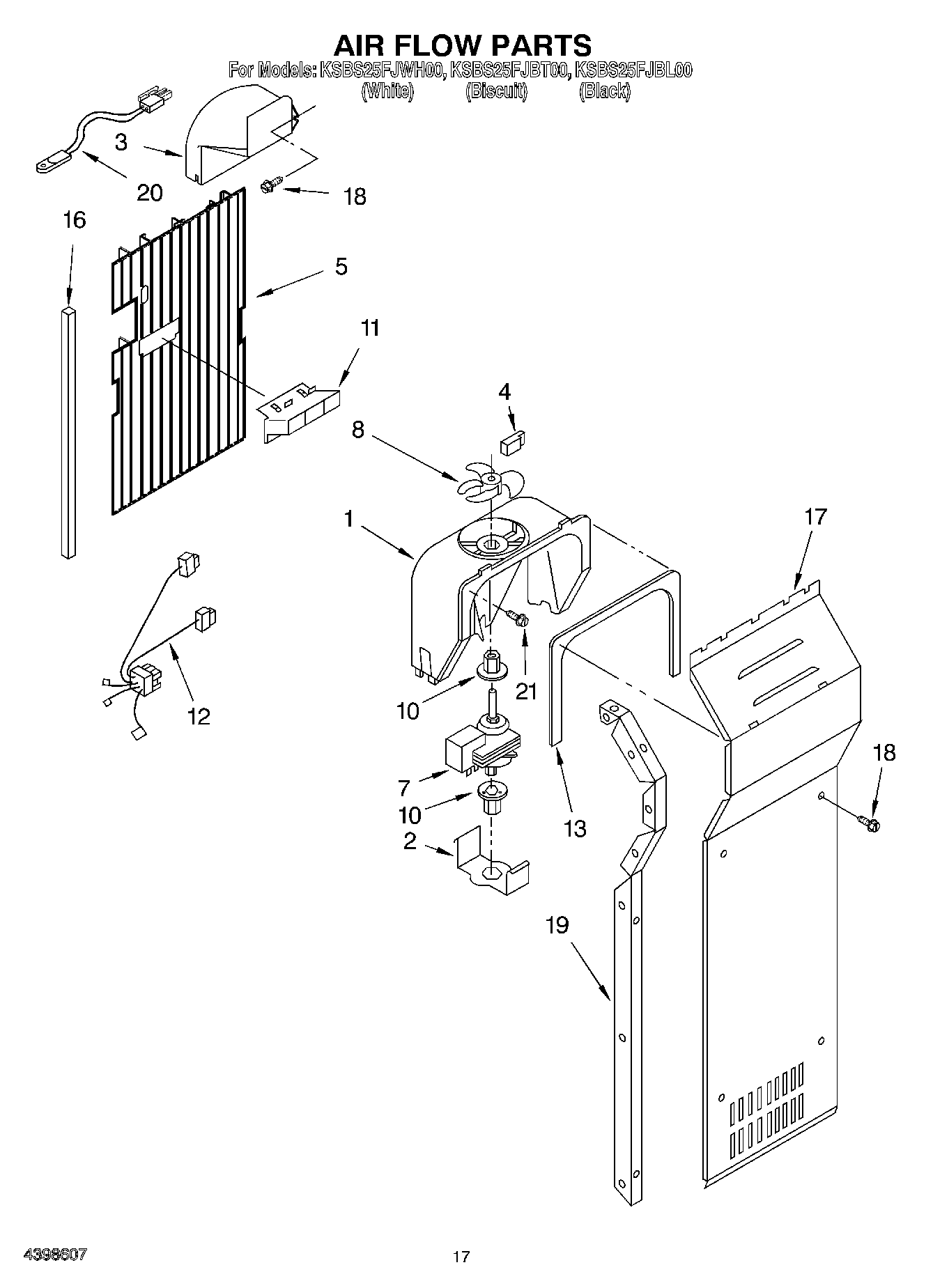

KSBS25FJBL00 10 – AIR FLOW

Products

PositionProduct
1WP2182120 Whirlpool Refrigerator Scroll Fan
2WP2155590 Whirlpool Refrigerator Retainer
3Air Scoop
4Block, Fan Scroll
5Air Duct Freezer
74389144 Whirlpool Refrigerator Evaporator Fan Motor
8WP2169142 Whirlpool Fan Blade
10WP2176759 Whirlpool Refrigerator Grommet
112182146 Whirlpool Refrigerator Duct
12Harness, Fan Evaporator, And Heater, Bi-Metal
13WP2155789 Whirlpool Refrigerator Gasket
16Gasket
17Cover, Evaporator
18WP489464 Whirlpool Refrigerator Screw
19Evaporator, Cover Rail (Left)
19Evaporator, Cover Rail (Right)
20Thermistor
21WP489478 Whirlpool Refrigerator Screw
