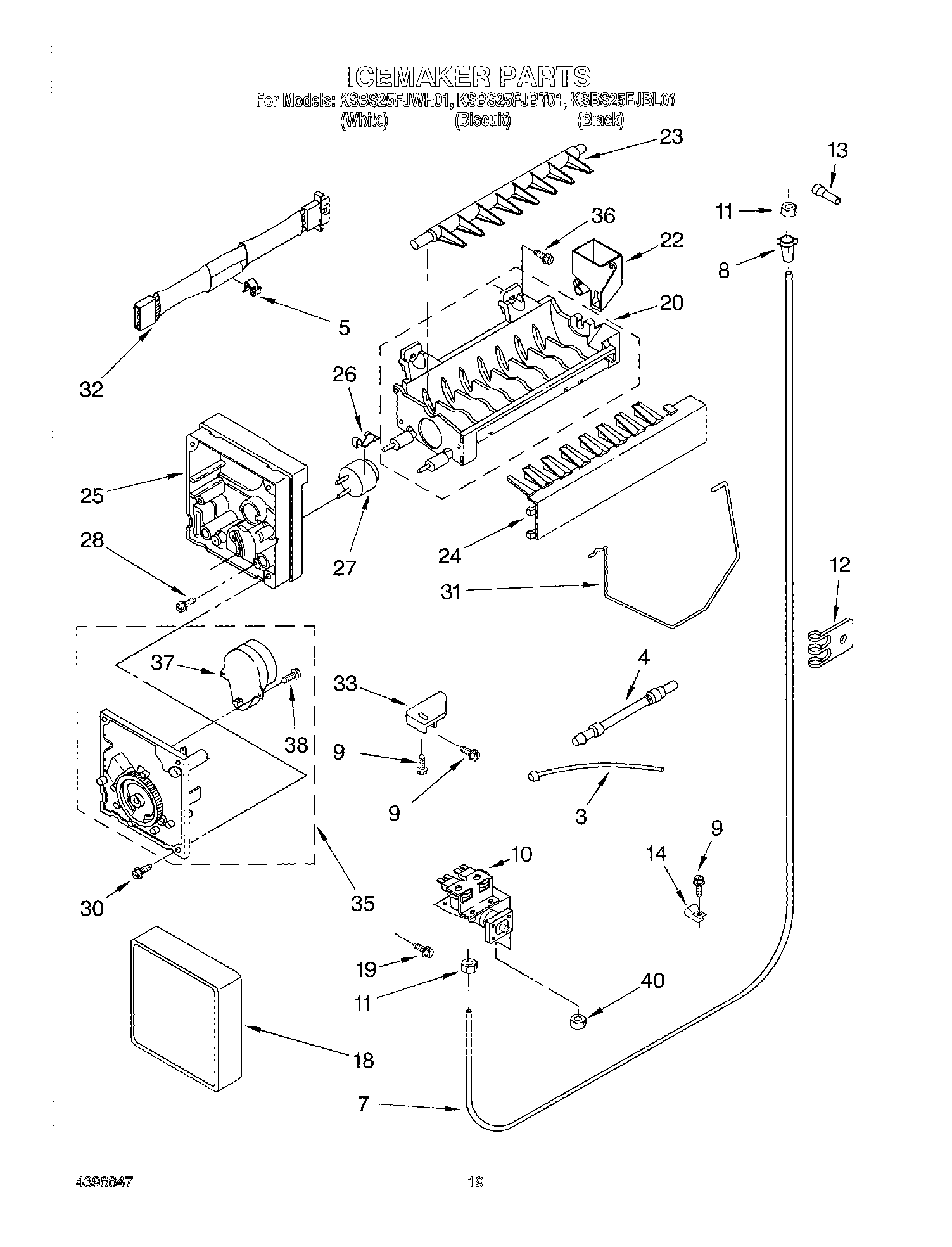

KSBS25FJBT01 12 – ICE MAKER, OPTIONAL
Written by
in
KSBS25FJBT01 12 – ICE MAKER, OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
350942 Whirlpool Spray Paint
4392899 Whirlpool Biscuit Touch-Up Paint
4392901 Whirlpool Biscuit Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
TAPE, VINYL (3/4 X 108“)
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
212643 Whirlpool Refrigerator Permagum Sealer
4317943 Whirlpool Refrigerator Ice Maker Assembly
Ice Crusher Mechanism Assembly
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
Ice Contianer Assembly
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
WP505587 Whirlpool Refrigerator Sealer
3
W11496481 Whirlpool Refrigerator Water Tube
4
Tube, Filter Inlet
5
WP628379 Whirlpool Refrigerator Clip
7
W10823511 Whirlpool Refrigerator Water Tube
8
4387491 Whirlpool Refrigerator Insert
9
WP489478 Whirlpool Refrigerator Screw
10
Valve, Solenoid
11
WP627018 Whirlpool Refrigerator Nut
12
WP488366 Whirlpool Refrigerator Clamp
13
Tube, Water Inlet
14
WP488878 Whirlpool Refrigerator Tube Clamp
18
WPW10289690 Whirlpool Ice Maker Cover
19
WPW10141625 Whirlpool Refrigerator Screw Assembly
20
WPW10190929 Whirlpool Refrigerator Ice Maker Mold
22
WP628356 Whirlpool Refrigerator Fill Cup
23
WP627843 Whirlpool Refrigerator Ejector Arm
24
WP2182124 Whirlpool Refrigerator Stripper Arm
25
WP2195914 Whirlpool Refrigerator Ice Maker Housing
26
WP2315522 Whirlpool Refrigerator Clip
27
Cement Alumilastic)
27
WP627985 Whirlpool Icemaker Cycling Thermostat
28
8533917 Whirlpool Refrigerator Screw
30
WP681249 Whirlpool Screw Assembly
31
W11342242 Whirlpool Refrigerator Ice Level Arm
32
WP2187464 Whirlpool Refrigerator Wire Harness
33
W11500948 Whirlpool Refrigerator Bracket
36
WP488163 Whirlpool Refrigerator Screw
37
W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
38
489136 Whirlpool Refrigerator Screw
40
Nut, Compression
←
