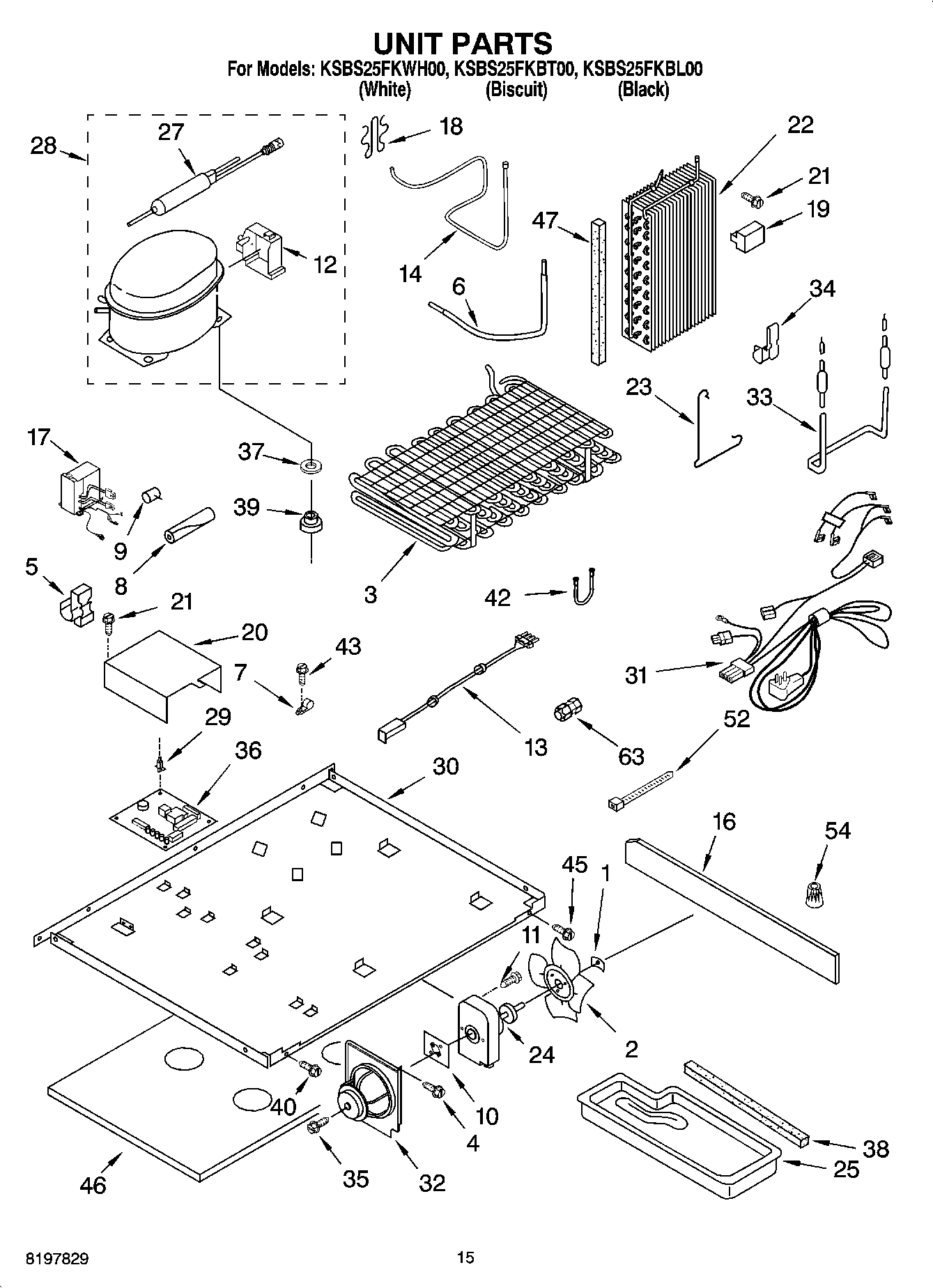

KSBS25FKBT00 09 – UNIT PARTS

KSBS25FKBT00 09 – UNIT PARTS

Written by

in

KSBS25FKBT00 09 – UNIT PARTS

Products

PositionProduct
1WP486692 Whirlpool Refrigerator Nut
2Blade, Fan
3Condenser Assembly
4WP489464 Whirlpool Refrigerator Screw
5Clip, Wire
6Tube, Condenser to Heat Loop
7W11456069 Whirlpool Refrigerator Clamp
8SLEEVE
9WP2158826 Whirlpool Refrigerator Dampener
10Plate
118281197 Whirlpool Refrigerator Screw
122215676 Whirlpool Refrigerator Terminal Cover
13Wire Assembly
14Tube Suction
16Extension, Air Baffle
17W10629033 Whirlpool Refrigerator Inverter Control Box
18Clip, Compressor (4)
19Block, Evaporator
20Housing, Control Board
21WP489478 Whirlpool Refrigerator Screw
22WP2188823 Whirlpool Refrigerator Evaporator
23Clamp
24MOTOR-COND/INCL BLADE&BRKT
25WPW10614158 Whirlpool Refrigerator Evaporator Tray
27W10843121 Whirlpool Refrigerator Tube
28W10841139 Whirlpool Refrigerator Compressor
29WP2203075 Whirlpool Refrigerator Spacer
30Unit Mounting Plate
31Unit, Harness
32Fan, Motor Bracket
33WP2210737 Whirlpool Refrigerator Heater
34Clip
35WP8281196 Whirlpool Screw
36Board, Control
37Washer
384388500 Whirlpool Refrigerator Gasket
39WP2163786 Whirlpool Refrigerator Grommet
40Screw
42Tube, Heat Loop
43WP489491 Whirlpool Refrigerator Screw
45Screw
46Insulation, Mounting Plate
47Side Support
52WPW10339879 Whirlpool Wire Tie
54Wire Connector
63876764 Whirlpool Refrigerator Primary Valve
63VALVE, ACCESS (5/8“)
63Following Parts Not Illustrated and Optional Parts Not Included
63WP4318044 Whirlpool Refrigerator Connector
63978026 Whirlpool Refrigerator Primary Valve
63978027 Whirlpool Refrigerator Primary Valve
63978030 Whirlpool Refrigerator Valve
63WP978025 Whirlpool Refrigerator Valve
63VALVE, ACCESS (1/2“)
63REFRIGERANT CHARGE 6.25 oz. (R-134A)
