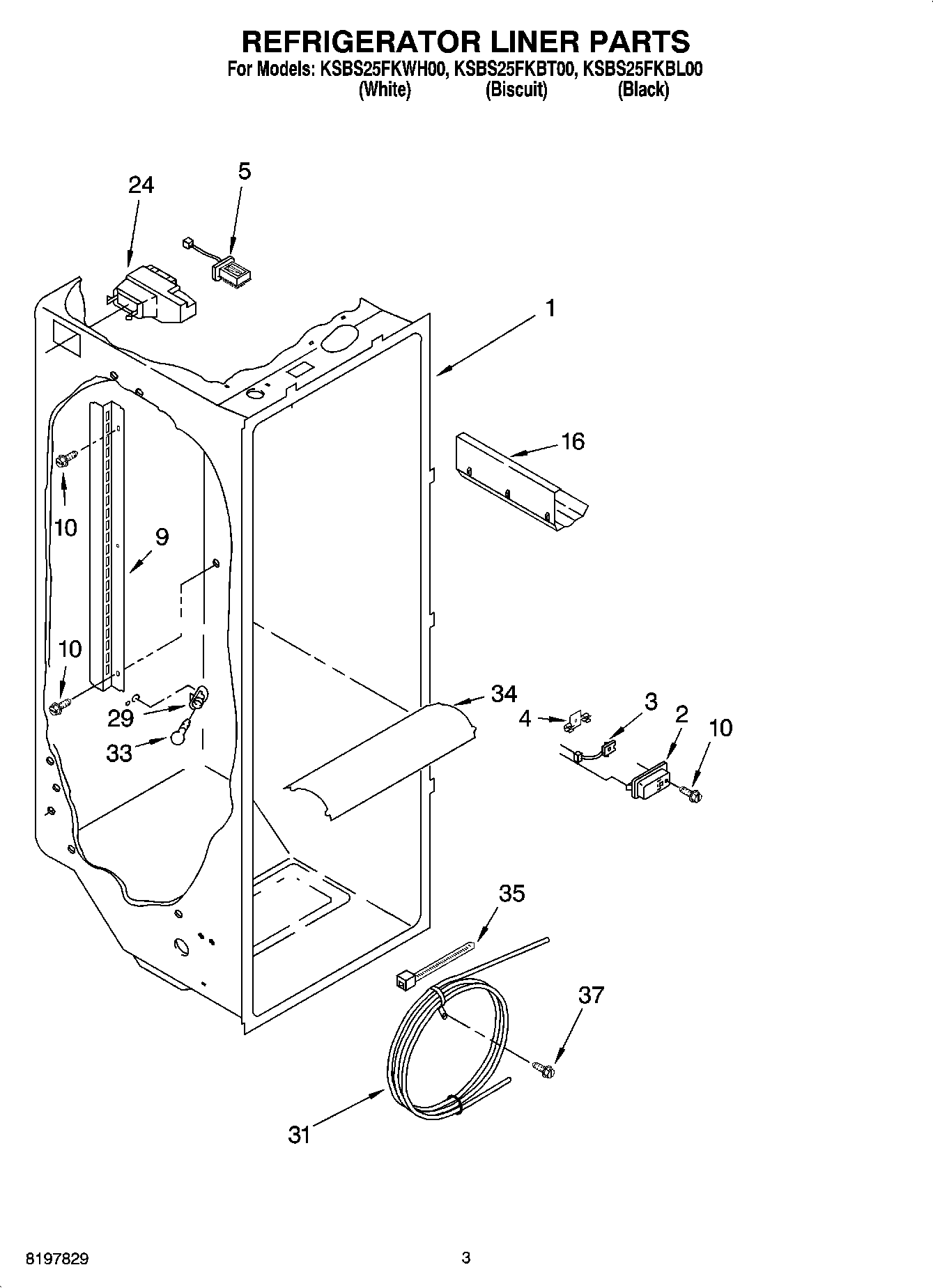

KSBS25FKWH00 02 – REFRIGERATOR LINER PARTS

KSBS25FKWH00 02 – REFRIGERATOR LINER PARTS

Written by

in

KSBS25FKWH00 02 – REFRIGERATOR LINER PARTS

Products

PositionProduct
1Liner (Not A Serviceable Part)
21116793 Whirlpool Refrigerator Cover
3WP2188820 Whirlpool Refrigerator Thermistor
4Clip, Thermistor
5WP2220377 Whirlpool Refrigerator Air Baffle
9Ladder, Shelf
16W10777924 Whirlpool Refrigerator Wine Rack
24Air Diffuser Assembly
294387478 Whirlpool Refrigerator Light Socket
31WP2256126 Whirlpool Refrigerator Reservoir
33RANGE ONLY 40W 120V APPL BULB
34Light Lens
35WPW10339879 Whirlpool Wire Tie
37WP489478 Whirlpool Refrigerator Screw
