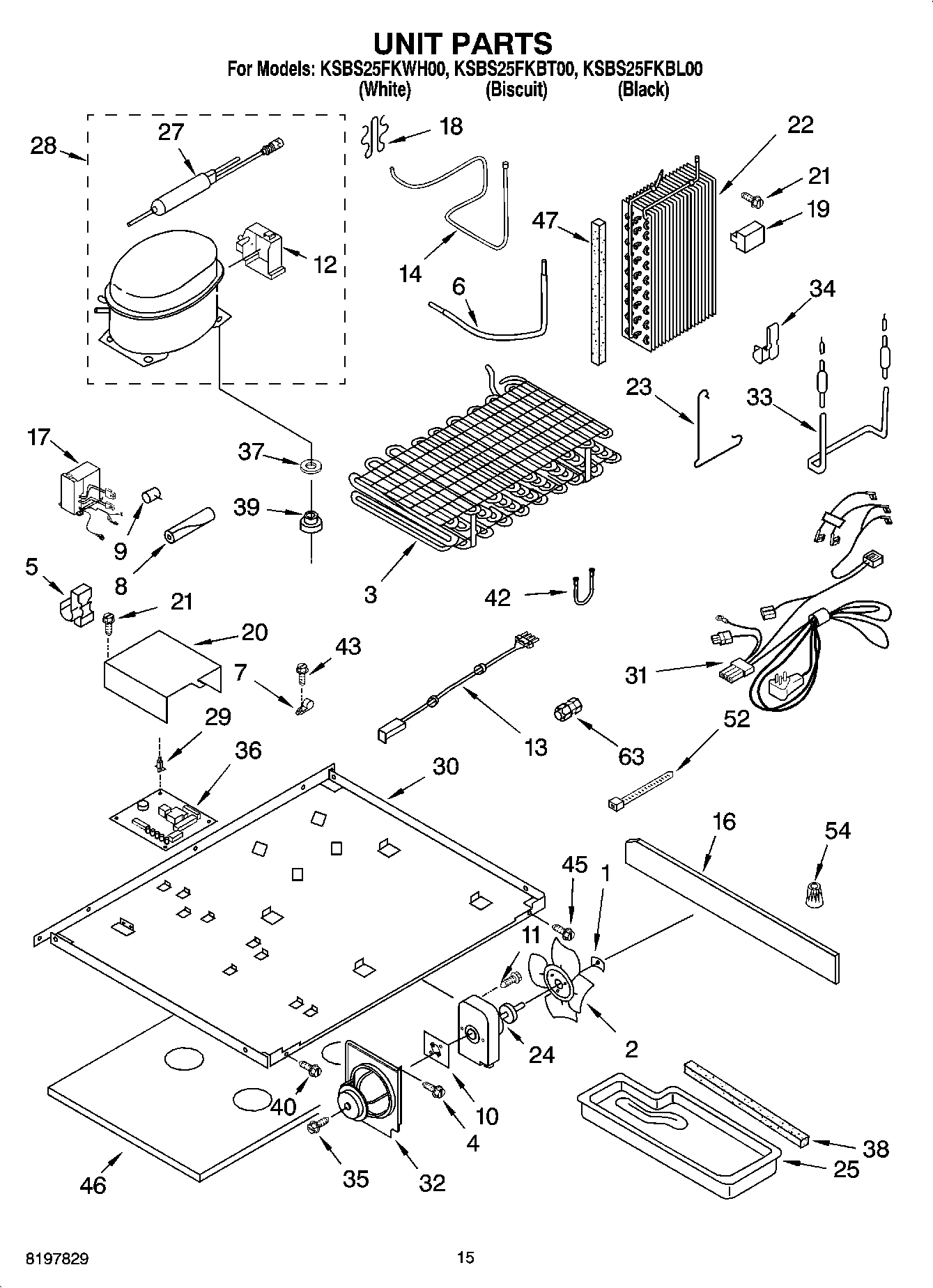

KSBS25FKWH00 09 – UNIT PARTS

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	Clip, Wire
6	Tube, Condenser to Heat Loop
7	W11456069 Whirlpool Refrigerator Clamp
8	SLEEVE
9	WP2158826 Whirlpool Refrigerator Dampener
10	Plate
11	8281197 Whirlpool Refrigerator Screw
12	2215676 Whirlpool Refrigerator Terminal Cover
13	Wire Assembly
14	Tube Suction
16	Extension, Air Baffle
17	W10629033 Whirlpool Refrigerator Inverter Control Box
18	Clip, Compressor (4)
19	Block, Evaporator
20	Housing, Control Board
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	MOTOR-COND/INCL BLADE&BRKT
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
27	W10843121 Whirlpool Refrigerator Tube
28	W10841139 Whirlpool Refrigerator Compressor
29	WP2203075 Whirlpool Refrigerator Spacer
30	Unit Mounting Plate
31	Unit, Harness
32	Fan, Motor Bracket
33	WP2210737 Whirlpool Refrigerator Heater
34	Clip
35	WP8281196 Whirlpool Screw
36	Board, Control
37	Washer
38	4388500 Whirlpool Refrigerator Gasket
39	WP2163786 Whirlpool Refrigerator Grommet
40	Screw
42	Tube, Heat Loop
43	WP489491 Whirlpool Refrigerator Screw
45	Screw
46	Insulation, Mounting Plate
47	Side Support
52	WPW10339879 Whirlpool Wire Tie
54	Wire Connector
63	876764 Whirlpool Refrigerator Primary Valve
63	VALVE, ACCESS (5/8``)
63	Following Parts Not Illustrated and Optional Parts Not Included
63	WP4318044 Whirlpool Refrigerator Connector
63	978026 Whirlpool Refrigerator Primary Valve
63	978027 Whirlpool Refrigerator Primary Valve
63	978030 Whirlpool Refrigerator Valve
63	WP978025 Whirlpool Refrigerator Valve
63	VALVE, ACCESS (1/2``)
63	REFRIGERANT CHARGE 6.25 oz. (R-134A)
