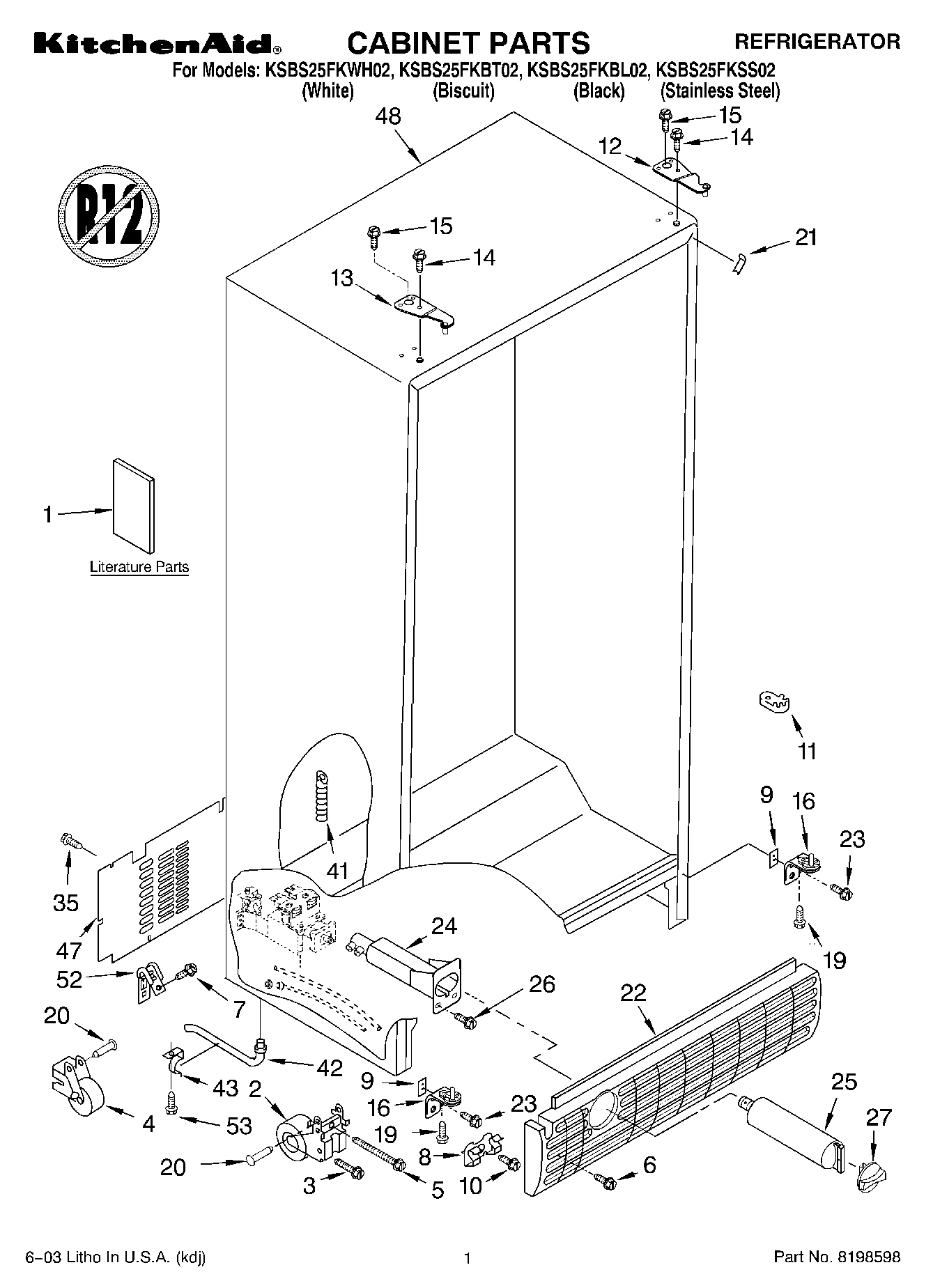

KSBS25FKWH02 01 – CABINET PARTS

KSBS25FKWH02 01 – CABINET PARTS

Written by

in

KSBS25FKWH02 01 – CABINET PARTS

Products

PositionProduct
LITERATURE PARTS
1Literature Parts (Energy Label)
1Literature Parts (Use & Care Guide)
1Literature Parts (Service & Wiring Sheet)
1Modular Icemaker Service Sheet
2Front Roller (2)
3Bolt
4Roller (Rear) (2)
5Bolt
6WPW10141625 Whirlpool Refrigerator Screw Assembly
8Clip, Grille
9WP2181911 Whirlpool Refrigerator Shim
10Screw
11WPW10329686 Whirlpool Door Cam Black
122307008AP Whirlpool Refrigerator Hinge
122307008B Whirlpool Refrigerator Butt Hinge
122307008T Whirlpool Refrigerator Butt Hinge
132307007B Whirlpool Refrigerator Butt Hinge
132307007AP Whirlpool Refrigerator Hinge
132307007T Whirlpool Refrigerator Butt Hinge
143400108 Whirlpool Refrigerator Screw
15W10853301 Whirlpool Refrigerator Screw
16Hinge & Cam Assy.
19W10856122 Whirlpool Refrigerator Screw
20W11594405 Whirlpool Axle
21Filler, Wrapper (Black)
21Filler, Wrapper (Biscuit)
21Filler, Wrapper (White)
22Grille (White)
22Grille (Biscuit)
22Grille (Black)
23WP489497 Whirlpool Screw
24WP2199840 Whirlpool Refrigerator Housing
25EDR5RXD1 Whirlpool Refrigerator Ice and Water Filter 5 (Pink)
26WP489478 Whirlpool Refrigerator Screw
27WP2186494W Whirlpool Water Filter Cap
27WP2186494T Whirlpool Water Filter Cap
27WP2186494B Whirlpool Refrigerator Filter Cap
35WP489464 Whirlpool Refrigerator Screw
41W11566763 Whirlpool Fitting
42Extension Tube
43WP1108439 Whirlpool Refrigerator Clip
47Cover, Unit
48Cabinet (Not A Serviceable Part)
52549193 Whirlpool Refrigerator Power Clamp
