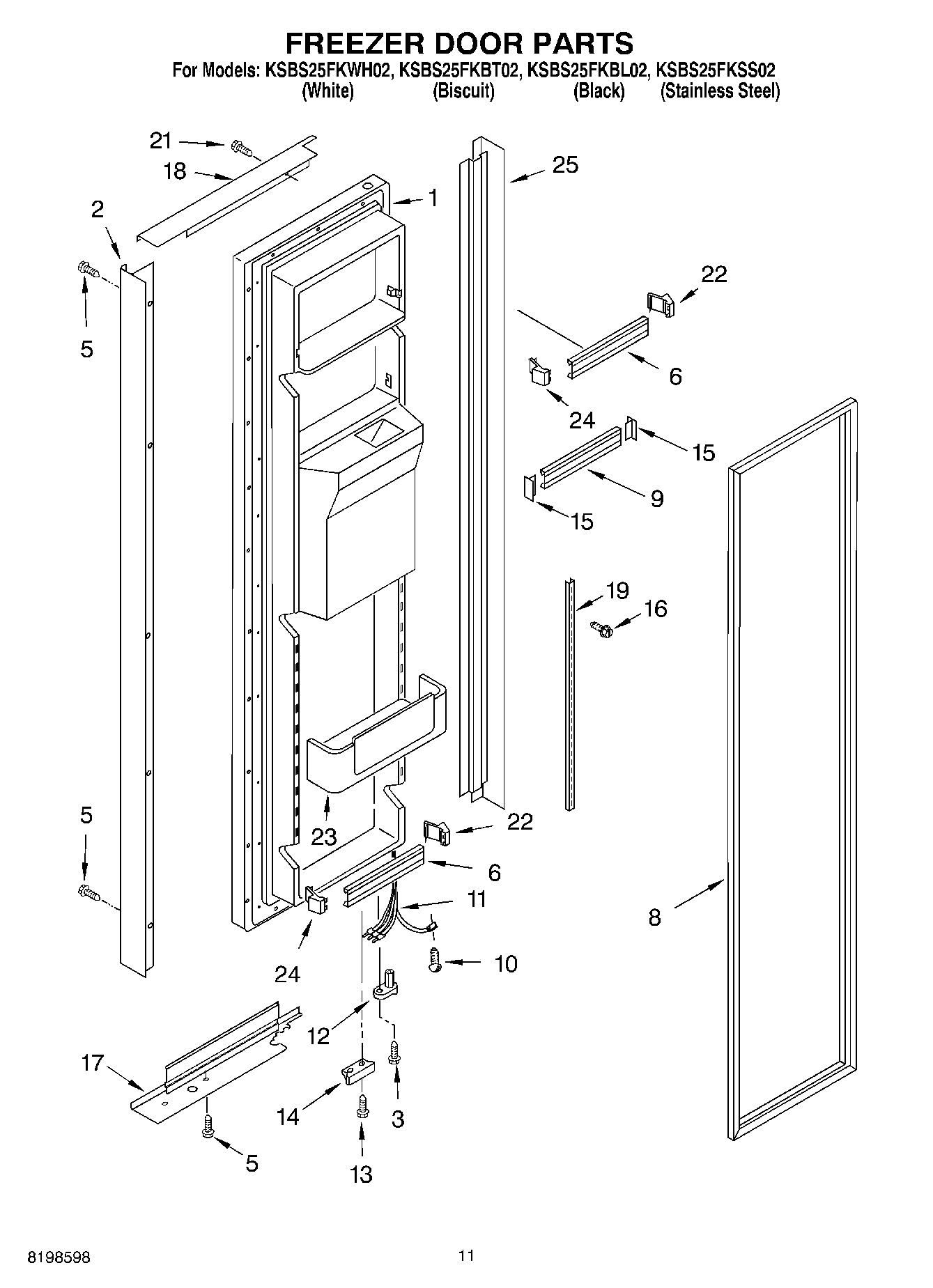

KSBS25FKWH02 07 – FREEZER DOOR PARTS

Products

Position	Product
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (White)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Biscuit)
1	Freezer Door (Includes Item 8 And Dispenser Front Parts) (Black)
2	Handle (White)
2	Handle (Biscuit)
2	Handle (Stainless Steel)
2	Handle (Black)
3	WP3400012 Whirlpool Refrigerator Screw
5	WP3196557 Whirlpool Screw
6	Trim, Door Shelf
8	Door Gasket, Magnetic (Black)
8	Door Gasket, Magnetic (Mist Beige)
9	Trim, Door Shelf
10	WP489128 Whirlpool Refrigerator Screw
11	Wiring Harness
12	WP2182179 Whirlpool Cam Closer
13	WP489483 Whirlpool Screw
14	Bracket, Door Stop (Chrome)
14	Bracket, Door Stop (Black)
15	WP2156006 Whirlpool Refrigerator Shelf Trim Endcap
17	Trim, Door (Bottom) (Black)
17	Trim, Door (Bottom) (Biscuit)
17	Trim, Door (Bottom) (White)
17	Trim, Door-Bottom (Stainless Steel)
18	Trim, Door (Top) (Black)
18	Trim, Door-Top (Stainless Steel)
18	Trim, Door (Top) (White)
18	Trim, Door (Top) (Biscuit)
19	Ladder, Shelf Assembly (2)
21	Screw
22	ENDCAP
23	Bin, Door (2)
24	WP2195917K Whirlpool Refrigerator Endcap
25	Trim, Hinge-Side (White)
25	Trim, Hinge-Side (Stainless Steel)
25	Trim, Hinge-Side (Black)
25	Trim, Hinge-Side (Biscuit)
