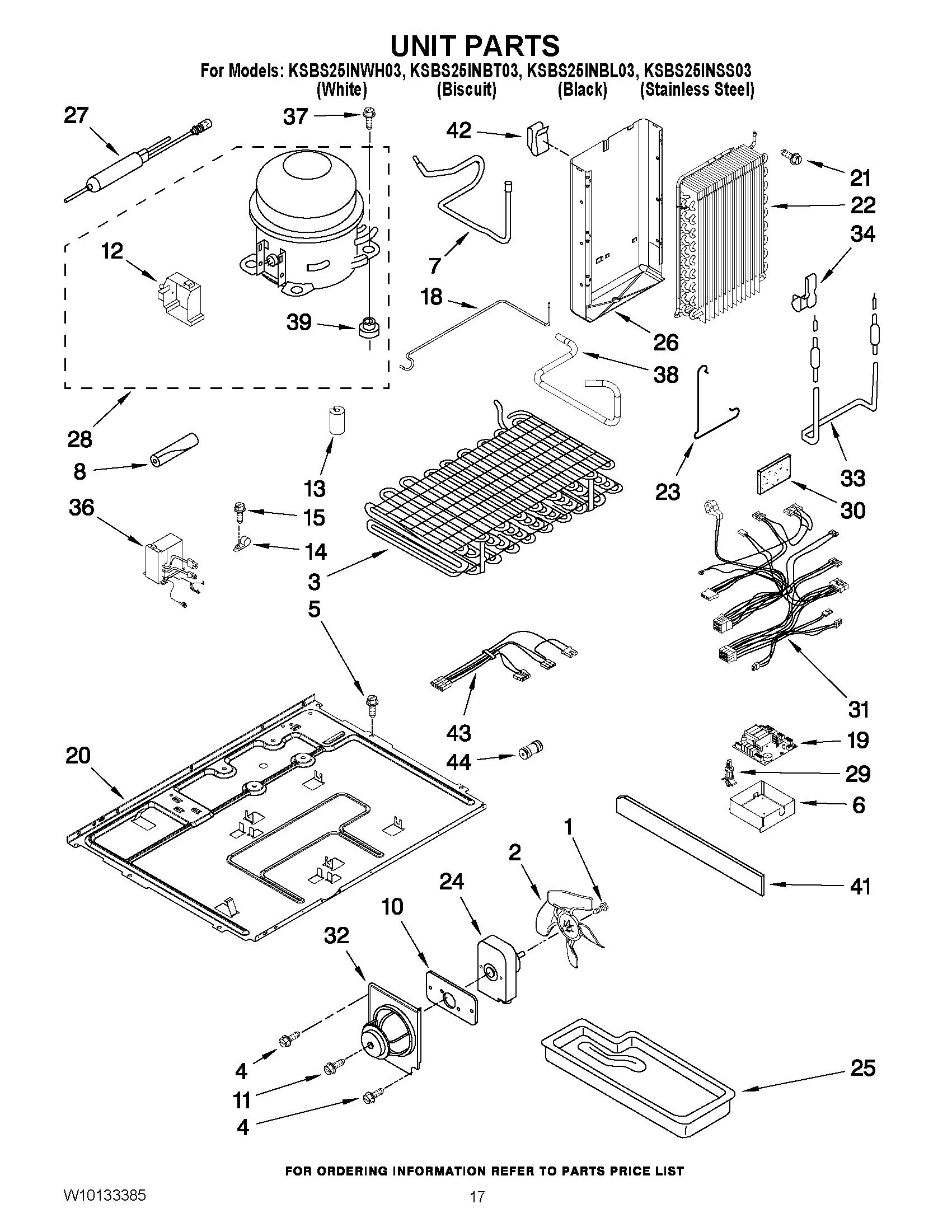

KSBS25INBL03 11 – UNIT PARTS

Products

Position	Product
NI	WP978025 Whirlpool Refrigerator Valve
NI	VALVE, ACCESS (1/2“)
NI	978030 Whirlpool Refrigerator Valve
NI	978027 Whirlpool Refrigerator Primary Valve
NI	978026 Whirlpool Refrigerator Primary Valve
NI	876764 Whirlpool Refrigerator Primary Valve
NI	CABINET (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (5/8“)
1	WP488234 Whirlpool Air Conditioner Screw
2	W11458267 Whirlpool Refrigerator Fan Blade
3	W10193018 Whirlpool Refrigerator Condenser
4	8281197 Whirlpool Refrigerator Screw
5	3400524 Whirlpool Refrigerator Screw
6	Housing, Control Board
7	W10528579 Whirlpool Refrigerator Tube
8	SLEEVE
10	Plate
11	WP8281196 Whirlpool Screw
12	2215676 Whirlpool Refrigerator Terminal Cover
13	W10852725 Whirlpool Refrigerator Grommet
14	W11456069 Whirlpool Refrigerator Clamp
15	WPW10141625 Whirlpool Refrigerator Screw Assembly
18	Tube, Condenser to Heat Loop
19	W10219463 Whirlpool Control Board + Core
20	Baseplate
21	WP489478 Whirlpool Refrigerator Screw
22	WP2188823 Whirlpool Refrigerator Evaporator
23	Clamp
24	W10124096 Whirlpool Refrigerator Condenser Fan Motor Kit with Blade
25	Tray, Evaporator
26	SHIELD, HEAT
27	WPW10143759 Whirlpool Dryer Filter
28	8201675 Whirlpool Refrigerator Compressor
29	2223800 Whirlpool Refrigerator Spacer
30	W11553819 Whirlpool Refrigerator Insulation
31	Harness, Main Control
32	BRACKET, FAN MOUNTING
33	WP2210737 Whirlpool Refrigerator Heater
34	W11623163 Whirlpool Refrigerator Clip
36	W10629033 Whirlpool Refrigerator Inverter Control Box
37	876811 Whirlpool Grommet
38	Tube, Discharge
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	W11661108 Whirlpool Grommet
41	2223394 Whirlpool Extension
42	Clip, Heat Shield
43	2187737 Whirlpool Refrigerator Wire Harness
44	WP4373559 Whirlpool Fitting
